Using Modules Installation and Maintenance

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 307

Adding a Connector Interface

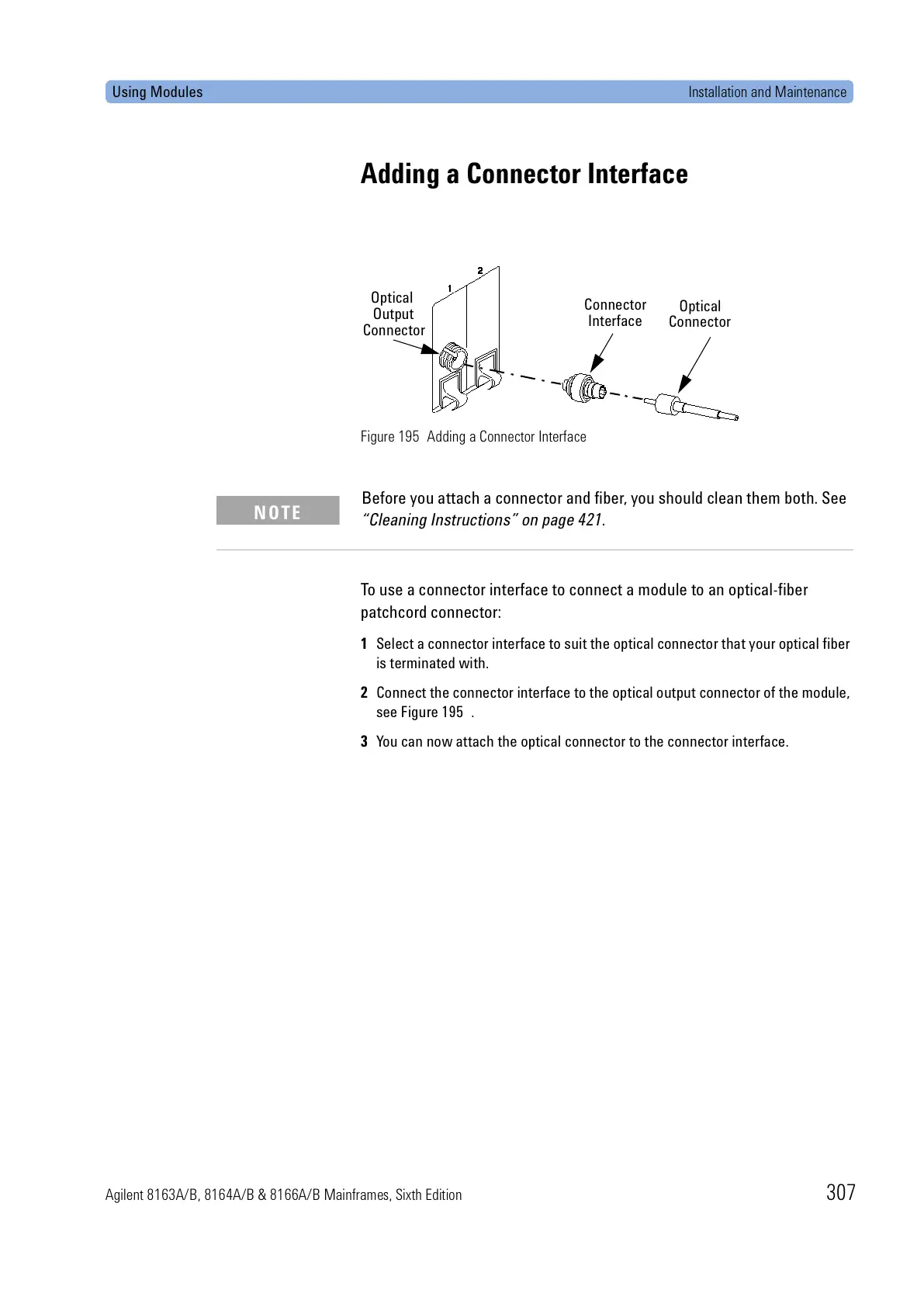

Figure 195 Adding a Connector Interface

To use a connector interface to connect a module to an optical-fiber

patchcord connector:

1 Select a connector interface to suit the optical connector that your optical fiber

is terminated with.

2 Connect the connector interface to the optical output connector of the module,

see Figure 195 .

3 You can now attach the optical connector to the connector interface.

Optical

Connector

Interface

Optical

Output

Connector

Before you attach a connector and fiber, you should clean them both. See

“Cleaning Instructions” on page 421.
