Mainframes Error Messages

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 383

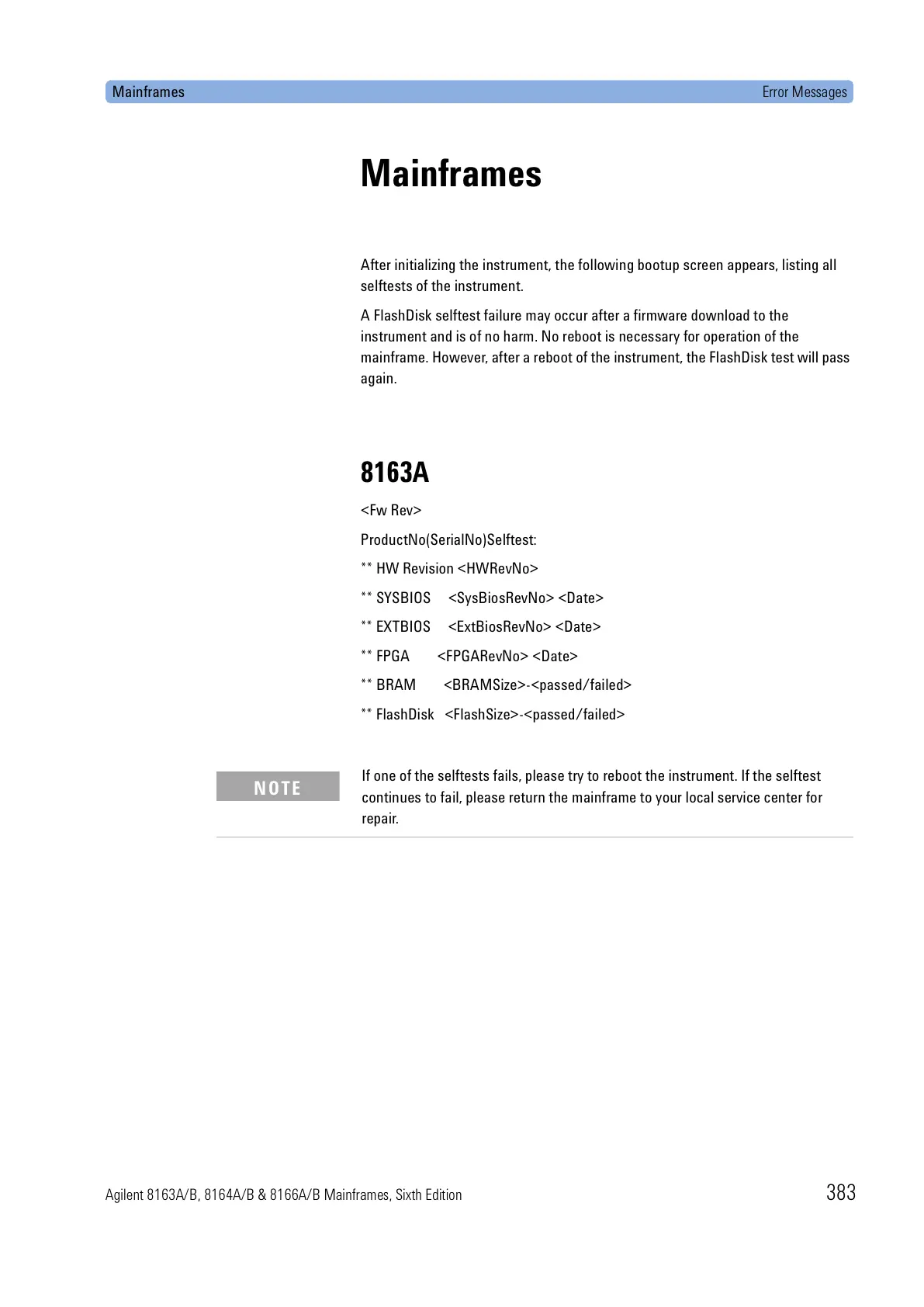

Mainframes

After initializing the instrument, the following bootup screen appears, listing all

selftests of the instrument.

A FlashDisk selftest failure may occur after a firmware download to the

instrument and is of no harm. No reboot is necessary for operation of the

mainframe. However, after a reboot of the instrument, the FlashDisk test will pass

again.

8163A

ProductNo(SerialNo)Selftest:

** HW Revision <HWRevNo>

** SYSBIOS <SysBiosRevNo> <Date>

** EXTBIOS <ExtBiosRevNo> <Date>

** FPGA <FPGARevNo> <Date>

** BRAM <BRAMSize>-<passed/failed>

** FlashDisk <FlashSize>-<passed/failed>

If one of the selftests fails, please try to reboot the instrument. If the selftest

continues to fail, please return the mainframe to your local service center for

repair.
