Getting Started A Description of the User Interface

40 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

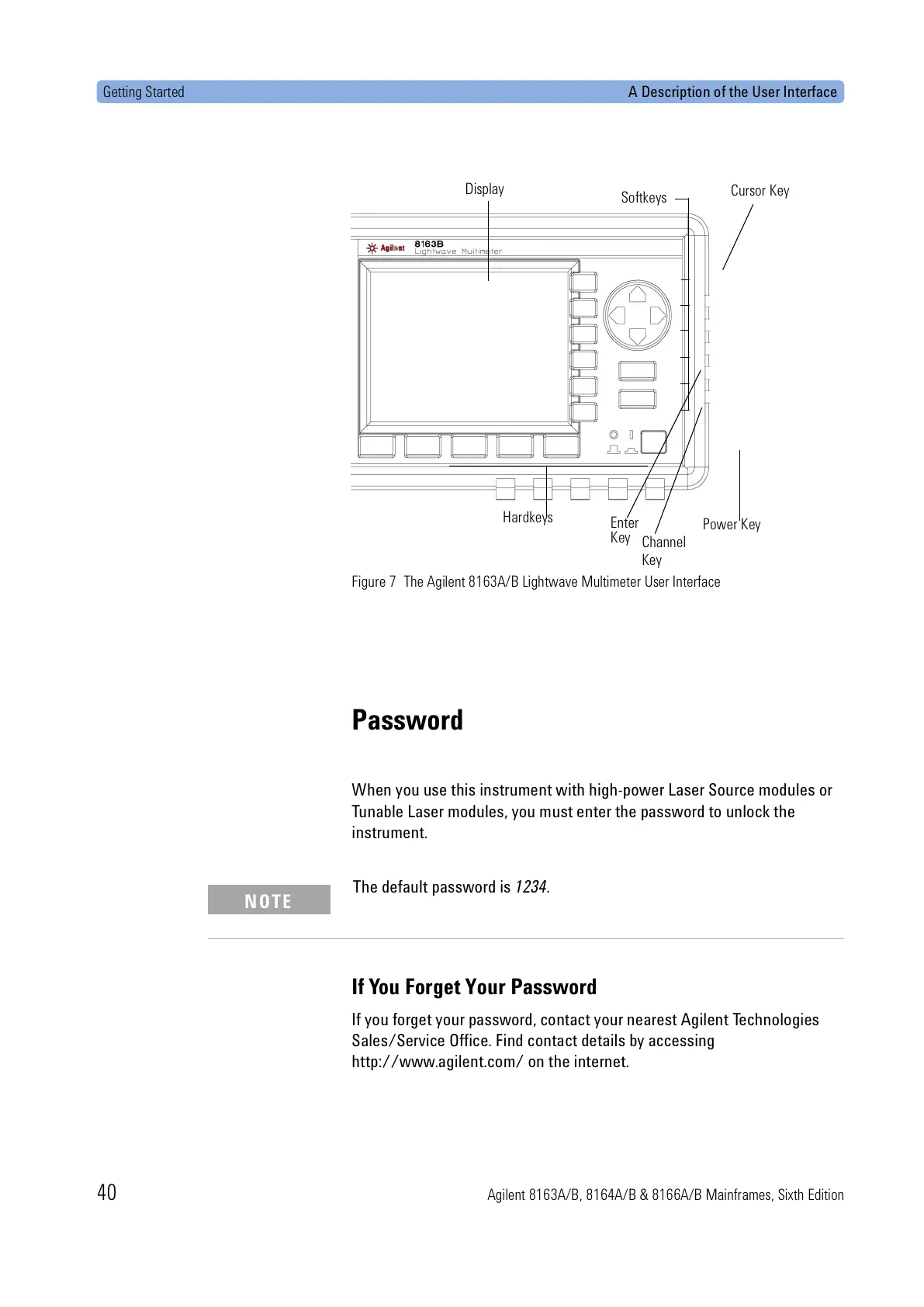

Figure 7 The Agilent 8163A/B Lightwave Multimeter User Interface

Password

When you use this instrument with high-power Laser Source modules or

Tunable Laser modules, you must enter the password to unlock the

instrument.

If You Forget Your Password

If you forget your password, contact your nearest Agilent Technologies

Sales/Service Office. Find contact details by accessing

http://www.agilent.com/ on the internet.

Display

Softkeys

Cursor Key

Power Key

Channel

Key

Enter

Key

Hardkeys

The default password is 1234.

NOTE
