How to Use a Variable Optical Attenuator module Setting Attenuation and/or Power Levels

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 205

10 Use the cursor key to enter the insertion loss measured at Step 7, then press

[OK].

11 Disconnect the patchcord from the reference powermeter and connect it to the

DUT input.

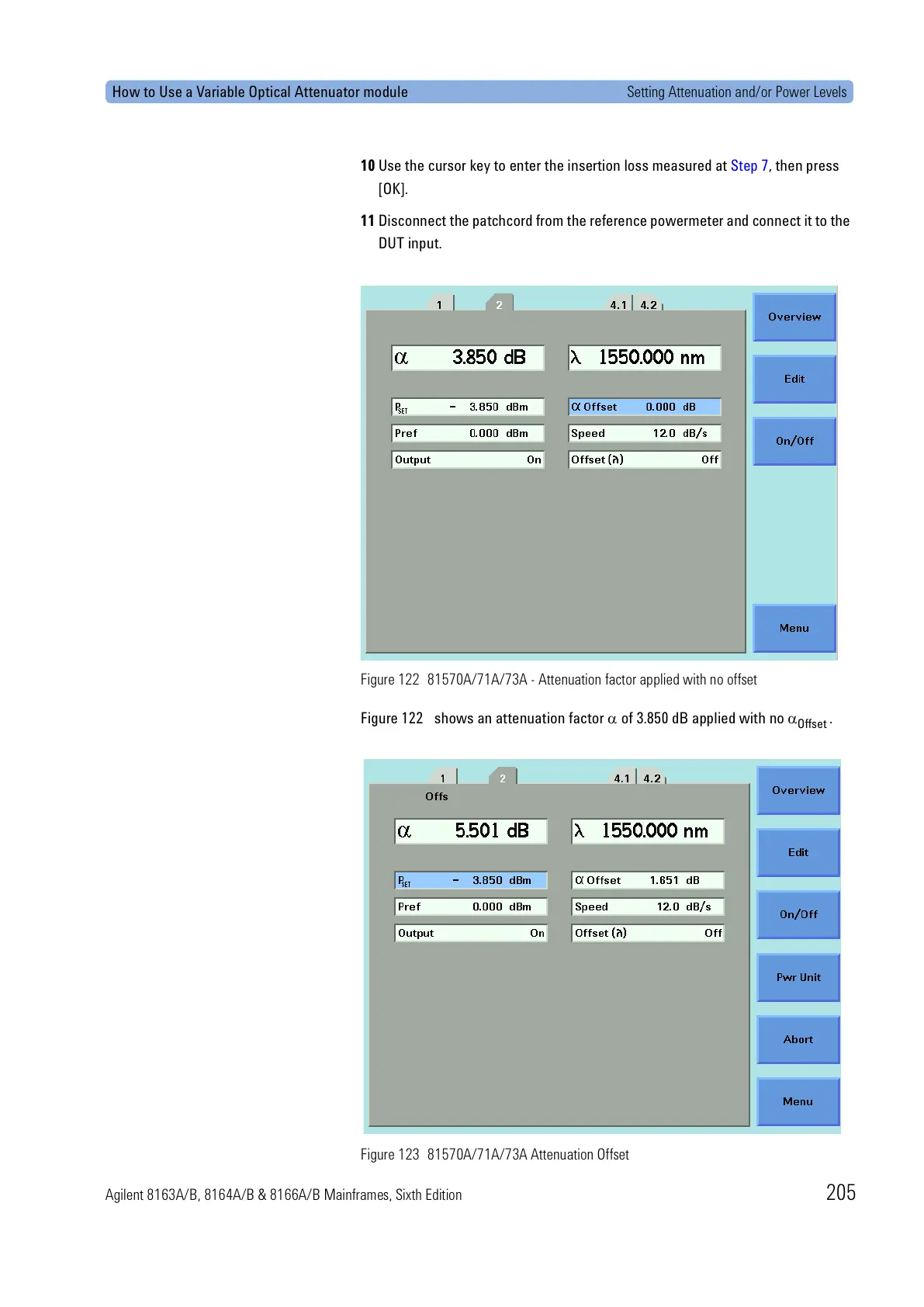

Figure 122 81570A/71A/73A - Attenuation factor applied with no offset

Figure 122 shows an attenuation factor α of 3.850 dB applied with no α

Offset

Figure 123 81570A/71A/73A Attenuation Offset
