Using the System Utilities Additional Information
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 65
You can move to any of the menu items by using the cursor key or the
Modify knob. Select an item by pressing Enter or the [OK] softkey.

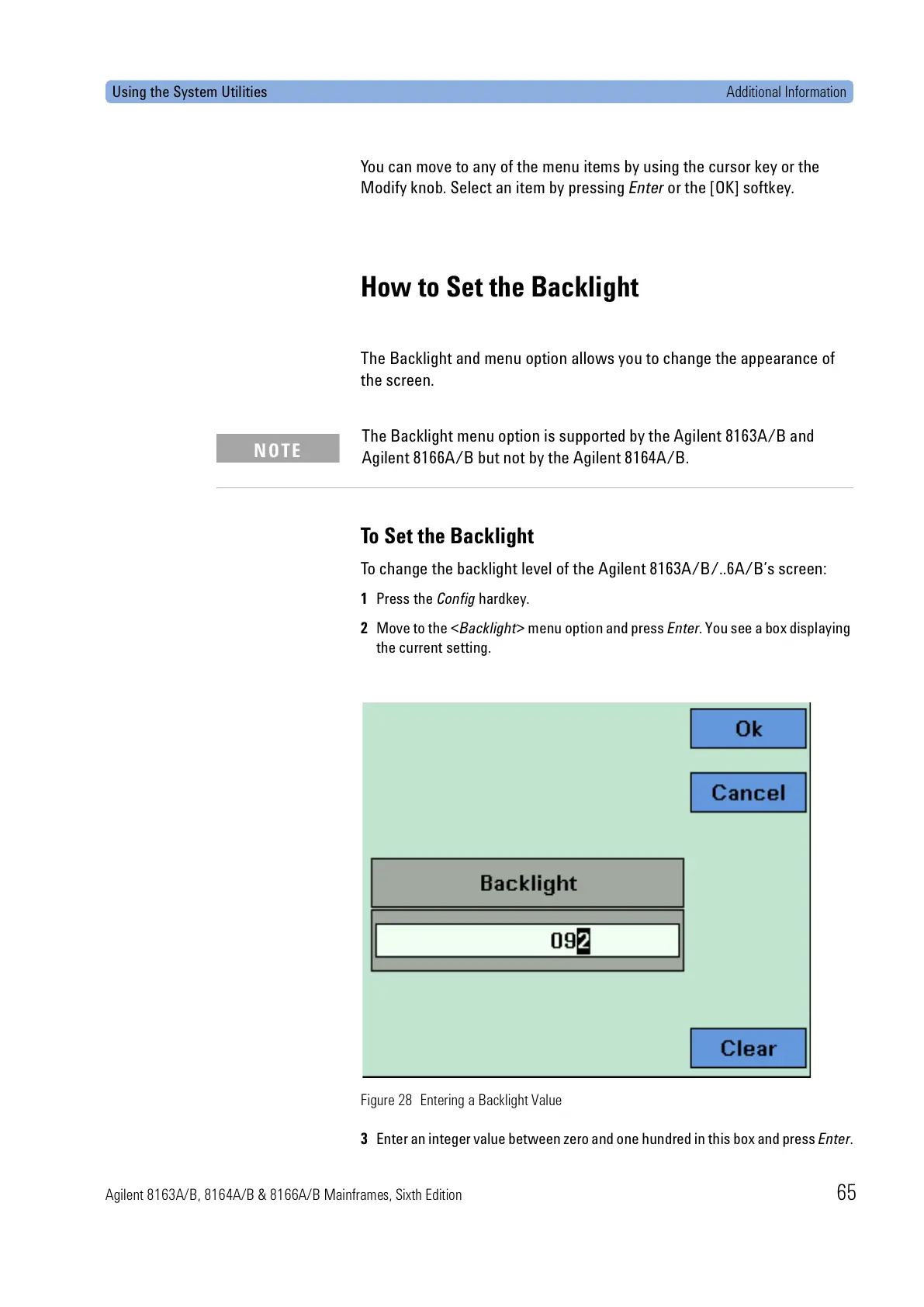

How to Set the Backlight
The Backlight and menu option allows you to change the appearance of
the screen.
To Set the Backlight
To change the backlight level of the Agilent 8163A/B/..6A/B’s screen:
1 Press the Config hardkey.
2 Move to the <Backlight> menu option and press Enter. You see a box displaying
the current setting.
Figure 28 Entering a Backlight Value
3 Enter an integer value between zero and one hundred in this box and press Enter.
The Backlight menu option is supported by the Agilent 8163A/B and
Agilent 8166A/B but not by the Agilent 8164A/B.
NOTE
