Applications The PACT Application

266 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

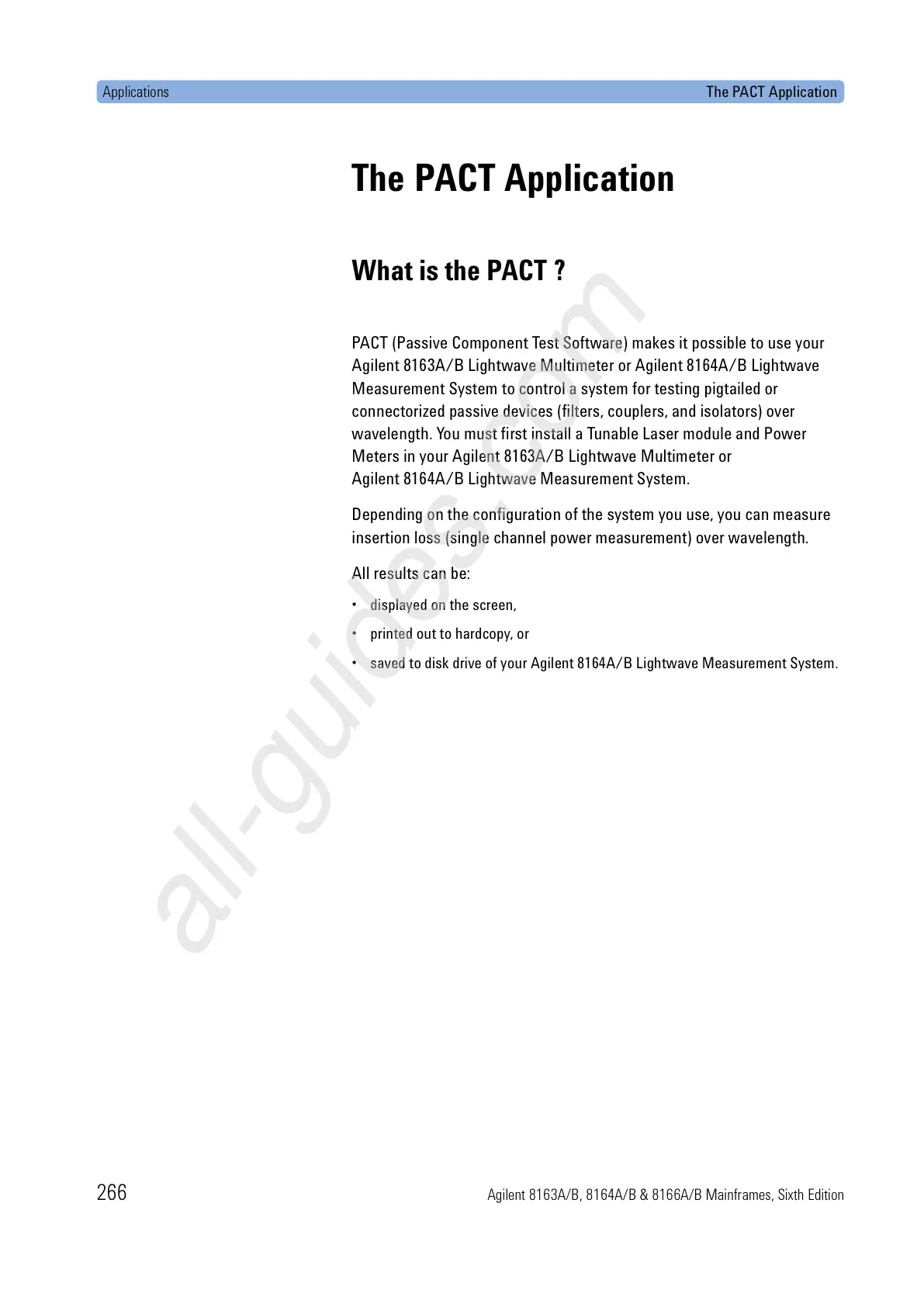

The PACT Application

What is the PACT ?

PACT (Passive Component Test Software) makes it possible to use your

Agilent 8163A/B Lightwave Multimeter or Agilent 8164A/B Lightwave

Measurement System to control a system for testing pigtailed or

connectorized passive devices (filters, couplers, and isolators) over

wavelength. You must first install a Tunable Laser module and Power

Meters in your Agilent 8163A/B Lightwave Multimeter or

Agilent 8164A/B Lightwave Measurement System.

Depending on the configuration of the system you use, you can measure

insertion loss (single channel power measurement) over wavelength.

All results can be:

• displayed on the screen,

• printed out to hardcopy, or

• saved to disk drive of your Agilent 8164A/B Lightwave Measurement System.
