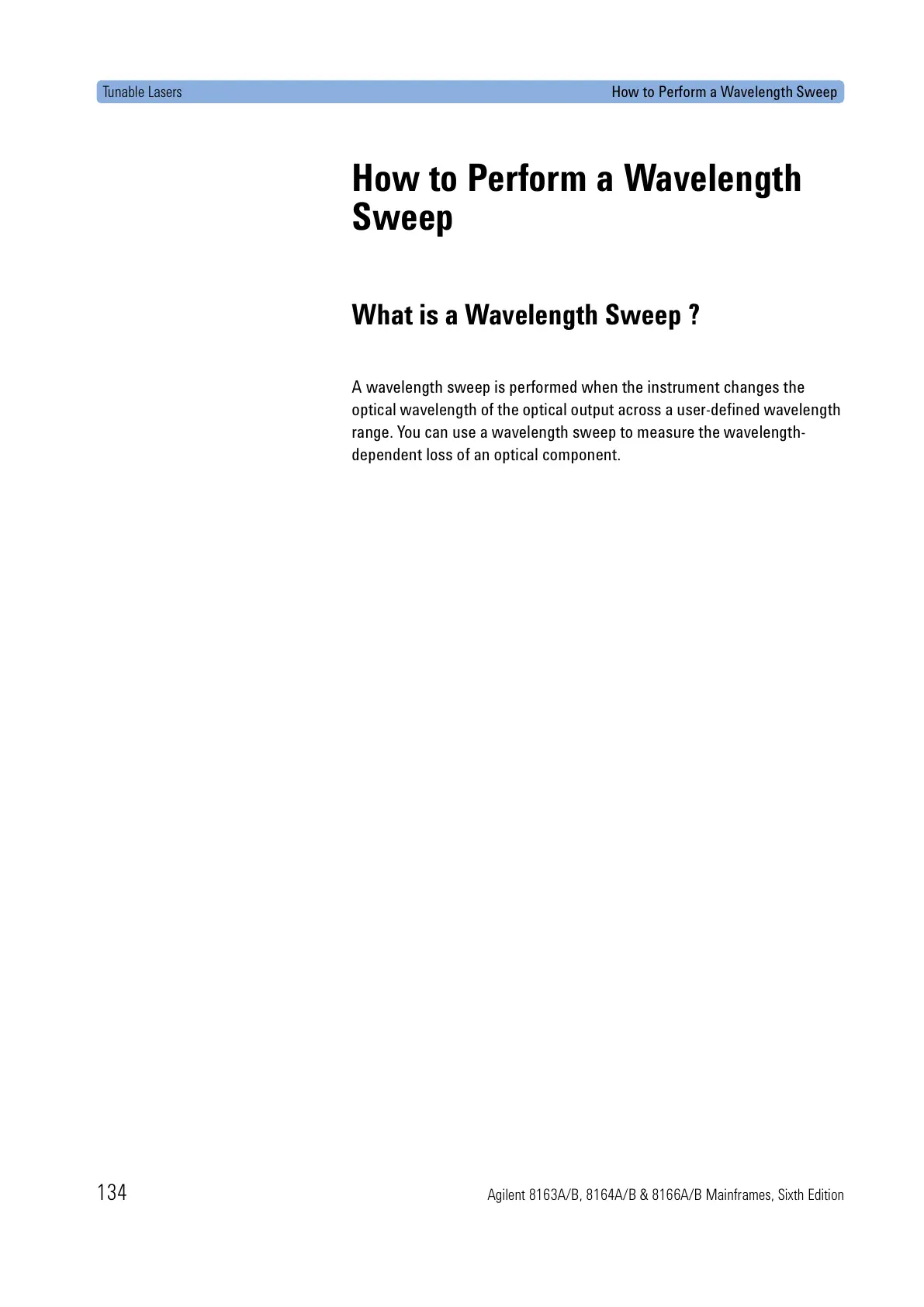

Tunable Lasers How to Perform a Wavelength Sweep

134 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

How to Perform a Wavelength

Sweep

What is a Wavelength Sweep ?

A wavelength sweep is performed when the instrument changes the

optical wavelength of the optical output across a user-defined wavelength

range. You can use a wavelength sweep to measure the wavelength-

dependent loss of an optical component.
