Additional Information Using the System Utilities

78 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

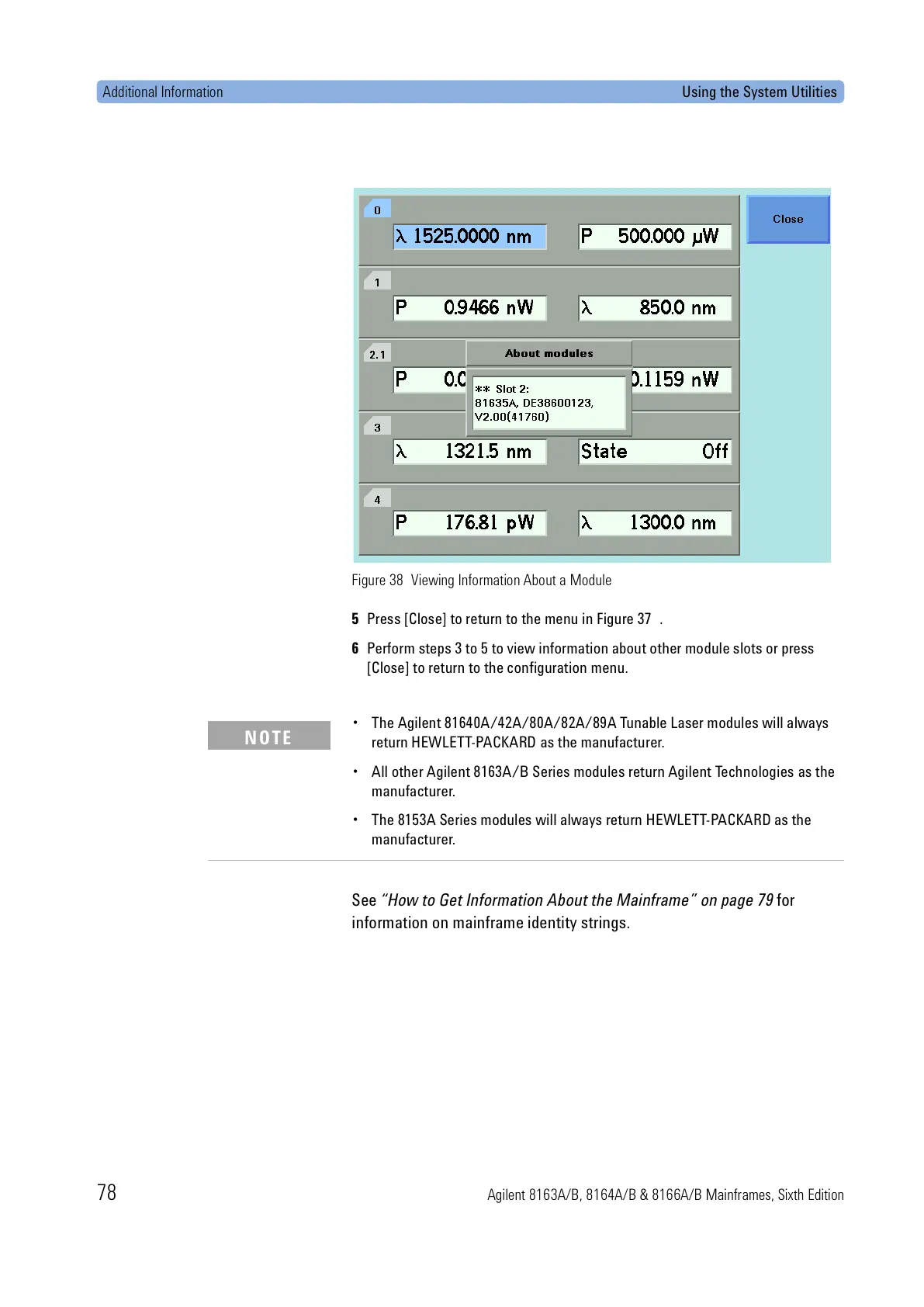

Figure 38 Viewing Information About a Module

5 Press [Close] to return to the menu in Figure 37 .

6 Perform steps 3 to 5 to view information about other module slots or press

[Close] to return to the configuration menu.

See “How to Get Information About the Mainframe” on page 79 for

information on mainframe identity strings.

• The Agilent 81640A/42A/80A/82A/89A Tunable Laser modules will always

return HEWLETT-PACKARD as the manufacturer.

• All other Agilent 8163A/B Series modules return Agilent Technologies as the

manufacturer.

• The 8153A Series modules will always return HEWLETT-PACKARD as the

manufacturer.
