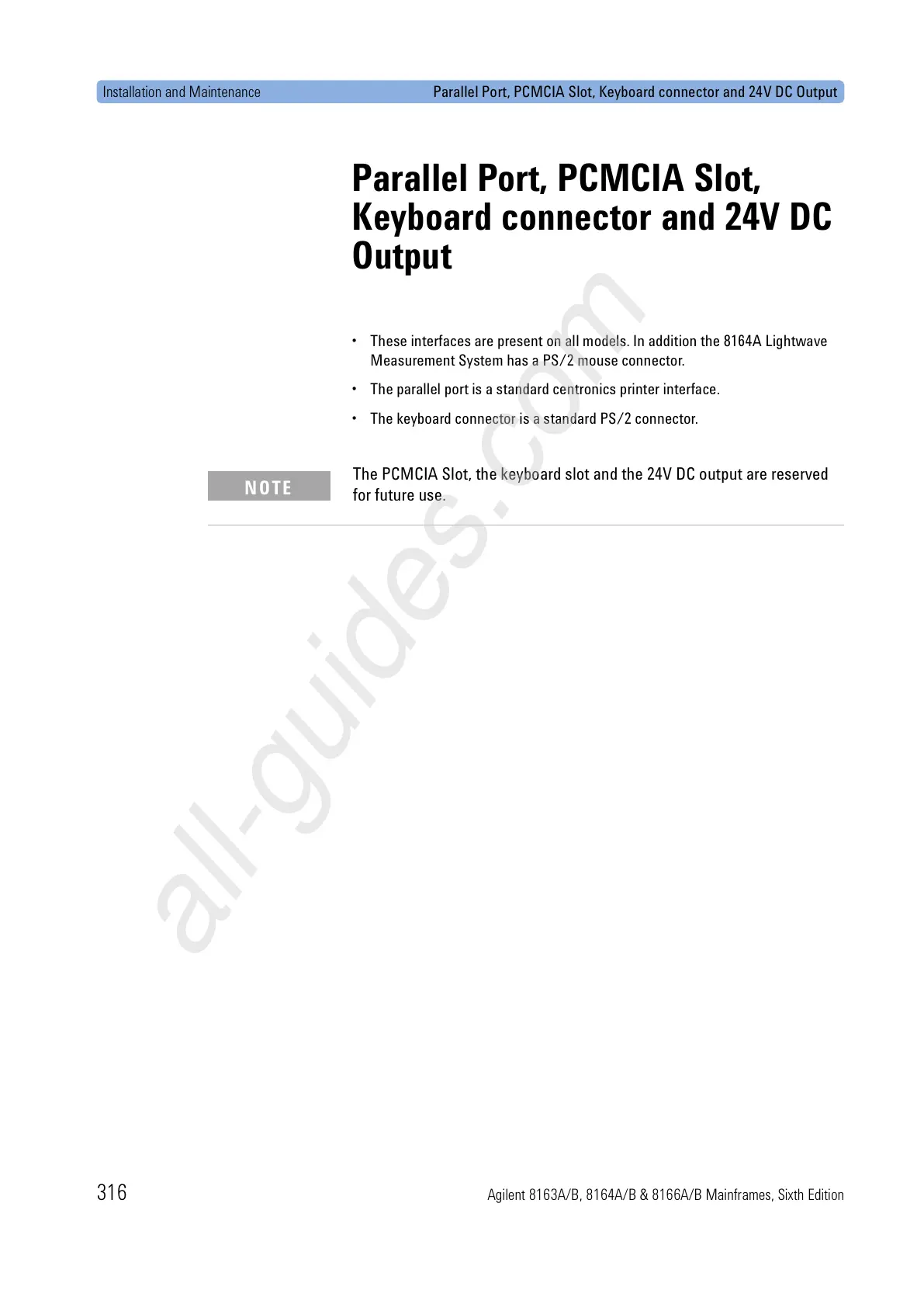

Installation and Maintenance Parallel Port, PCMCIA Slot, Keyboard connector and 24V DC Output

316 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Parallel Port, PCMCIA Slot,

Keyboard connector and 24V DC

Output

• These interfaces are present on all models. In addition the 8164A Lightwave

Measurement System has a PS/2 mouse connector.

• The parallel port is a standard centronics printer interface.

• The keyboard connector is a standard PS/2 connector.

The PCMCIA Slot, the keyboard slot and the 24V DC output are reserved

for future use.

NOTE
