Power Measurement How to Measure Power

96 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

10Move to the [Range Mode] parameter and press Enter.

11Move to <Manual>, by using the cursor key, and press Enter.

12Move to the [Range] parameter and press Enter.

13Enter the range value determined in Step 8, by using the cursor key, and press

Enter.

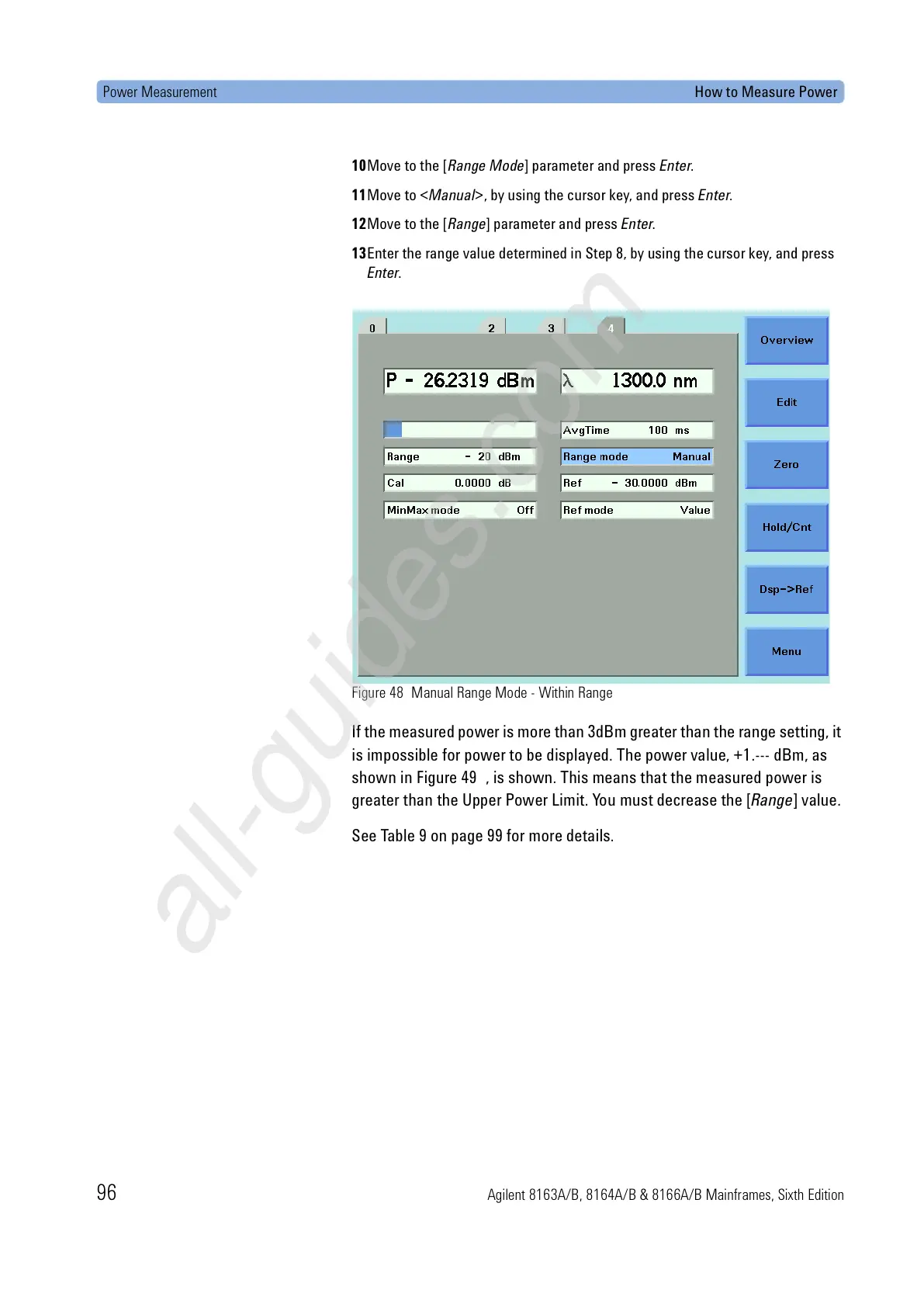

Figure 48 Manual Range Mode - Within Range

If the measured power is more than 3dBm greater than the range setting, it

is impossible for power to be displayed. The power value, +1.--- dBm, as

shown in Figure 49 , is shown. This means that the measured power is

greater than the Upper Power Limit. You must decrease the [Range] value.

See Table 9 on page 99 for more details.
