Additional Information Using the System Utilities
72 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition
How to Set the GPIB Address
To set the GPIB address:
1 Press the Config hardkey.
2 Move to the <GPIB Address> menu option and press Enter. You see a box
displaying the current GPIB address.

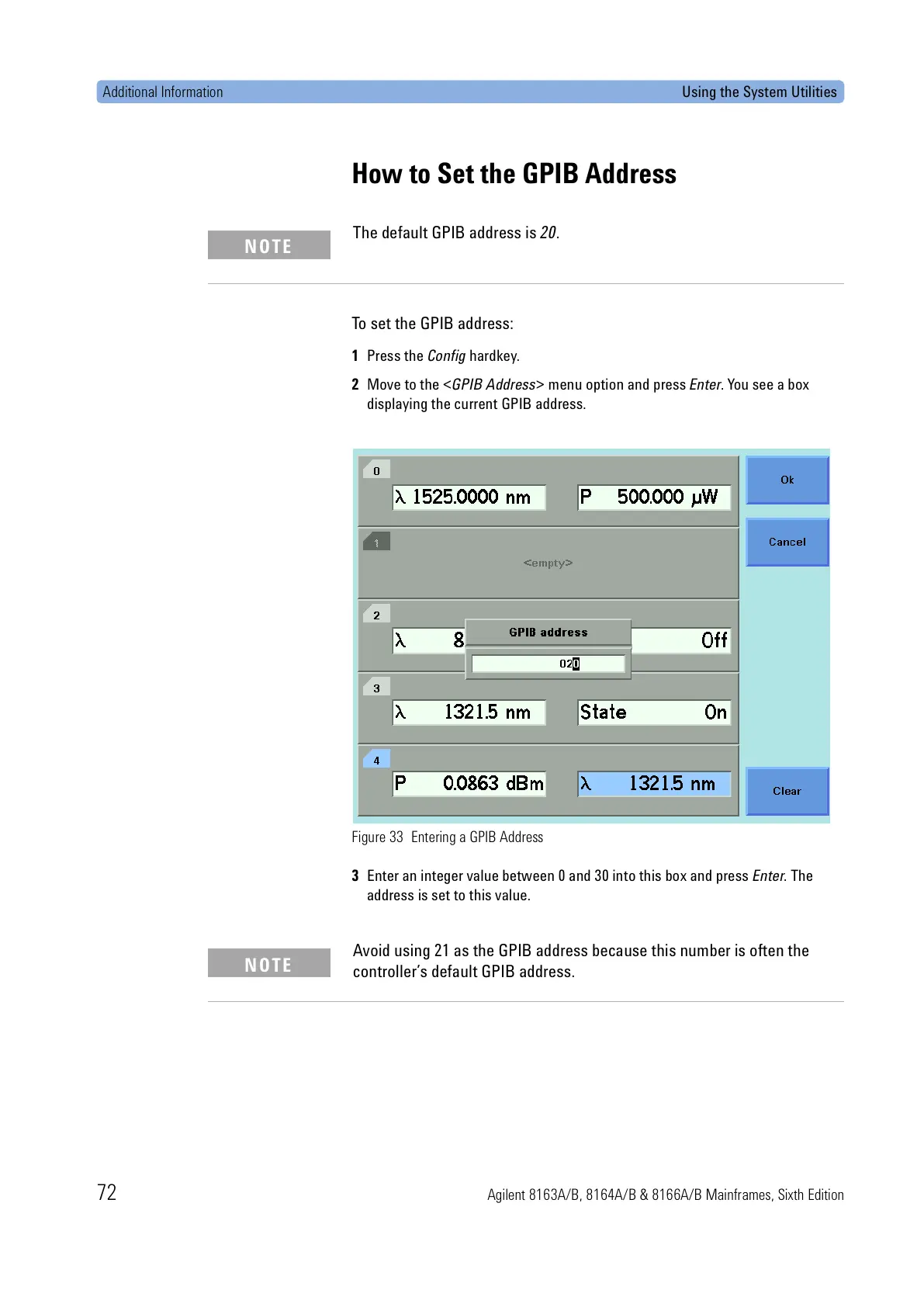

Figure 33 Entering a GPIB Address
3 Enter an integer value between 0 and 30 into this box and press Enter. The
address is set to this value.
The default GPIB address is 20.
NOTE
Avoid using 21 as the GPIB address because this number is often the
controller’s default GPIB address.
NOTE
