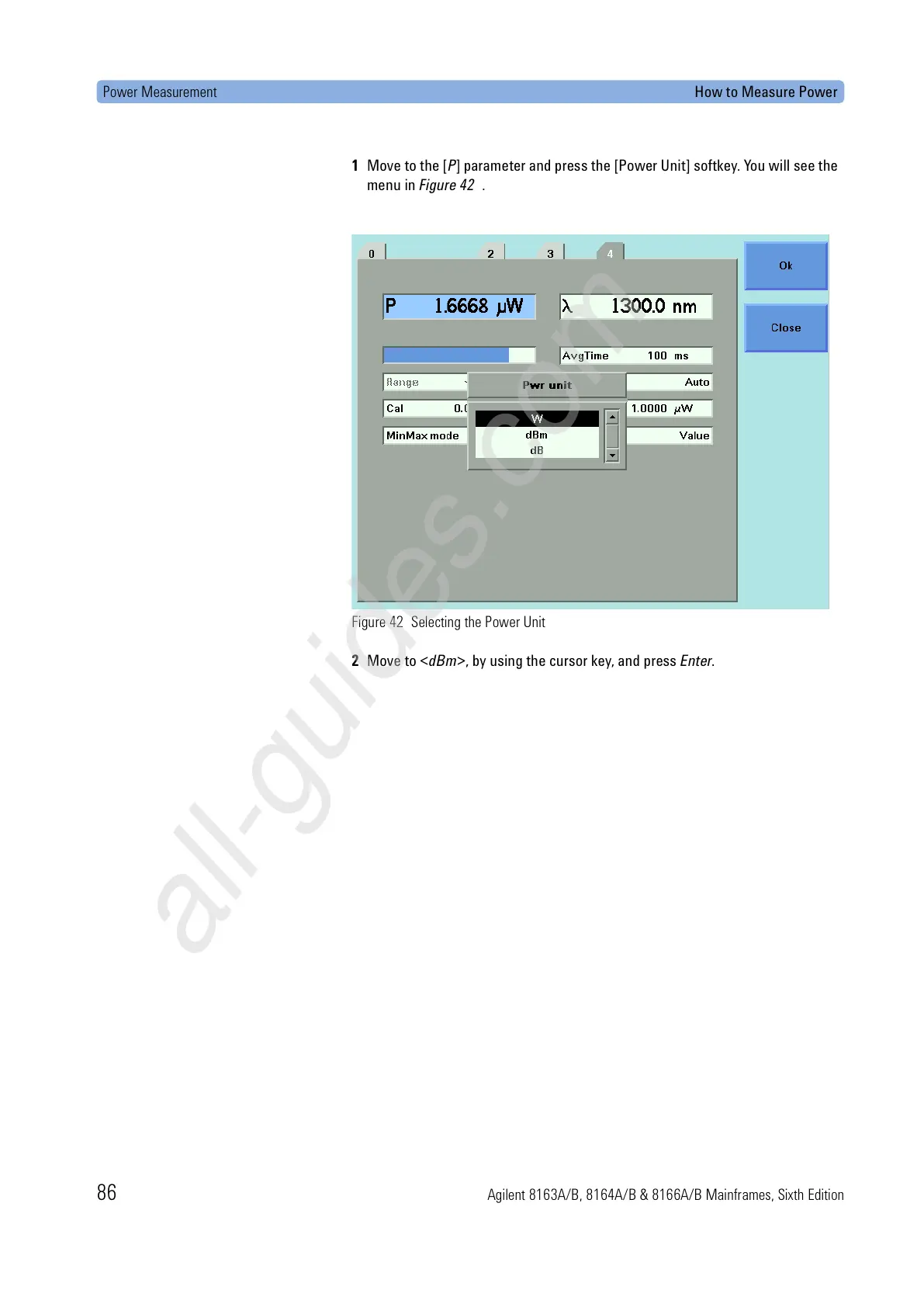

Power Measurement How to Measure Power

86 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

1 Move to the [P] parameter and press the [Power Unit] softkey. You will see the

menu in Figure 42 .

Figure 42 Selecting the Power Unit

2 Move to <dBm>, by using the cursor key, and press Enter.
