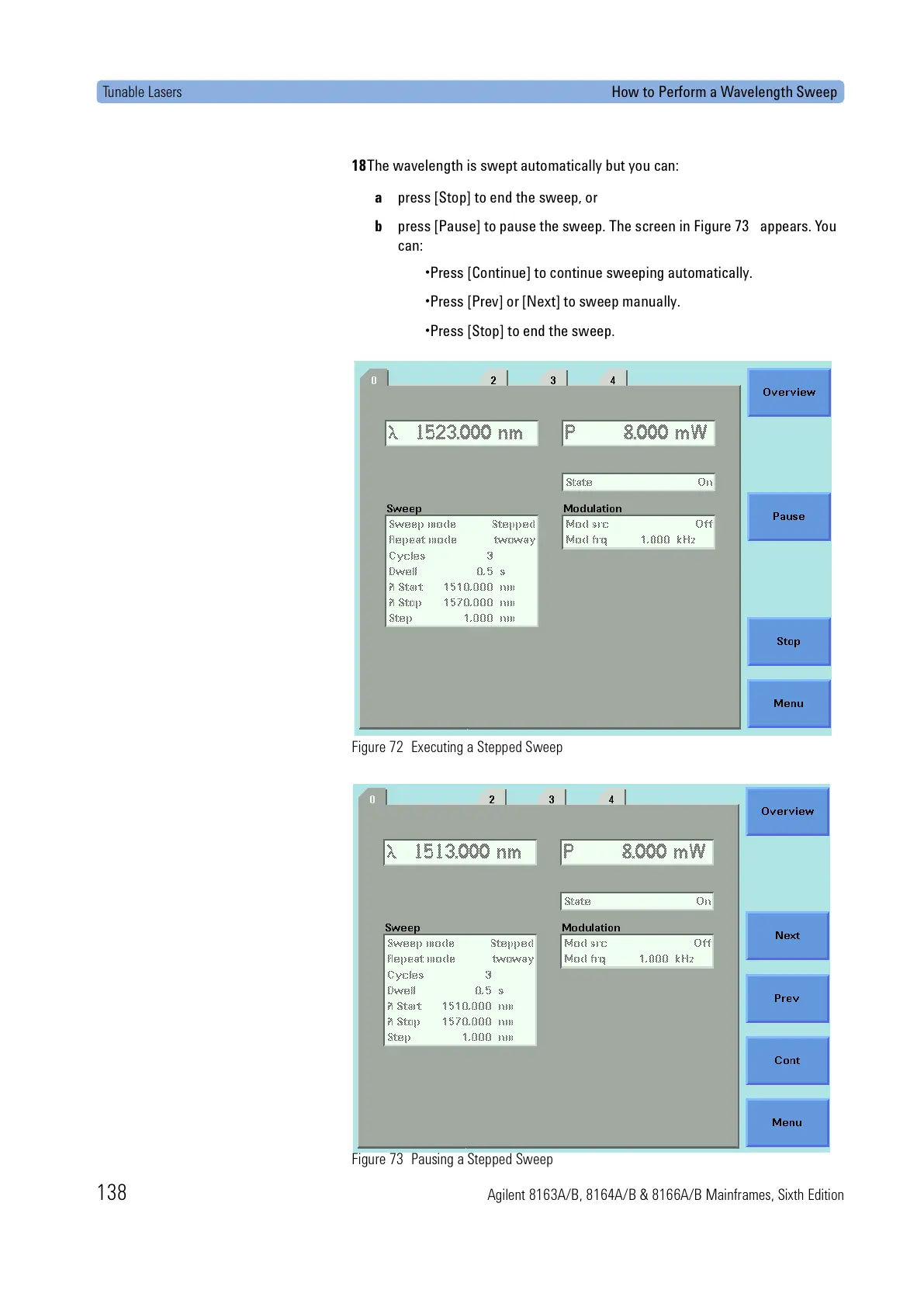

Tunable Lasers How to Perform a Wavelength Sweep

138 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

18The wavelength is swept automatically but you can:

a press [Stop] to end the sweep, or

b press [Pause] to pause the sweep. The screen in Figure 73 appears. You

can:

•Press [Continue] to continue sweeping automatically.

•Press [Prev] or [Next] to sweep manually.

•Press [Stop] to end the sweep.

Figure 72 Executing a Stepped Sweep

Figure 73 Pausing a Stepped Sweep
