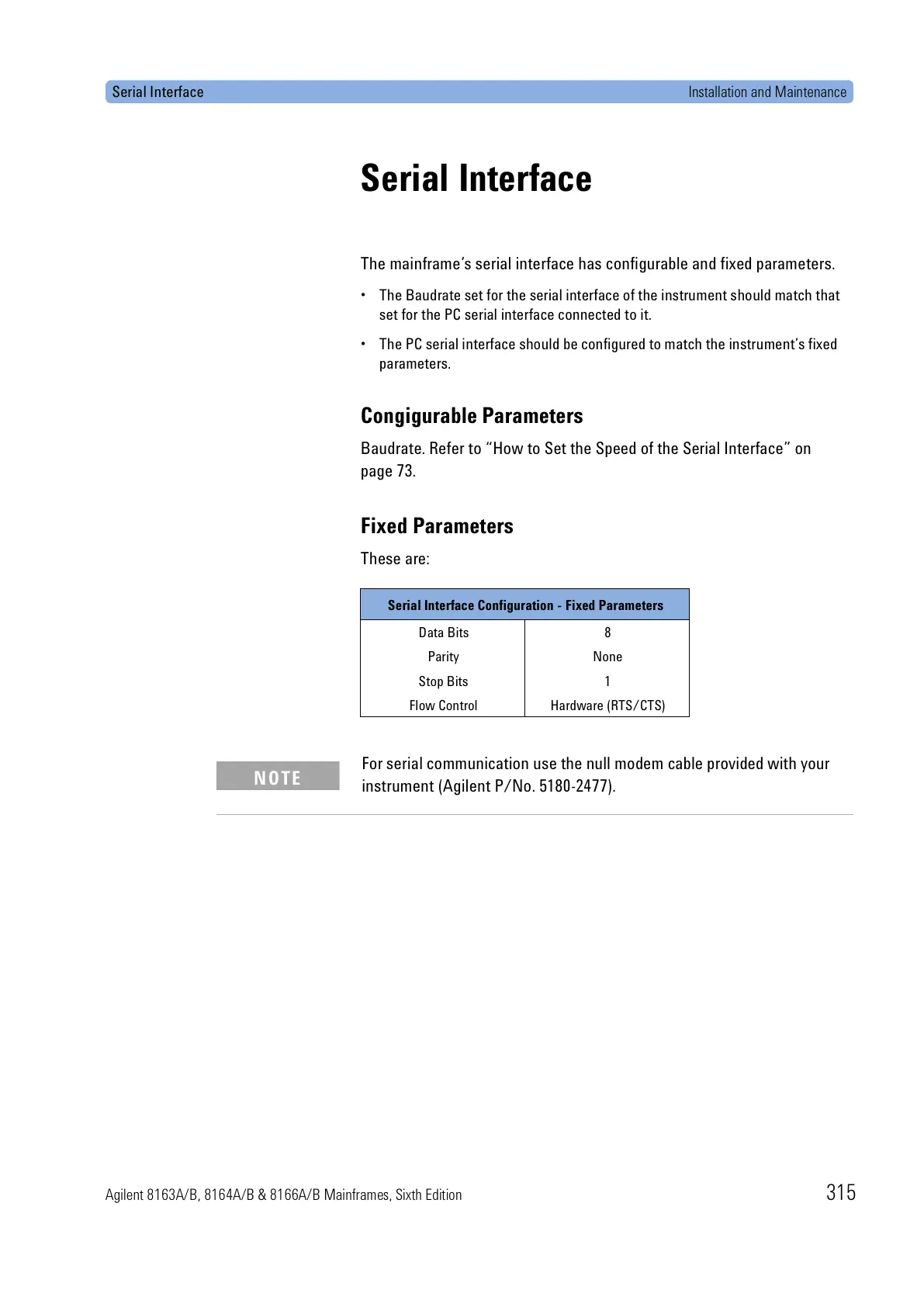

Serial Interface Installation and Maintenance

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 315

Serial Interface

The mainframe’s serial interface has configurable and fixed parameters.

• The Baudrate set for the serial interface of the instrument should match that

set for the PC serial interface connected to it.

• The PC serial interface should be configured to match the instrument’s fixed

parameters.

Congigurable Parameters

Baudrate. Refer to “How to Set the Speed of the Serial Interface” on

page 73.

Fixed Parameters

These are:

Serial Interface Configuration - Fixed Parameters

Data Bits 8

Parity None

Stop Bits 1

Flow Control Hardware (RTS/CTS)

For serial communication use the null modem cable provided with your

instrument (Agilent P/No. 5180-2477).
