How to Change the Value of a Parameter Getting Started

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 57

How to Change a Discrete Parameter

For discrete parameters, you may choose a particular values within a given

range.

For a Power Sensor module:

1 Move to the Power Sensor channel and press the [Details] softkey.

2 Move to the [AvgTime] parameter and press Enter.

3 Move to 1 s, by using the cursor key, and press Enter.

1 Move to the Power Sensor channel and press the [Menu] softkey.

2 Move to the <Averaging Time> parameter and press Enter. You see the screen

in Figure 24 .

3 Move to <1 s>, by using the cursor key, and press Enter.

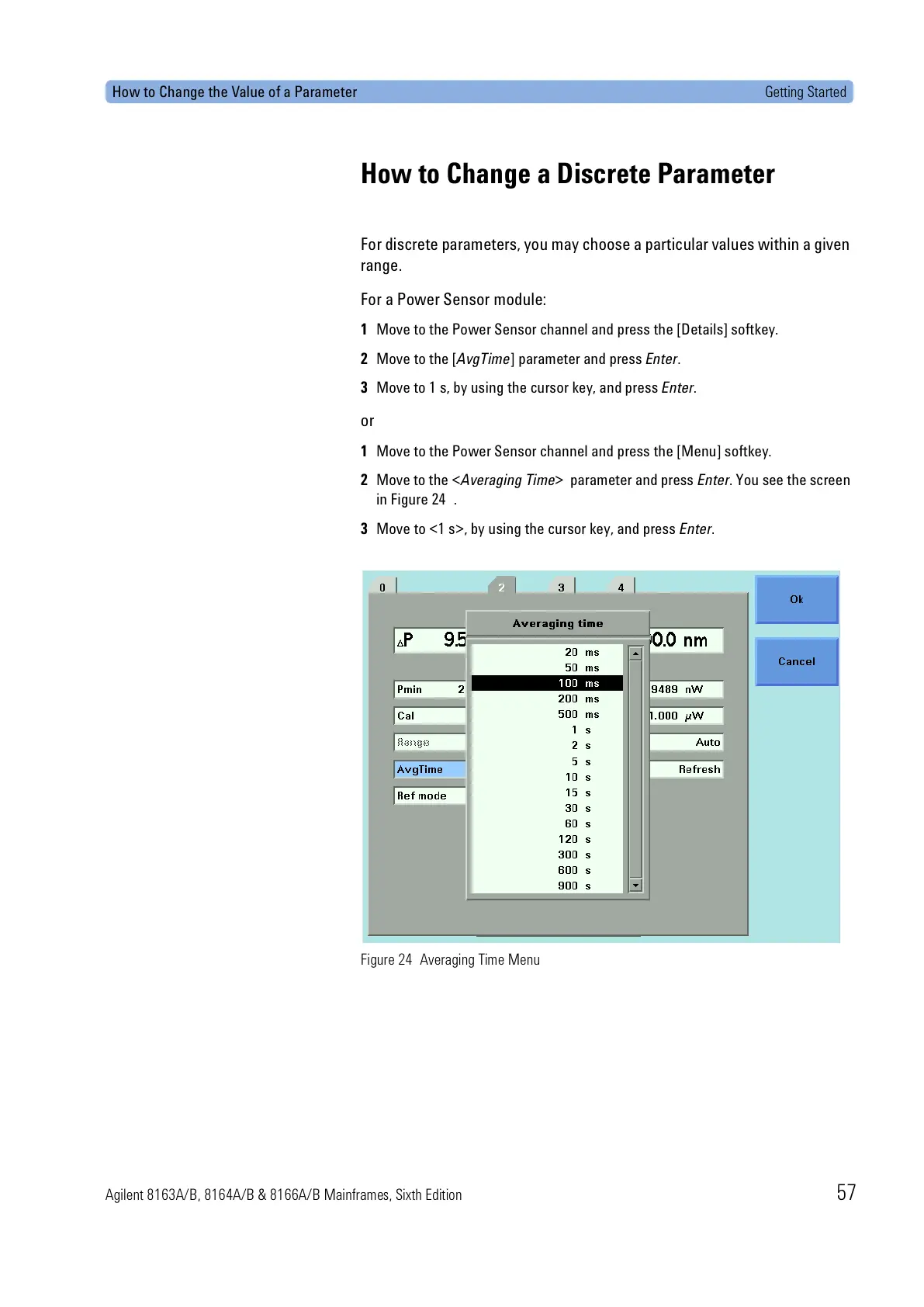

Figure 24 Averaging Time Menu
