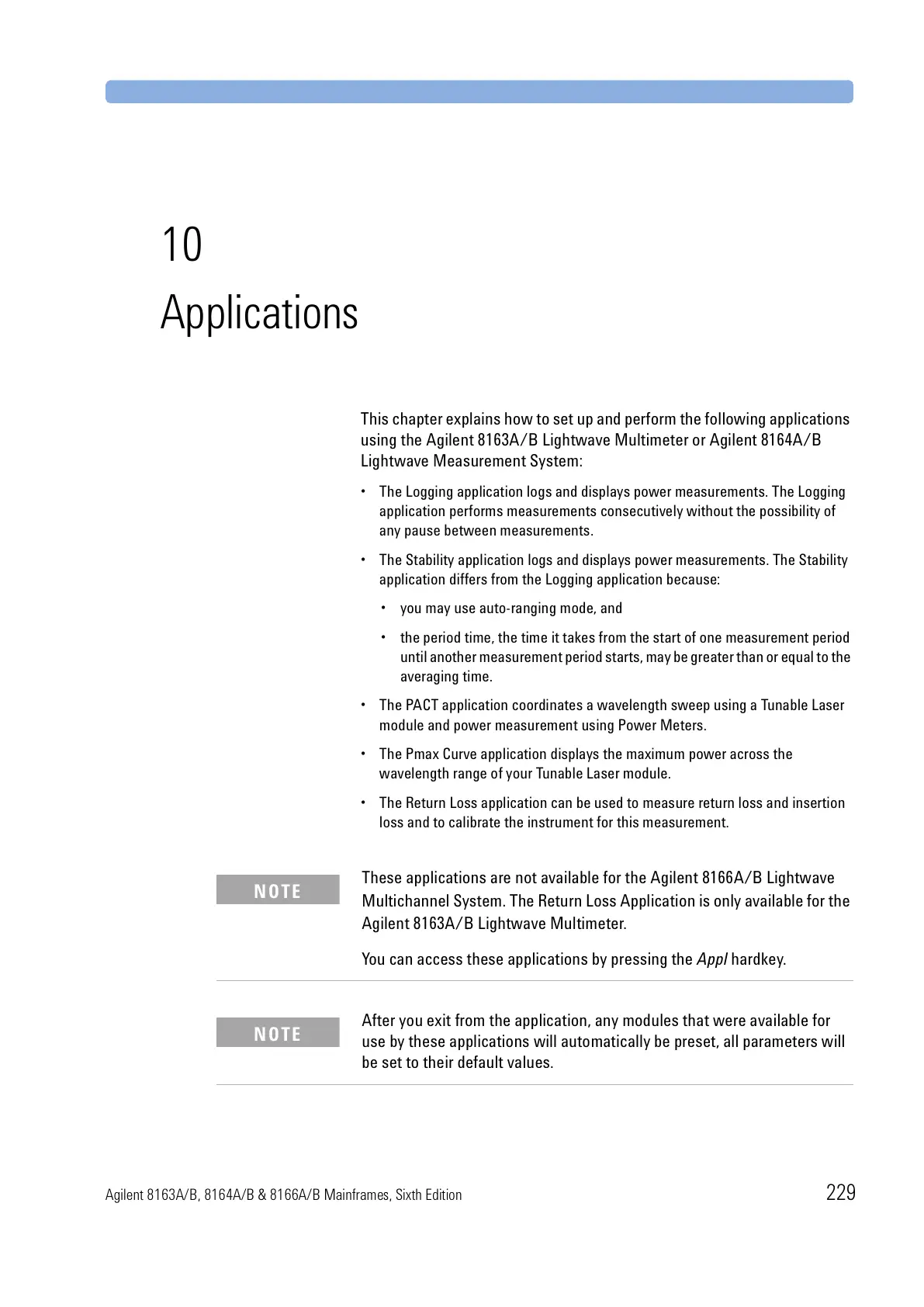

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 229
10
Applications
This chapter explains how to set up and perform the following applications
using the Agilent 8163A/B Lightwave Multimeter or Agilent 8164A/B
Lightwave Measurement System:
• The Logging application logs and displays power measurements. The Logging
application performs measurements consecutively without the possibility of
any pause between measurements.
• The Stability application logs and displays power measurements. The Stability
application differs from the Logging application because:
• you may use auto-ranging mode, and
• the period time, the time it takes from the start of one measurement period
until another measurement period starts, may be greater than or equal to the
averaging time.
• The PACT application coordinates a wavelength sweep using a Tunable Laser
module and power measurement using Power Meters.
• The Pmax Curve application displays the maximum power across the
wavelength range of your Tunable Laser module.
• The Return Loss application can be used to measure return loss and insertion
loss and to calibrate the instrument for this measurement.
These applications are not available for the Agilent 8166A/B Lightwave
Multichannel System. The Return Loss Application is only available for the
Agilent 8163A/B Lightwave Multimeter.
You can access these applications by pressing the Appl hardkey.
After you exit from the application, any modules that were available for
use by these applications will automatically be preset, all parameters will
be set to their default values.
NOTE
NOTE
