Additional Information Using the System Utilities

68 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

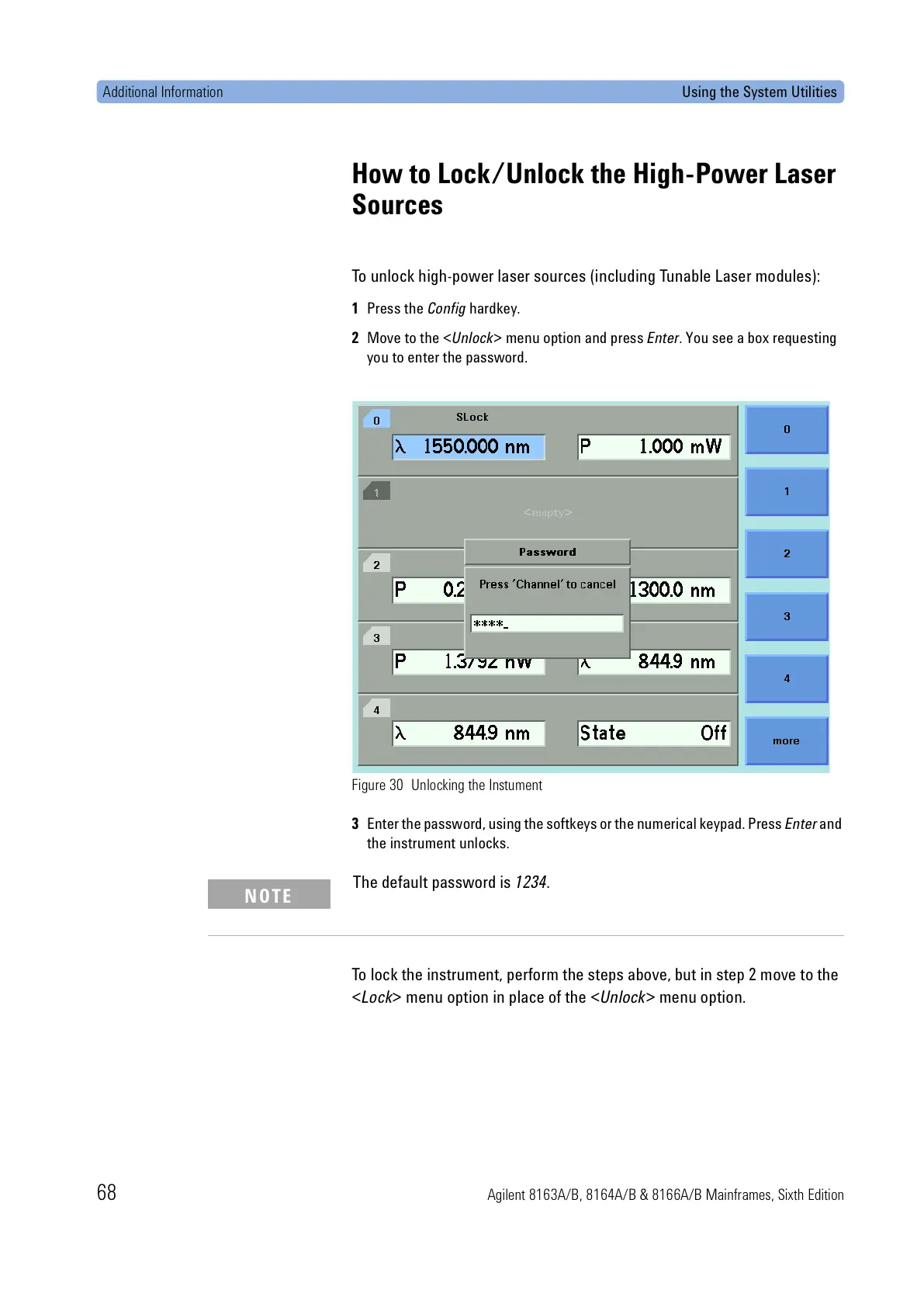

How to Lock/Unlock the High-Power Laser

Sources

To unlock high-power laser sources (including Tunable Laser modules):

1 Press the Config hardkey.

2 Move to the <Unlock> menu option and press Enter. You see a box requesting

you to enter the password.

Figure 30 Unlocking the Instument

3 Enter the password, using the softkeys or the numerical keypad. Press Enter and

the instrument unlocks.

To lock the instrument, perform the steps above, but in step 2 move to the

<Lock> menu option in place of the <Unlock> menu option.

The default password is 1234.

NOTE
