GPIB Interface Installation and Maintenance

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 313

Connector

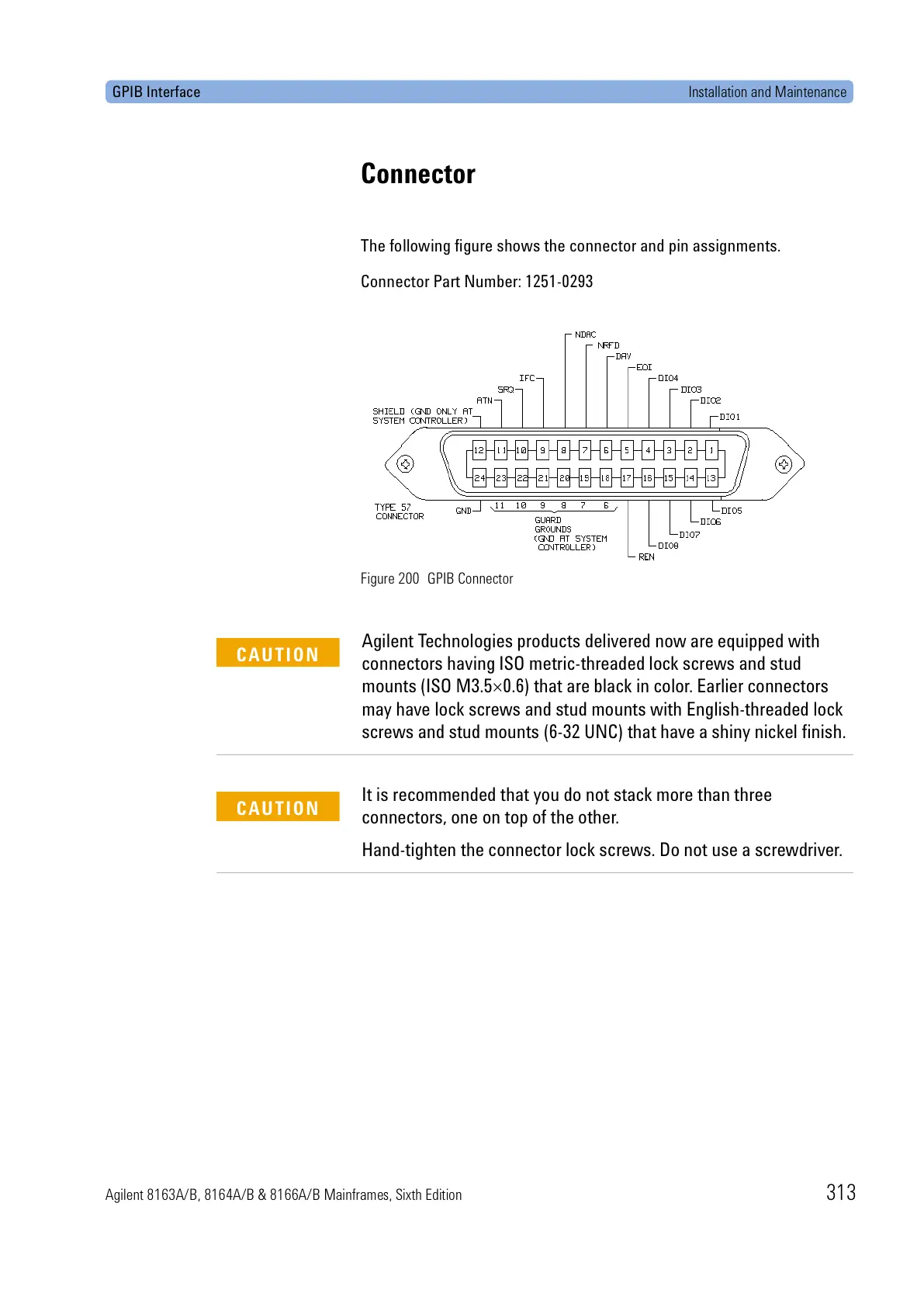

The following figure shows the connector and pin assignments.

Connector Part Number: 1251-0293

Figure 200 GPIB Connector

Agilent Technologies products delivered now are equipped with

connectors having ISO metric-threaded lock screws and stud

mounts (ISO M3.5×0.6) that are black in color. Earlier connectors

may have lock screws and stud mounts with English-threaded lock

screws and stud mounts (6-32 UNC) that have a shiny nickel finish.

It is recommended that you do not stack more than three

connectors, one on top of the other.

Hand-tighten the connector lock screws. Do not use a screwdriver.

CAUTION
