A Description of the User Interface Getting Started
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 39
A Description of the User
Interface
Figure 6 and Figure 7 show the user interface of the Agilent 8164A/B,
the Agilent 8163A/B and Agilent 8166A/B, respectively, and the names
used in this manual to describe the groups of keys.

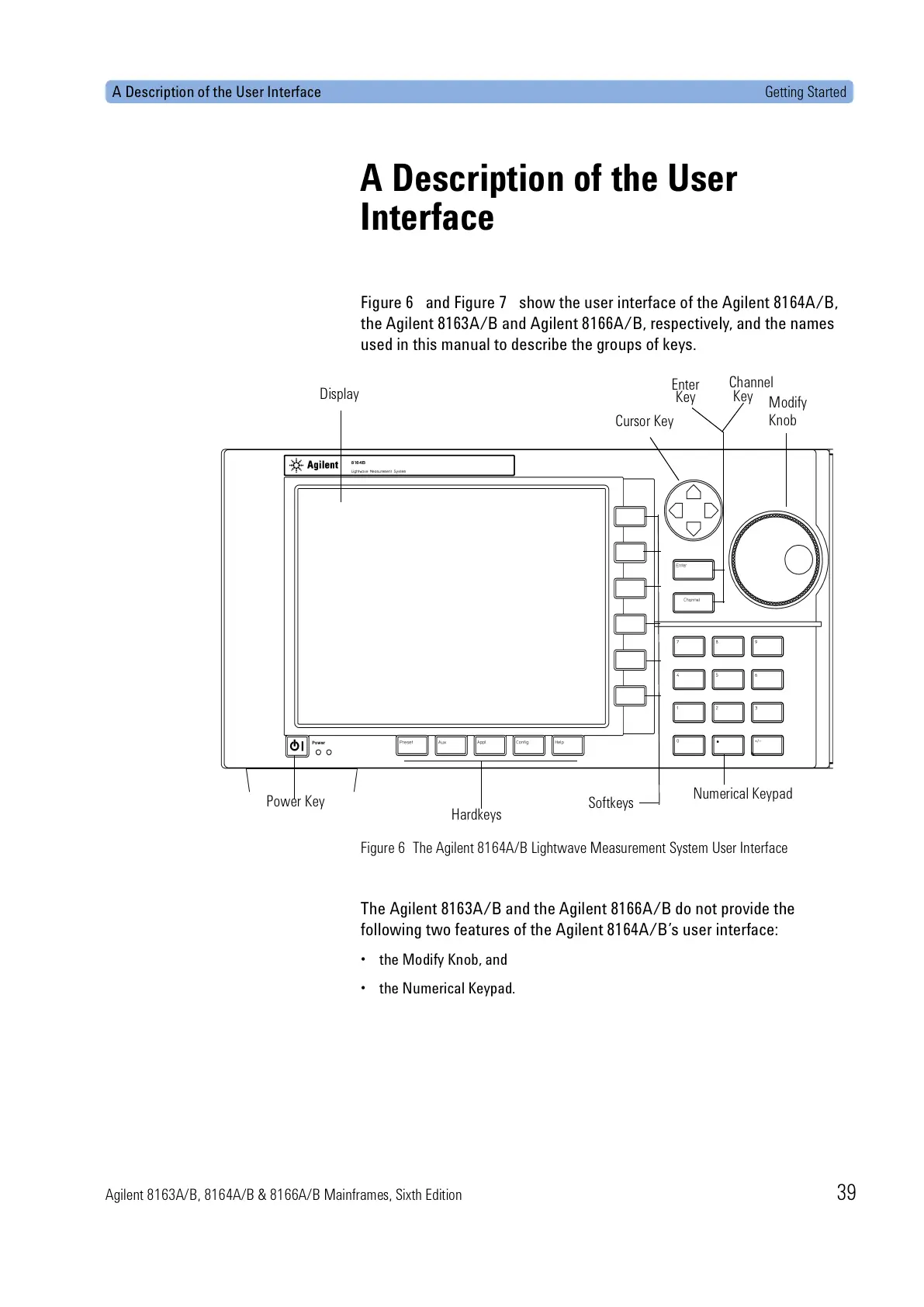

Figure 6 The Agilent 8164A/B Lightwave Measurement System User Interface
The Agilent 8163A/B and the Agilent 8166A/B do not provide the
following two features of the Agilent 8164A/B’s user interface:
•the Modify Knob, and
• the Numerical Keypad.
Display
Cursor Key
Enter
Key
Key
Channel
Modify
Knob
Numerical Keypad
Softkeys
Hardkeys
Power Key
