Tunable Lasers What is a Tunable Laser ?

126 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

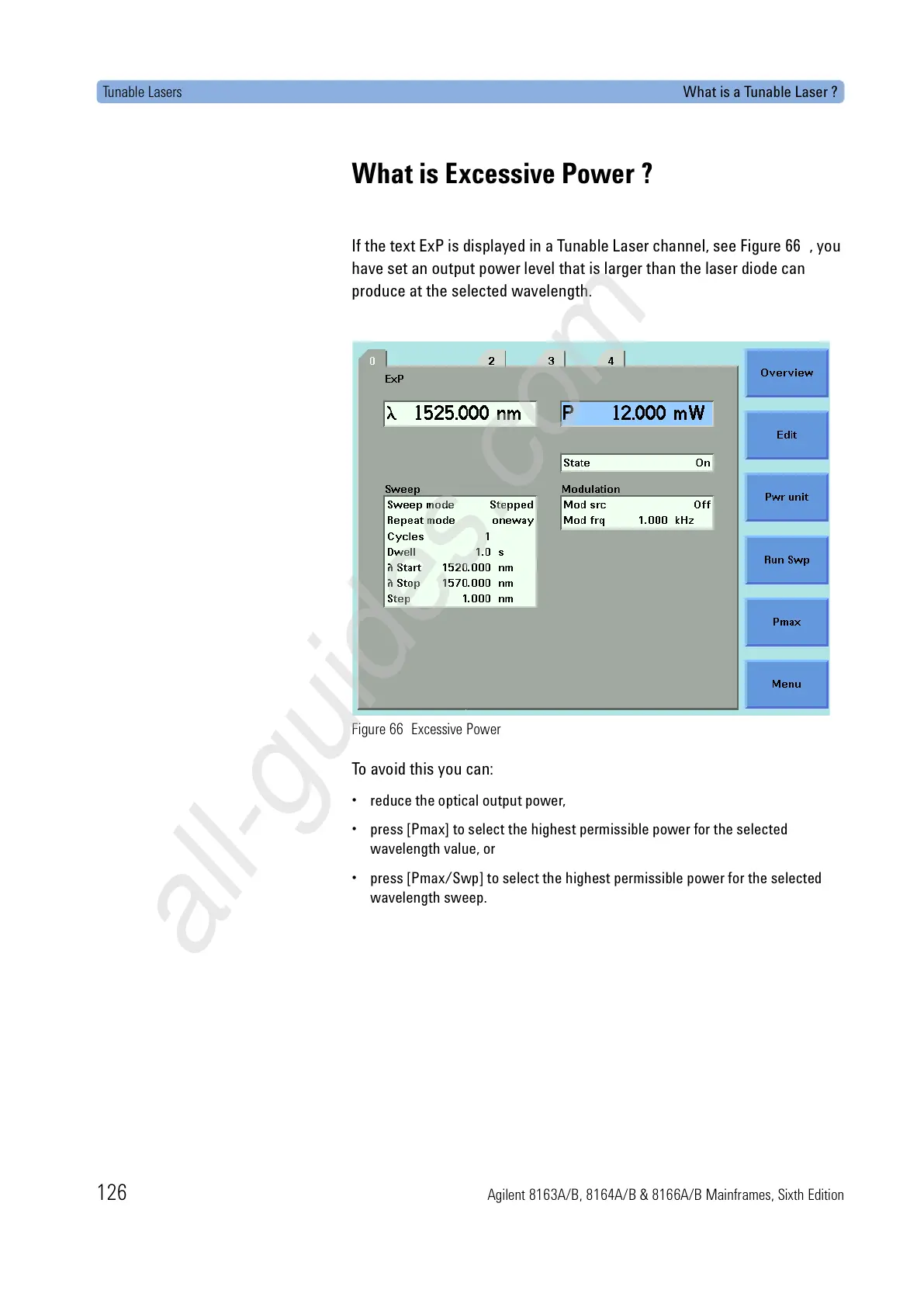

What is Excessive Power ?

If the text ExP is displayed in a Tunable Laser channel, see Figure 66 , you

have set an output power level that is larger than the laser diode can

produce at the selected wavelength.

Figure 66 Excessive Power

To avoid this you can:

• reduce the optical output power,

• press [Pmax] to select the highest permissible power for the selected

wavelength value, or

• press [Pmax/Swp] to select the highest permissible power for the selected

wavelength sweep.
