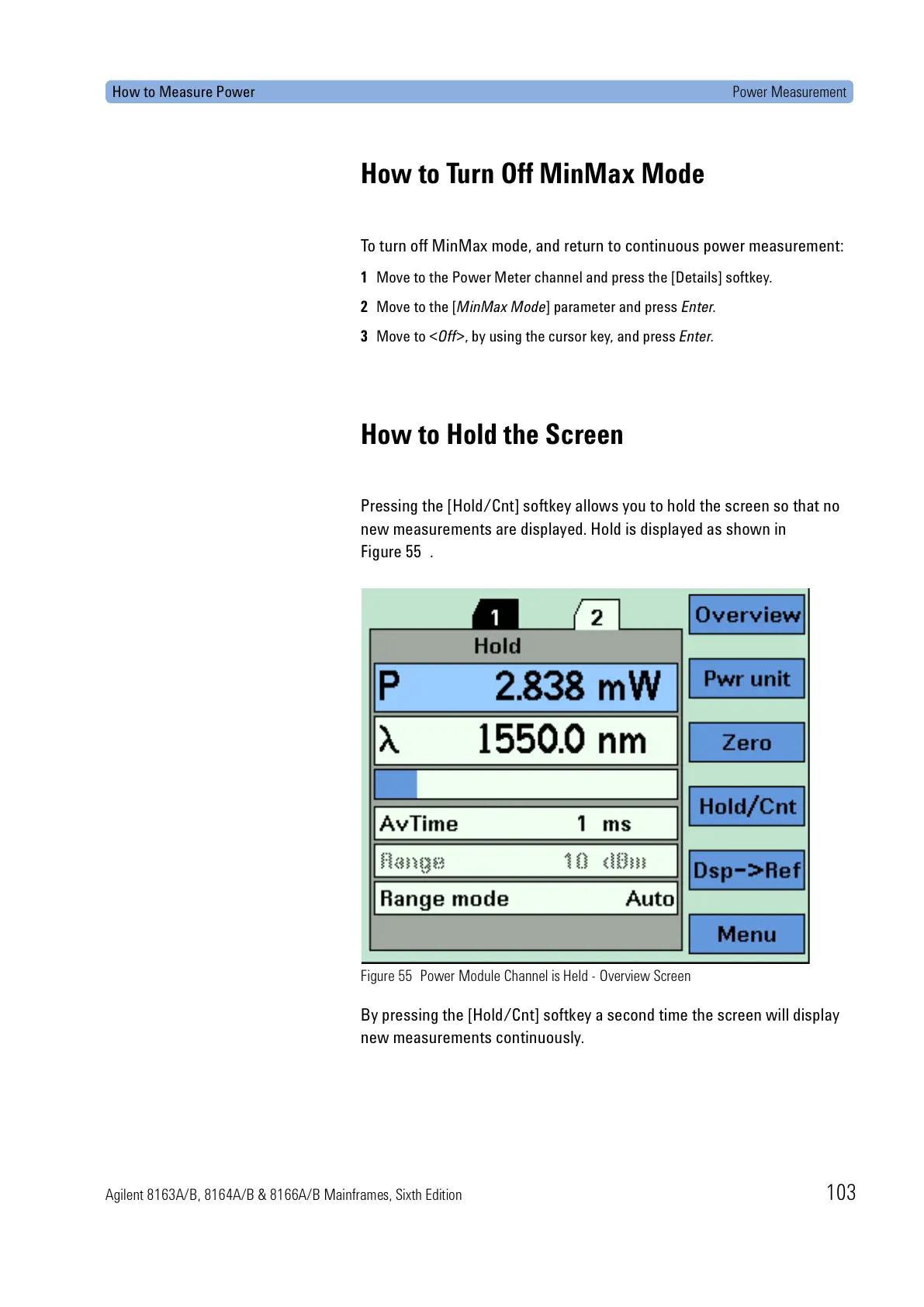

How to Measure Power Power Measurement

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 103

How to Turn Off MinMax Mode

To turn off MinMax mode, and return to continuous power measurement:

1 Move to the Power Meter channel and press the [Details] softkey.

2 Move to the [MinMax Mode] parameter and press Enter.

3 Move to <Off>, by using the cursor key, and press Enter.

How to Hold the Screen

Pressing the [Hold/Cnt] softkey allows you to hold the screen so that no

new measurements are displayed. Hold is displayed as shown in

Figure 55 .

Figure 55 Power Module Channel is Held - Overview Screen

By pressing the [Hold/Cnt] softkey a second time the screen will display

new measurements continuously.
