How to Measure Power Power Measurement

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 97

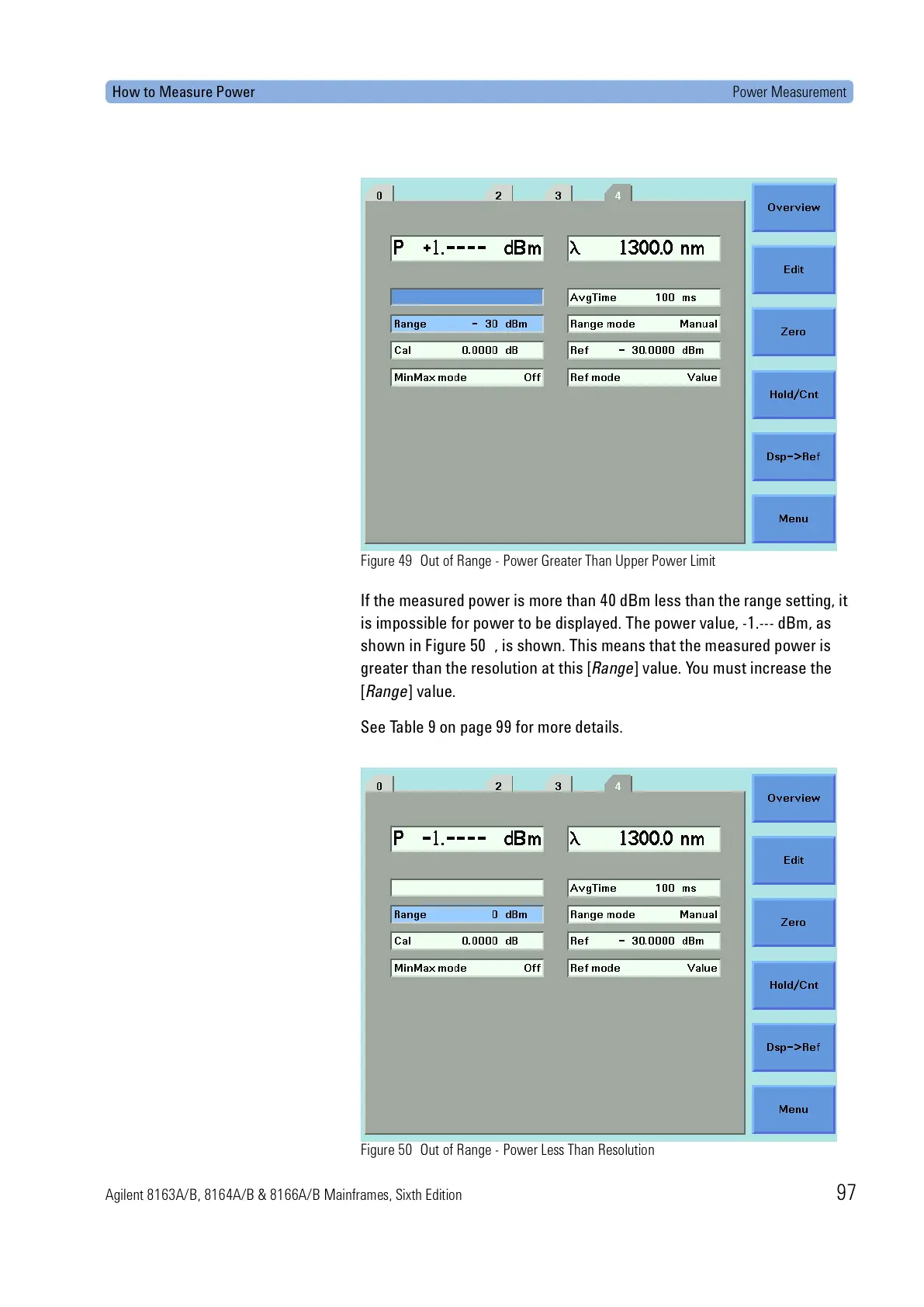

Figure 49 Out of Range - Power Greater Than Upper Power Limit

If the measured power is more than 40 dBm less than the range setting, it

is impossible for power to be displayed. The power value, -1.--- dBm, as

shown in Figure 50 , is shown. This means that the measured power is

greater than the resolution at this [Range] value. You must increase the

[Range] value.

See Table 9 on page 99 for more details.

Figure 50 Out of Range - Power Less Than Resolution
