Power Measurement How to Measure Power

98 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

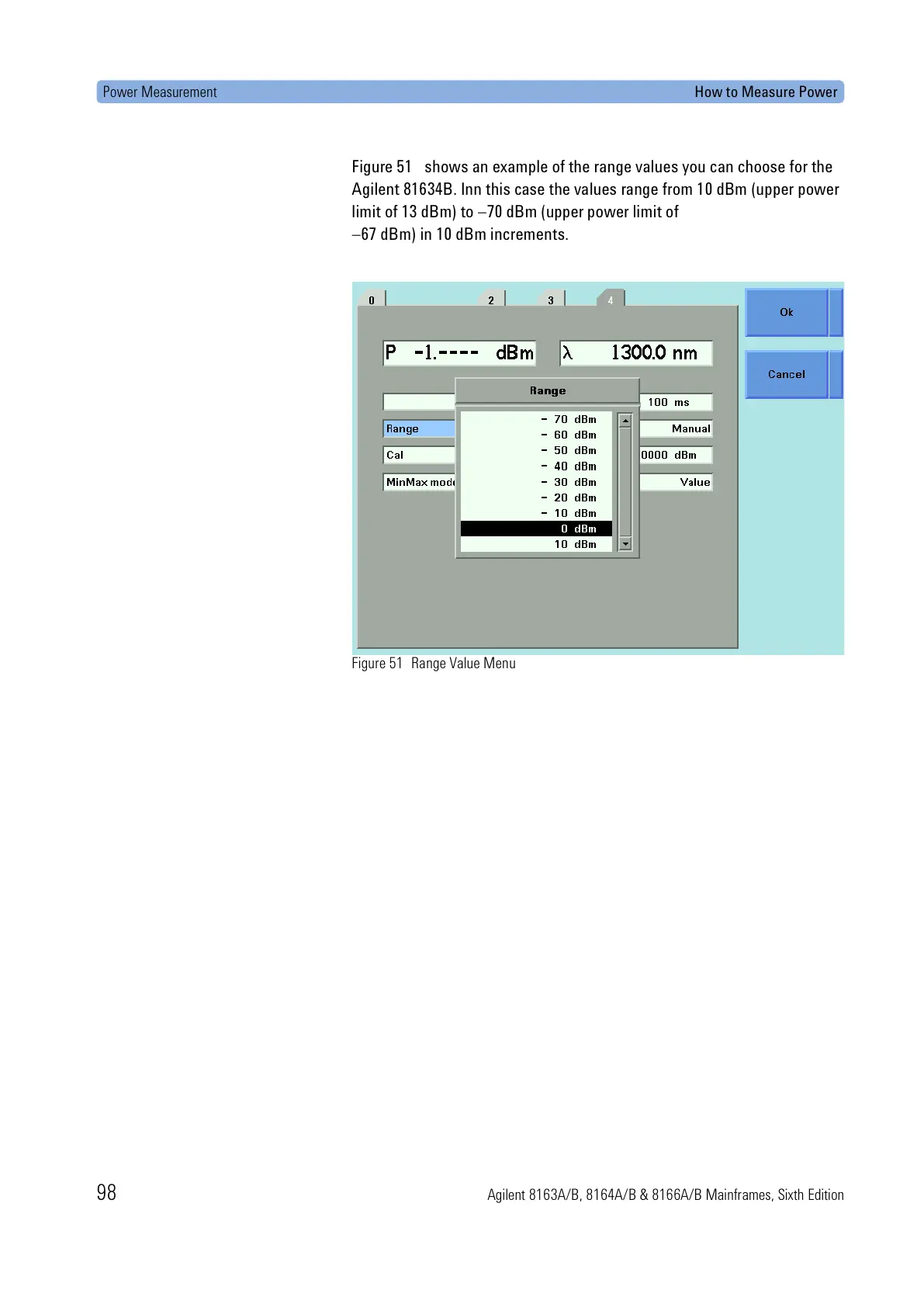

Figure 51 shows an example of the range values you can choose for the

Agilent 81634B. Inn this case the values range from 10 dBm (upper power

limit of 13 dBm) to −70 dBm (upper power limit of

−67 dBm) in 10 dBm increments.

Figure 51 Range Value Menu
