Applications The Logging Application

250 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Analysing a Logging Application

You can access the Logging Analysis screen after the logging application

completes, by completing the following instructions:

1 You cannot access the Logging Analysis screen from the graph. If you are

viewing the graph, press [Close].

2 Press [Analysis]. The Logging Analysis screen appears as shown in Figure 152

for the Agilent 8164A/B and Figure 149 for the Agilent 8163B. \

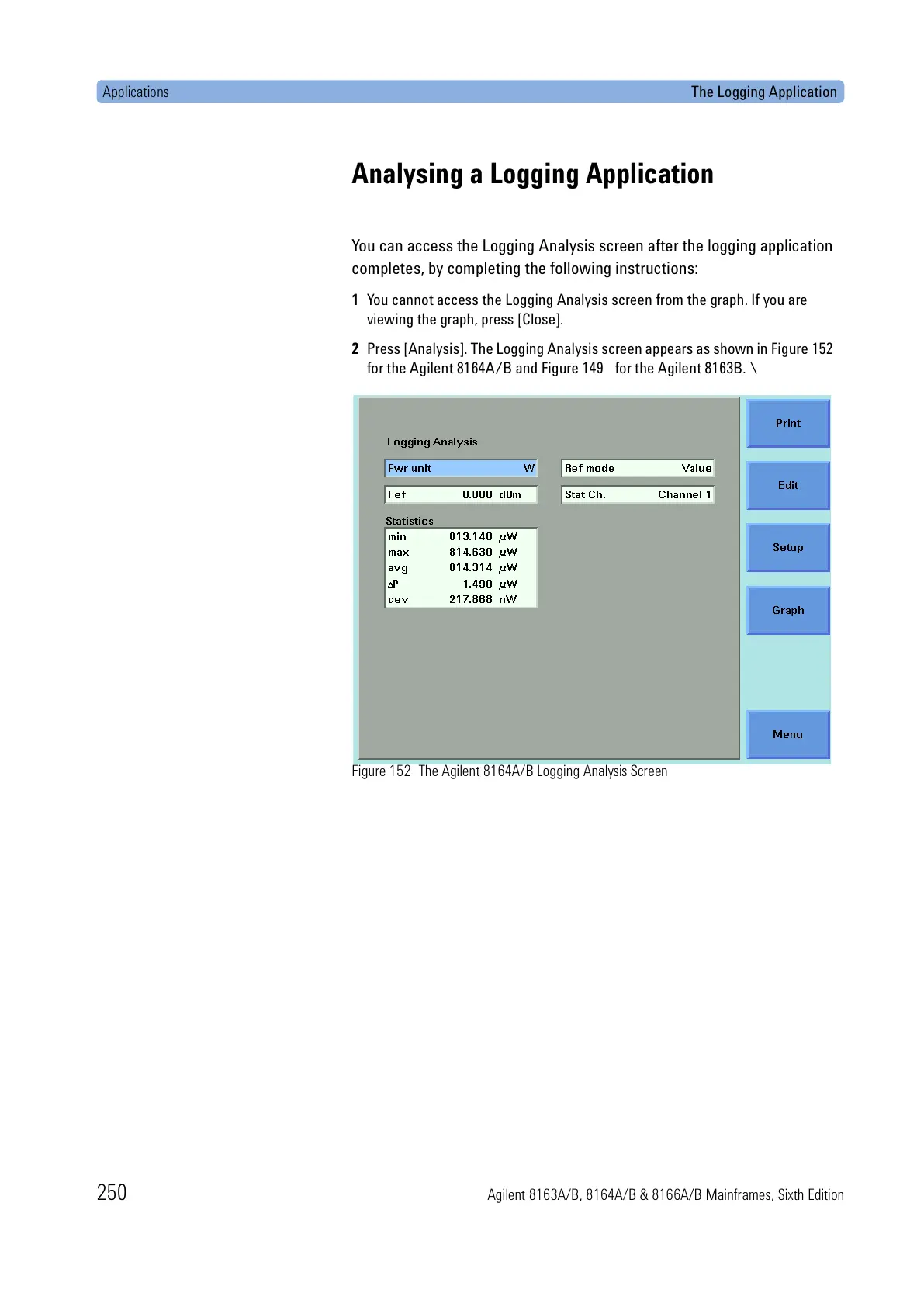

Figure 152 The Agilent 8164A/B Logging Analysis Screen
