Installation and Maintenance Using Modules
306 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

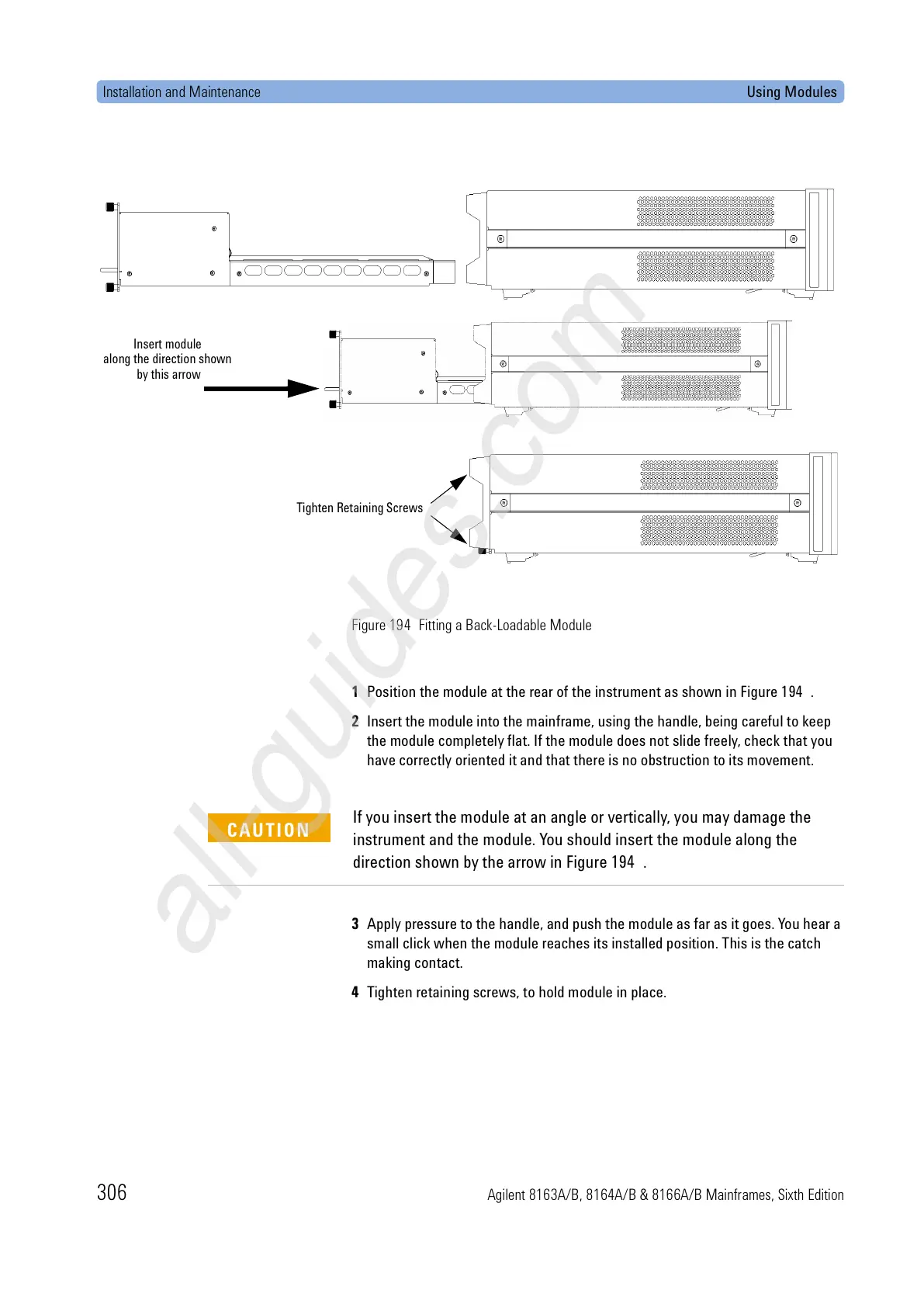

Figure 194 Fitting a Back-Loadable Module
1 Position the module at the rear of the instrument as shown in Figure 194 .
2 Insert the module into the mainframe, using the handle, being careful to keep
the module completely flat. If the module does not slide freely, check that you
have correctly oriented it and that there is no obstruction to its movement.
3 Apply pressure to the handle, and push the module as far as it goes. You hear a
small click when the module reaches its installed position. This is the catch
making contact.
4 Tighten retaining screws, to hold module in place.
Tighten Retaining Screws
Insert module
along the direction shown
by this arrow
If you insert the module at an angle or vertically, you may damage the
instrument and the module. You should insert the module along the
direction shown by the arrow in Figure 194 .
CAUTION
