Return Loss Measurement Return Loss Measurement

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 175

para

is power at the source monitor diode when making a

terminated/parasitic calibration.

ref

is the return loss reference value set by the user for the reference

calibration.

These parameters are made available using the "Show Calibration " menu

item, or using the GPIB query:

SENSe [n ]:[CHANnel [m ]]:RETurnloss:CALibration:VALUES?

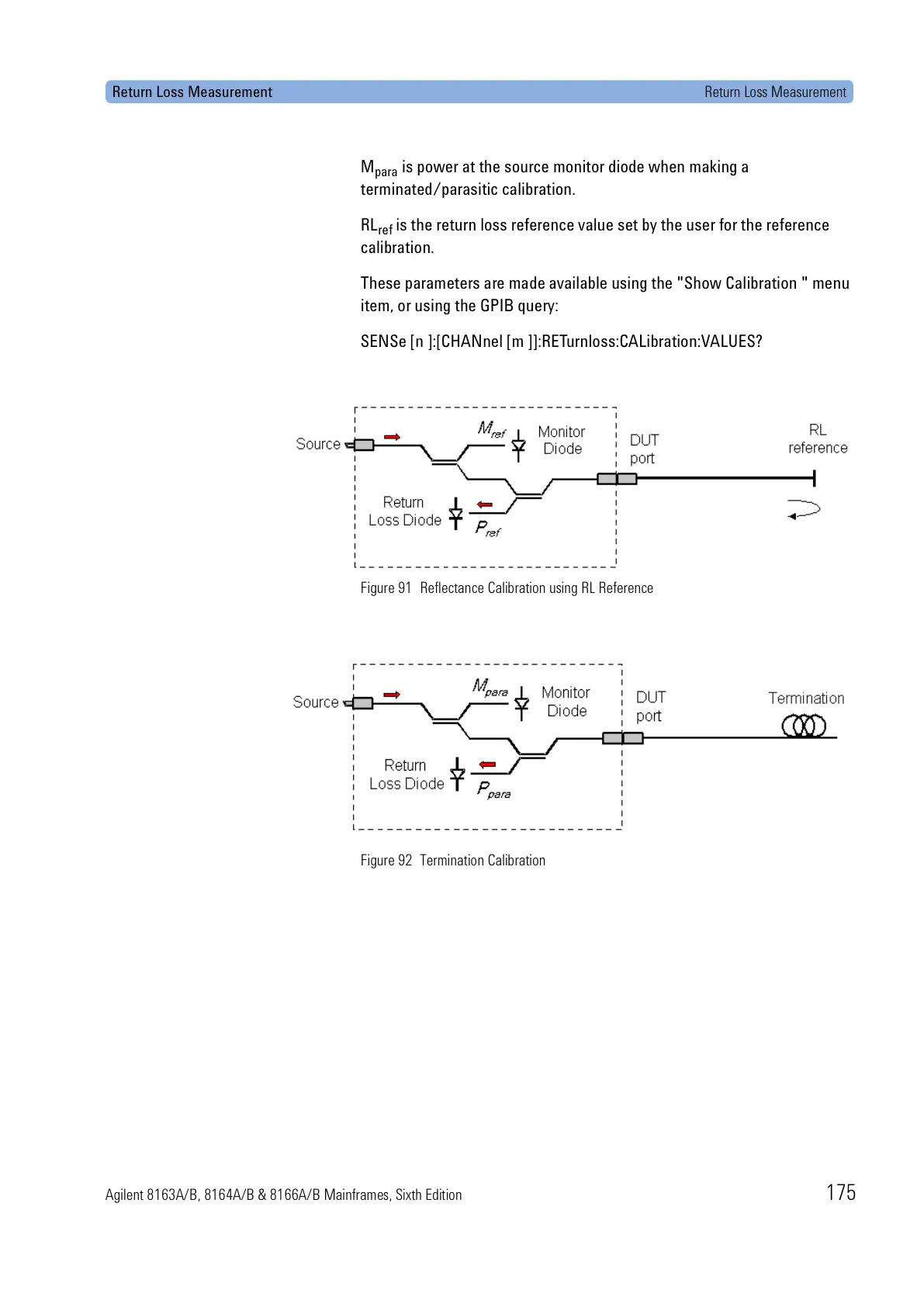

Figure 91 Reflectance Calibration using RL Reference

Figure 92 Termination Calibration
