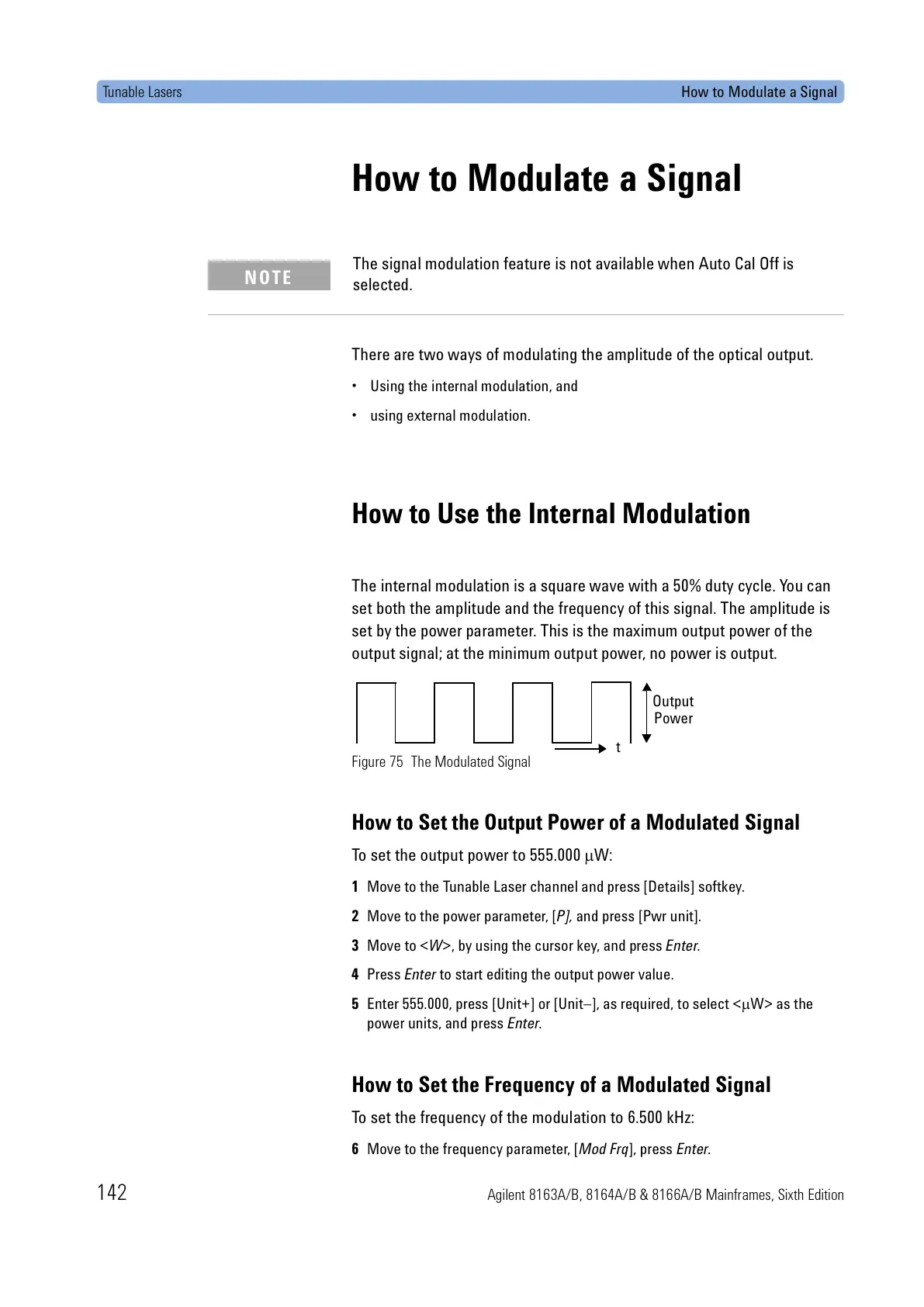

Tunable Lasers How to Modulate a Signal
142 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition
How to Modulate a Signal
There are two ways of modulating the amplitude of the optical output.
• Using the internal modulation, and
• using external modulation.
How to Use the Internal Modulation
The internal modulation is a square wave with a 50% duty cycle. You can
set both the amplitude and the frequency of this signal. The amplitude is
set by the power parameter. This is the maximum output power of the
output signal; at the minimum output power, no power is output.
Figure 75 The Modulated Signal
How to Set the Output Power of a Modulated Signal
To set the output power to 555.000 µW:
1 Move to the Tunable Laser channel and press [Details] softkey.
2 Move to the power parameter, [P], and press [Pwr unit].
3 Move to <W>, by using the cursor key, and press Enter.
4 Press Enter to start editing the output power value.
5 Enter 555.000, press [Unit+] or [Unit−], as required, to select <µW> as the
power units, and press Enter.
How to Set the Frequency of a Modulated Signal
To set the frequency of the modulation to 6.500 kHz:
6 Move to the frequency parameter, [Mod Frq], press Enter.
The signal modulation feature is not available when Auto Cal Off is
selected.
NOTE
Output
Power
t
