Performance Tests Performance Test Instructions

354 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Performance Test Instructions

Parameters to be tested:

• Backplane Connectors by Module Performance Test

• Power Supply by Module Interaction Test

• Display by Keystroke Test

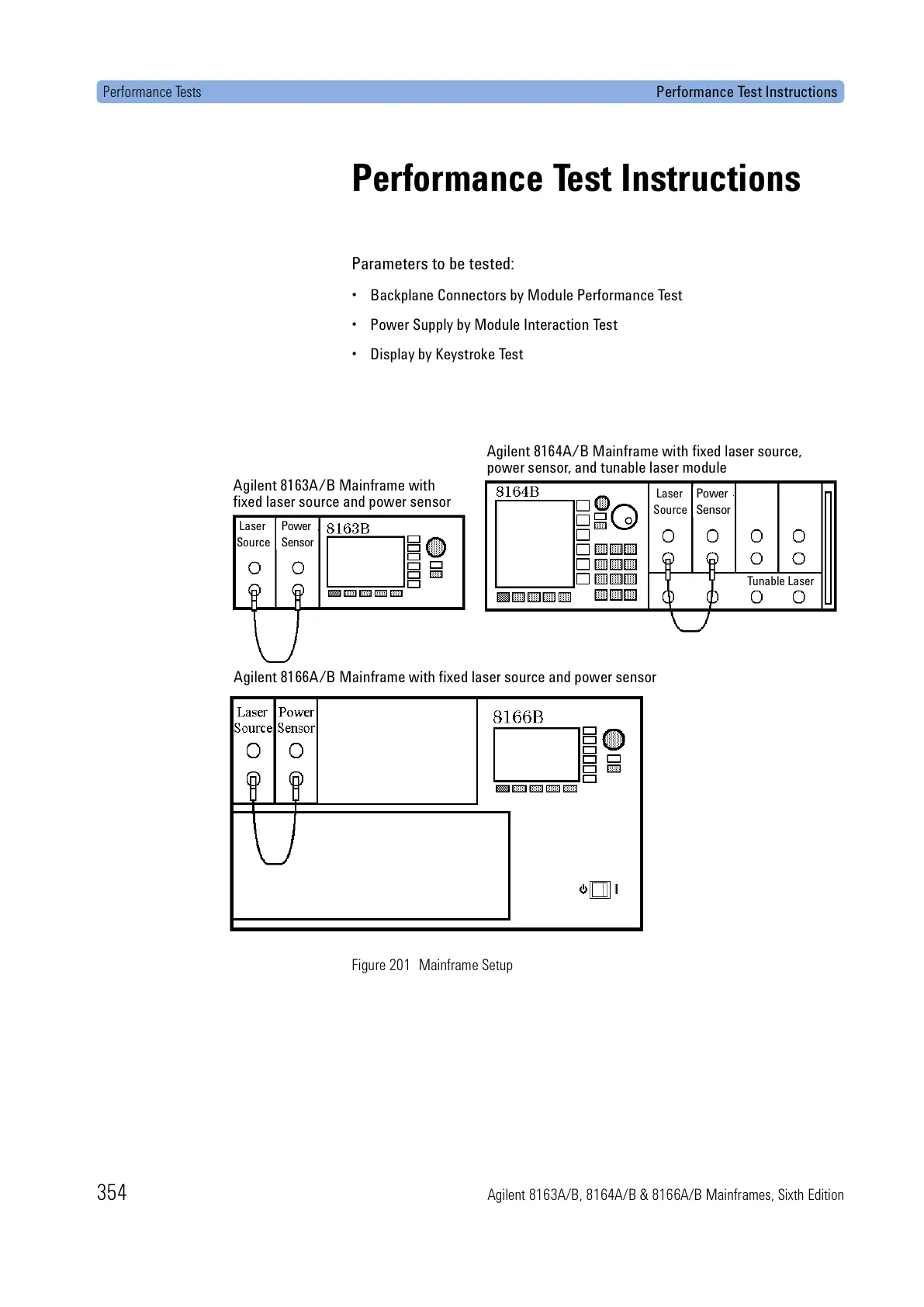

Figure 201 Mainframe Setup

Agilent 8166A/B Mainframe with fixed laser source and power sensor

Power

Sensor

Laser

Source

Power

Sensor

Laser

Source

Agilent 8163A/B Mainframe with

fixed laser source and power sensor

Agilent 8164A/B Mainframe with fixed laser source,

power sensor, and tunable laser module

Tunable Laser
