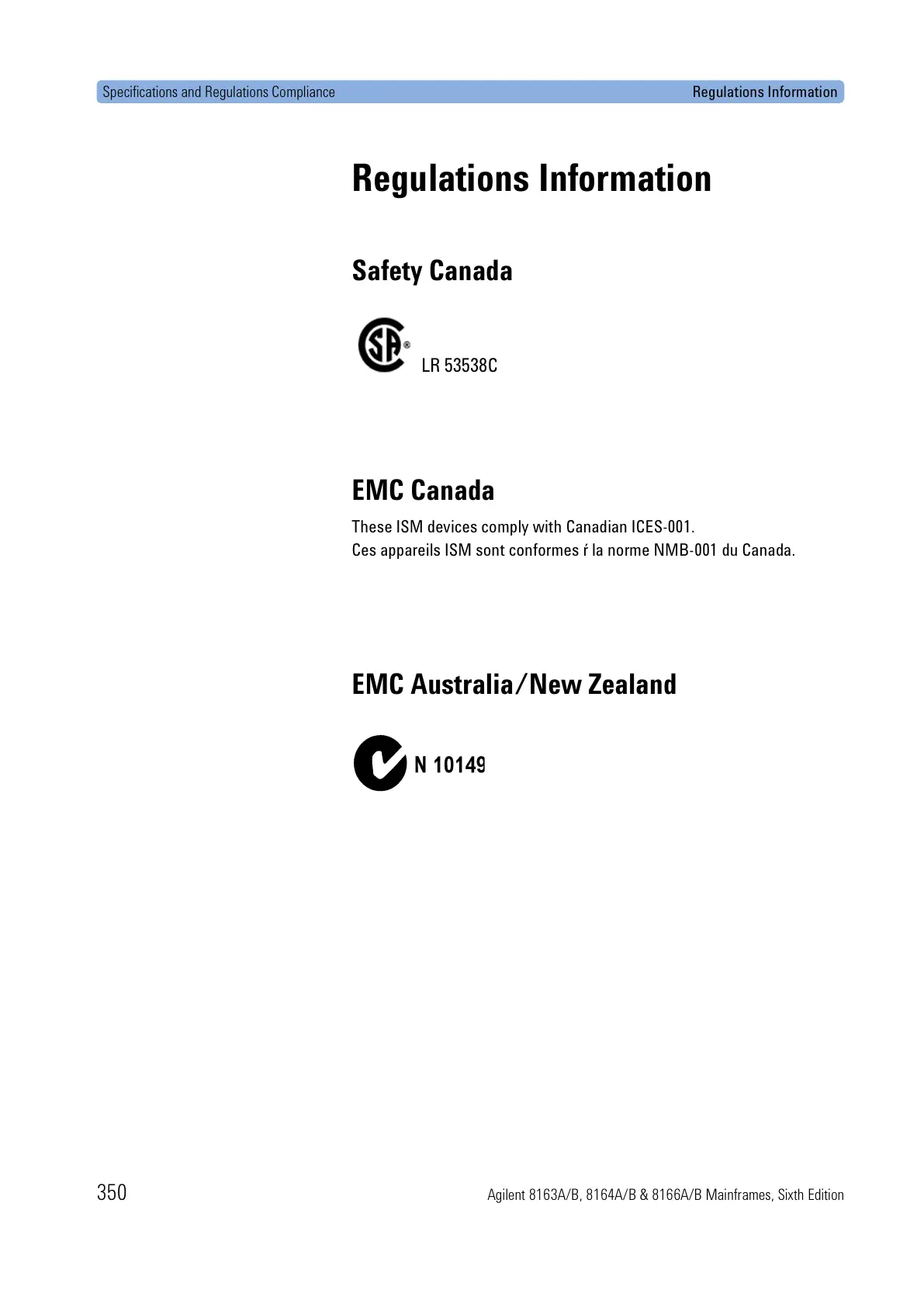

Specifications and Regulations Compliance Regulations Information

350 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Regulations Information

Safety Canada

EMC Canada

These ISM devices comply with Canadian ICES-001.

Ces appareils ISM sont conformes ŕ la norme NMB-001 du Canada.

EMC Australia/New Zealand

LR 53538C

All manuals and user guides at all-guides.com
