Tunable Lasers How to Perform a Wavelength Sweep

136 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

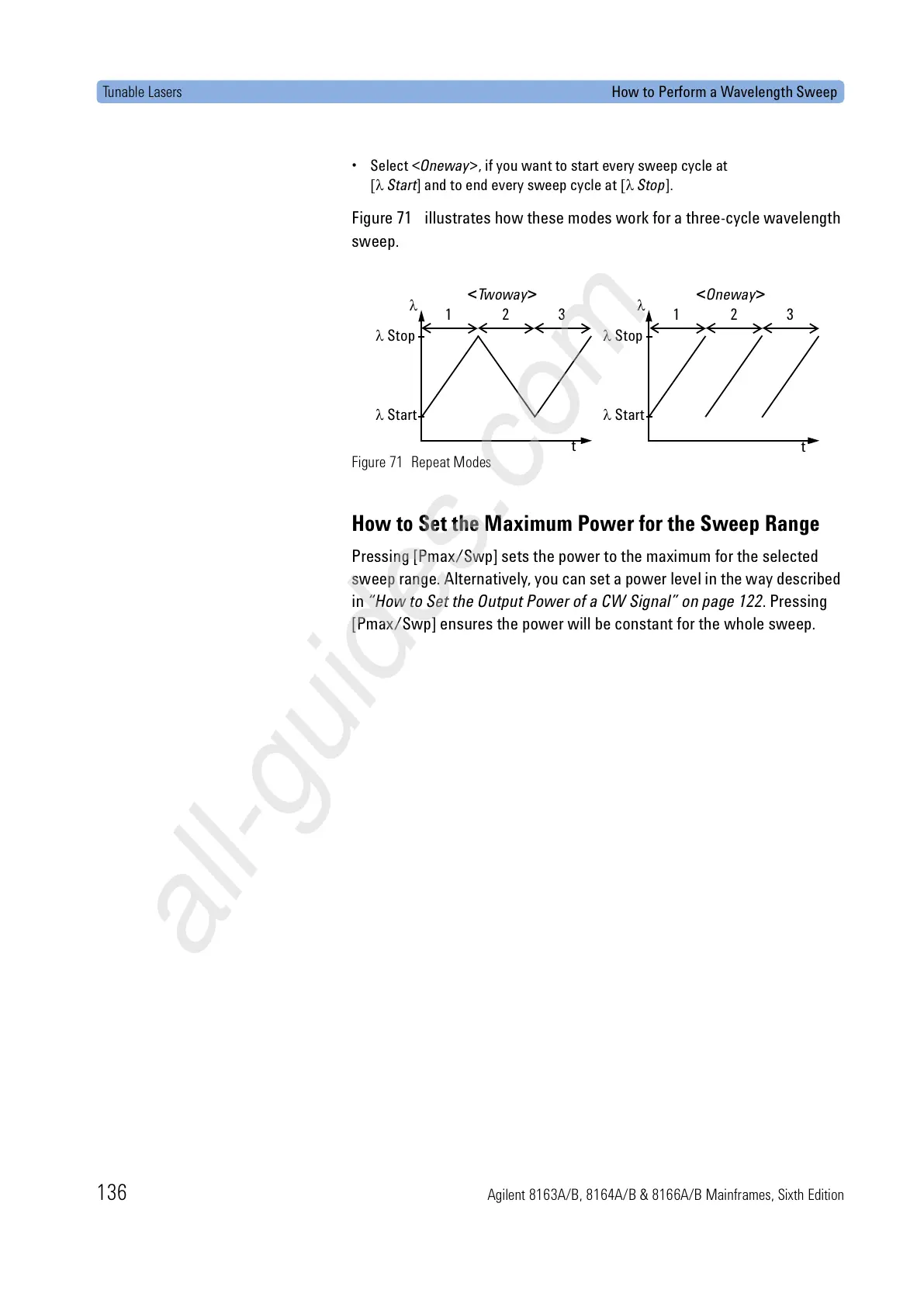

• Select <Oneway>, if you want to start every sweep cycle at

[λ Start] and to end every sweep cycle at [λ Stop].

Figure 71 illustrates how these modes work for a three-cycle wavelength

sweep.

Figure 71 Repeat Modes

How to Set the Maximum Power for the Sweep Range

Pressing [Pmax/Swp] sets the power to the maximum for the selected

sweep range. Alternatively, you can set a power level in the way described

in “How to Set the Output Power of a CW Signal” on page 122. Pressing

[Pmax/Swp] ensures the power will be constant for the whole sweep.

λ Start

λ Stop

λ Start

λ Stop

123 123
