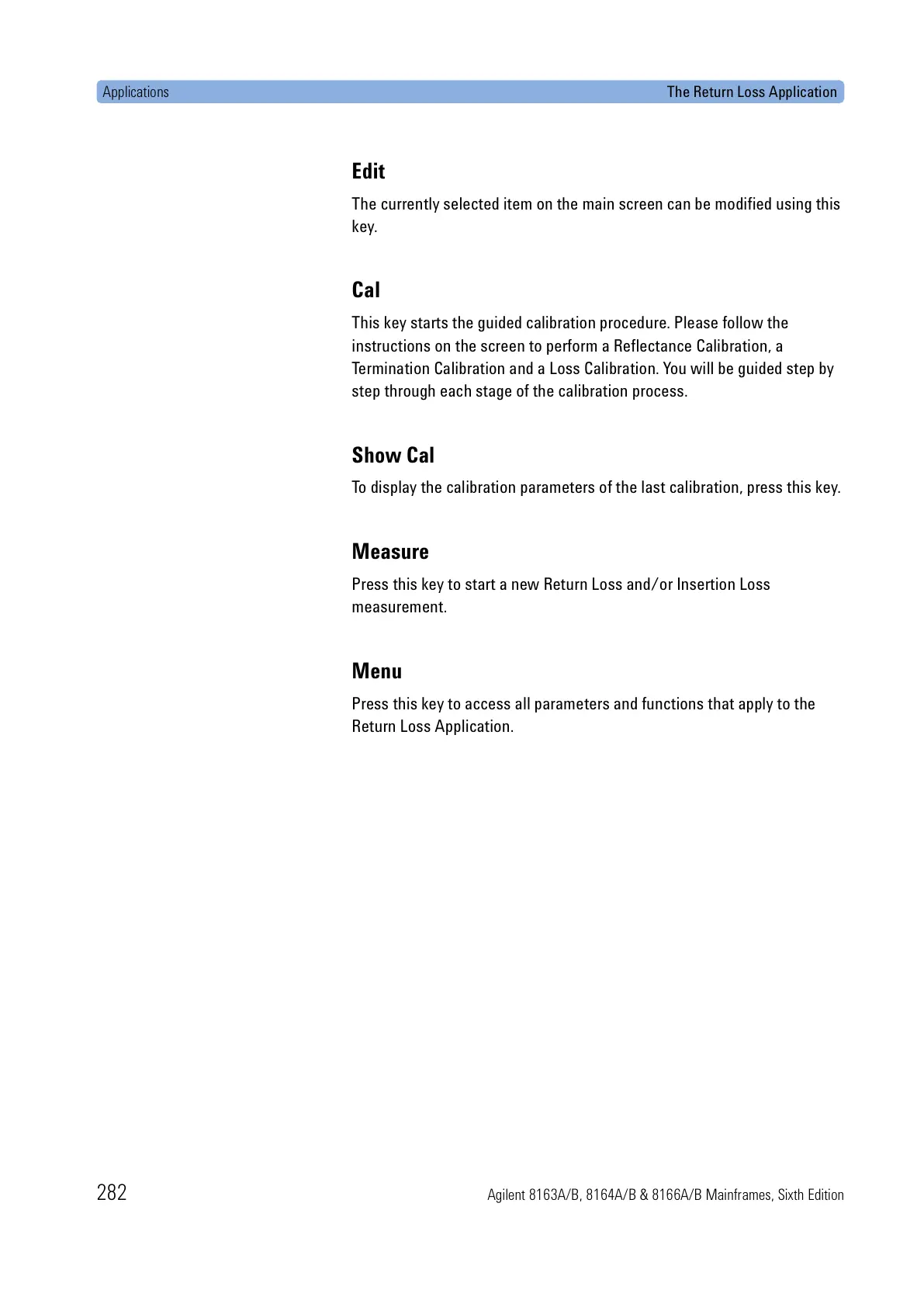

Applications The Return Loss Application

282 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Edit

The currently selected item on the main screen can be modified using this

key.

Cal

This key starts the guided calibration procedure. Please follow the

instructions on the screen to perform a Reflectance Calibration, a

Termination Calibration and a Loss Calibration. You will be guided step by

step through each stage of the calibration process.

Show Cal

To display the calibration parameters of the last calibration, press this key.

Measure

Press this key to start a new Return Loss and/or Insertion Loss

measurement.

Press this key to access all parameters and functions that apply to the

Return Loss Application.
