Test R ec ord Performance Tests
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 377

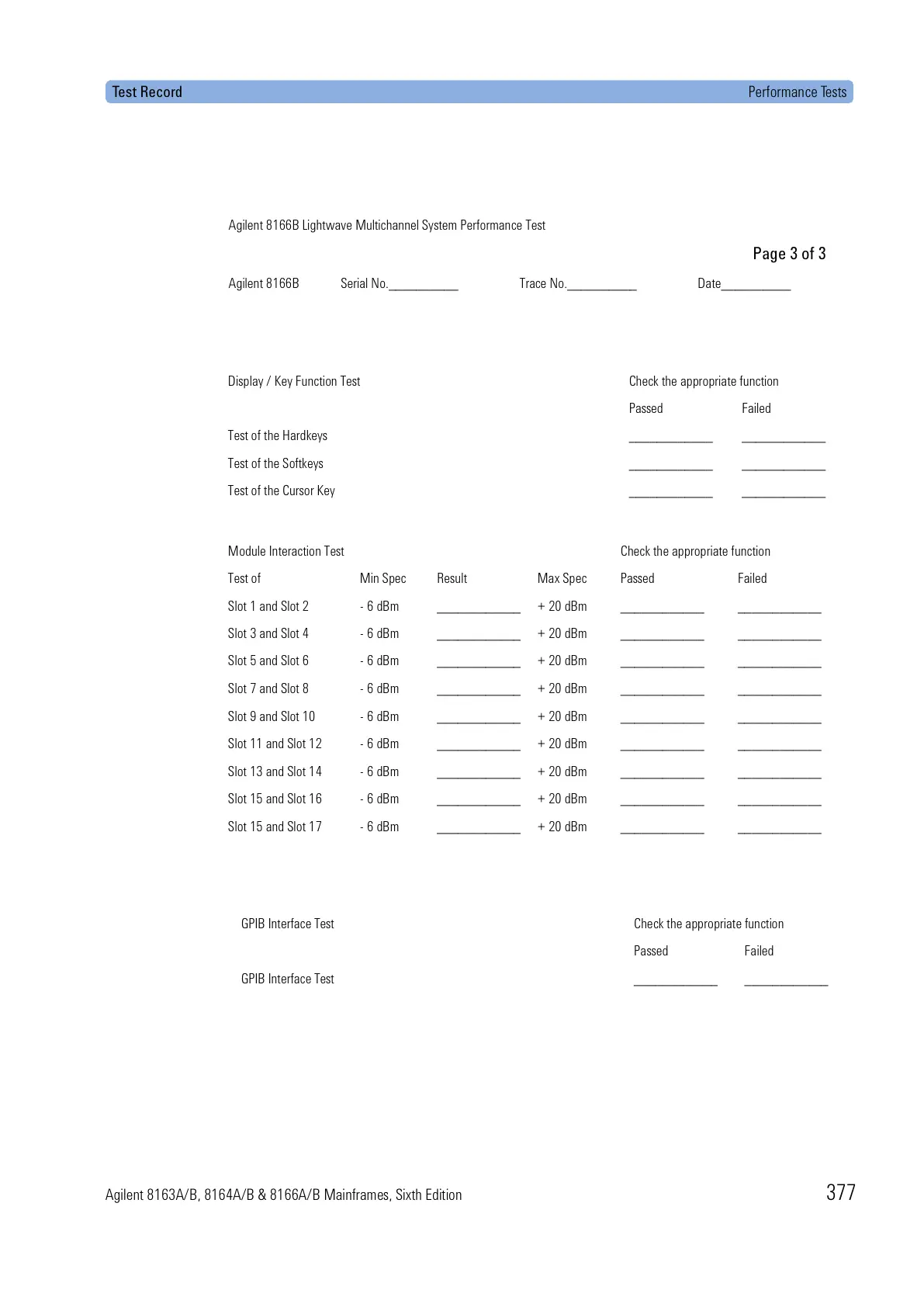

Agilent 8166B Lightwave Multichannel System Performance Test
Page 3 of 3
Agilent 8166B Serial No.__________ Trace No.__________ Date__________
Display / Key Function Test Check the appropriate function
Passed Failed
Test of the Hardkeys ____________ ____________
Test of the Softkeys ____________ ____________
Test of the Cursor Key ____________ ____________
Module Interaction Test Check the appropriate function
Test of Min Spec Result Max Spec Passed Failed
Slot 1 and Slot 2 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 3 and Slot 4 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 5 and Slot 6 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 7 and Slot 8 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 9 and Slot 10 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 11 and Slot 12 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 13 and Slot 14 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 15 and Slot 16 - 6 dBm ____________ + 20 dBm ____________ ____________
Slot 15 and Slot 17 - 6 dBm ____________ + 20 dBm ____________ ____________
GPIB Interface Test Check the appropriate function
Passed Failed
GPIB Interface Test ____________ ____________
