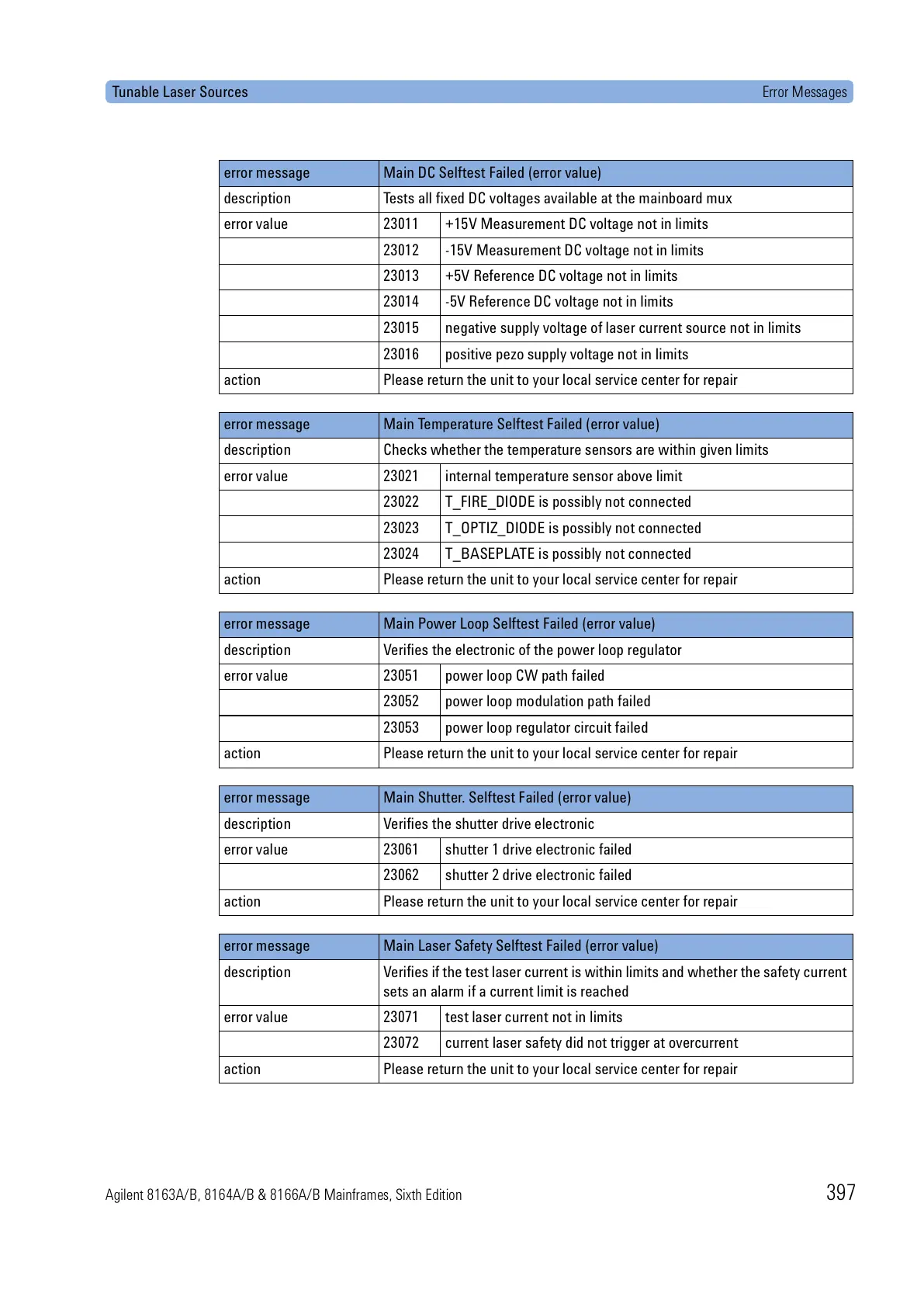

Tuna ble Laser S ou rces Error Messages
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 397
error message Main DC Selftest Failed (error value)
description Tests all fixed DC voltages available at the mainboard mux
error value 23011 +15V Measurement DC voltage not in limits
23012 -15V Measurement DC voltage not in limits
23013 +5V Reference DC voltage not in limits
23014 -5V Reference DC voltage not in limits
23015 negative supply voltage of laser current source not in limits
23016 positive pezo supply voltage not in limits
action Please return the unit to your local service center for repair
error message Main Temperature Selftest Failed (error value)
description Checks whether the temperature sensors are within given limits
error value 23021 internal temperature sensor above limit
23022 T_FIRE_DIODE is possibly not connected
23023 T_OPTIZ_DIODE is possibly not connected
23024 T_BASEPLATE is possibly not connected
action Please return the unit to your local service center for repair
error message Main Power Loop Selftest Failed (error value)
description Verifies the electronic of the power loop regulator
error value 23051 power loop CW path failed
23052 power loop modulation path failed
23053 power loop regulator circuit failed
action Please return the unit to your local service center for repair
error message Main Shutter. Selftest Failed (error value)
description Verifies the shutter drive electronic
error value 23061 shutter 1 drive electronic failed
23062 shutter 2 drive electronic failed
action Please return the unit to your local service center for repair
error message Main Laser Safety Selftest Failed (error value)
description Verifies if the test laser current is within limits and whether the safety current
sets an alarm if a current limit is reached
error value 23071 test laser current not in limits
23072 current laser safety did not trigger at overcurrent
action Please return the unit to your local service center for repair
