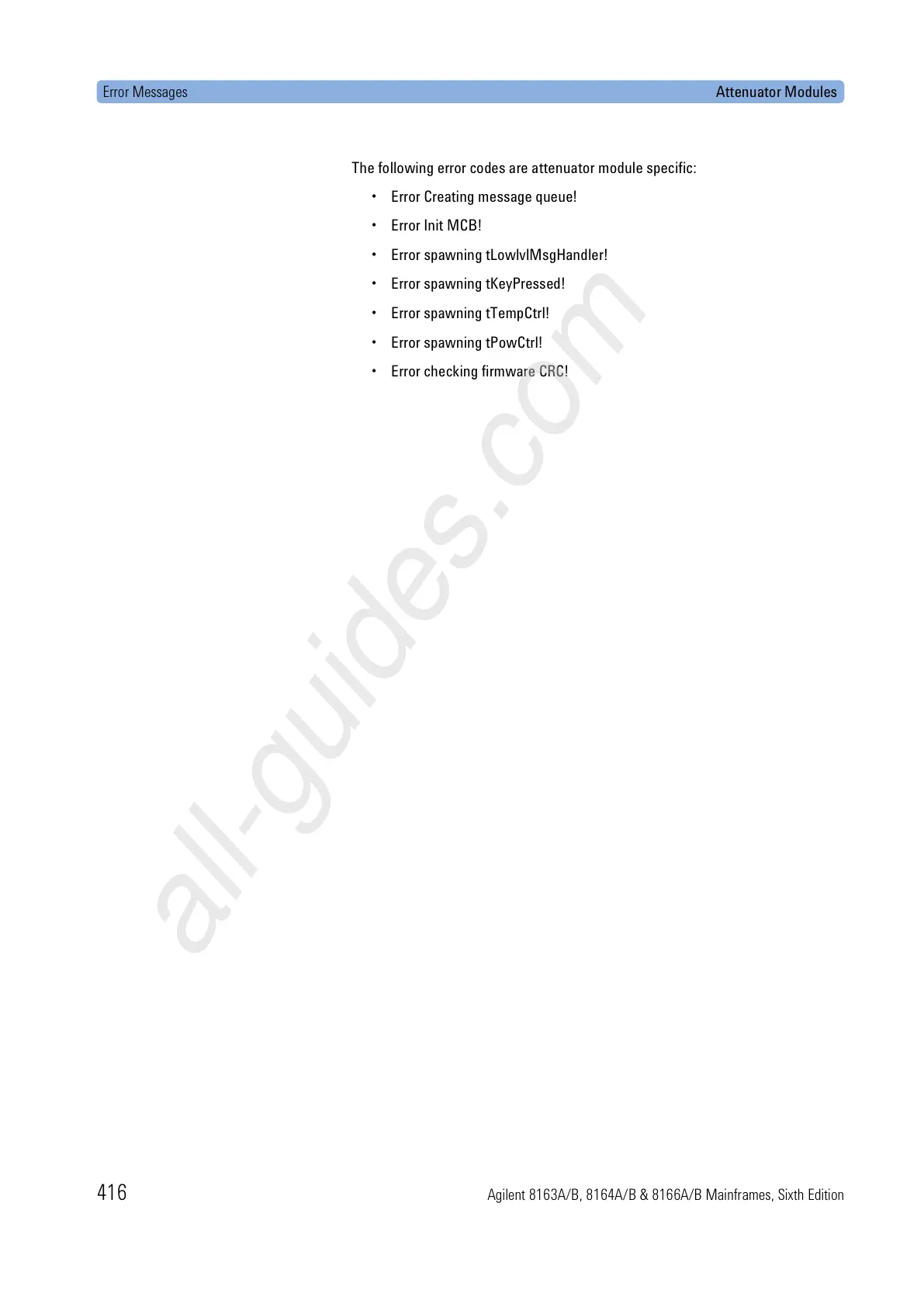

Error Messages Attenuator Modules

416 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

The following error codes are attenuator module specific:

• Error Creating message queue!

•Error Init MCB!

• Error spawning tLowlvlMsgHandler!

• Error spawning tKeyPressed!

• Error spawning tTempCtrl!

• Error spawning tPowCtrl!

• Error checking firmware CRC!
