For details on each key,
use key help as described
on page 44.

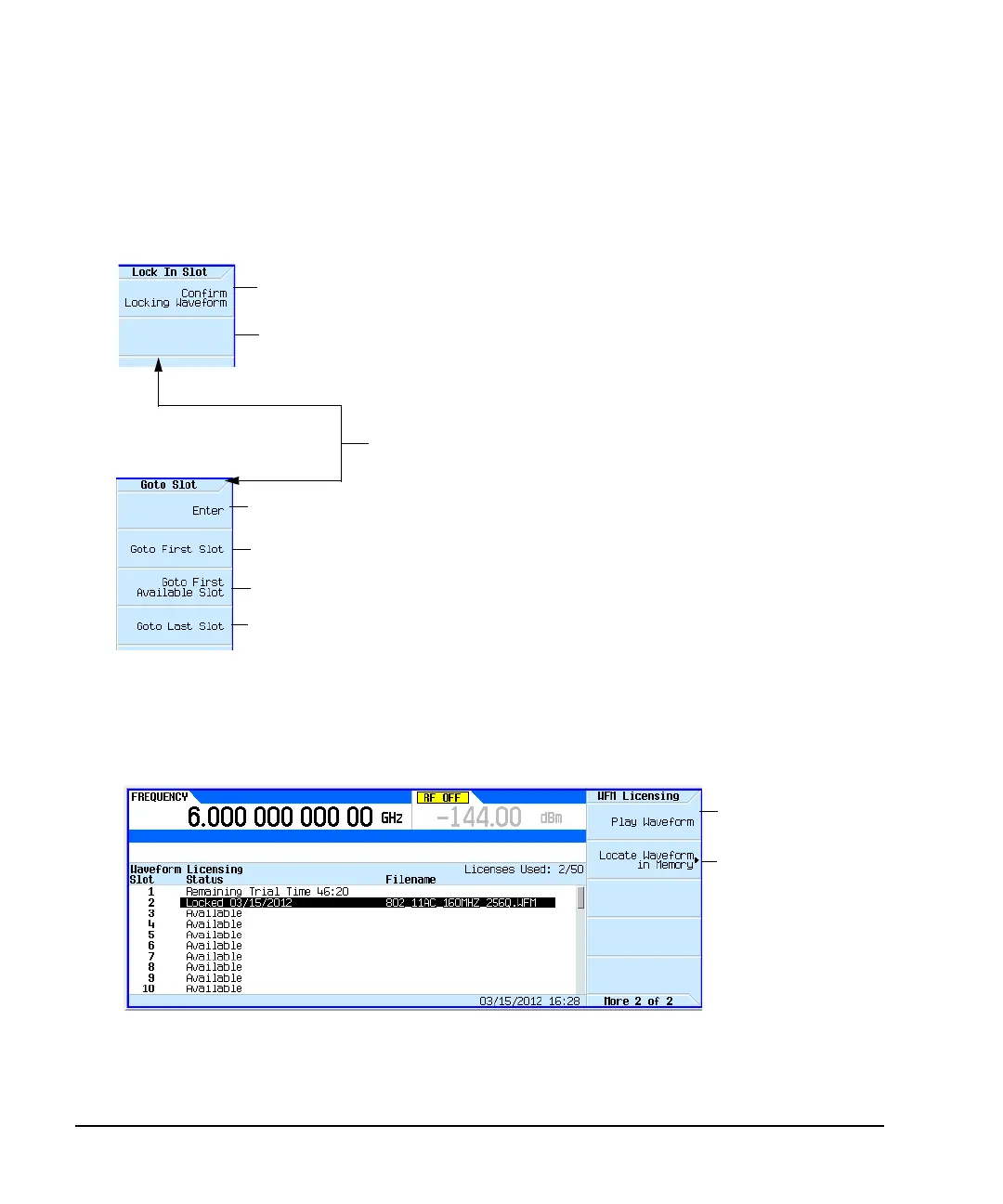

Mode > Dual ARB > More >
Waveform Licensing > Goto Slot
Press this softkey after entering a specific slot number using the front panel
numeric pad.
Press this softkey to go to the first slot.
Press this softkey to go to the first slot whose status is available.
Press this softkey to go to the last slot. The number of slots depends on the number of
licensing options installed on the instrument.
Mode > Dual ARB > More > Waveform Licensing
> Lock Waveform in Slot
This softkey is displayed if the waveform is not found in the internal storage
memory of the signal generator. Press this softkey to store the waveform into the
Internal Storage and to activate the Confirm Locking Waveform softkey. Refer to
Step 4 on page 243
.
Mode > Dual ARB > More > Waveform
Licensing > More > More
Press this softkey to play
the waveform in the
highlighted slot.
Press this softkey to
locate the waveform in
memory that was added
to this slot regardless of
the name. If the search
returms no results, the
original waveform has
been deleted from
memory and cannot be
found.
Press this softkey to confirm that you want to lock the waveform into the slot for
permanent licensing. If the waveform has not been saved to internal storage, a
warning message appears. Refer to Step 4 on page 243
.
Refer to the SCPI Command Reference
for related license commands.
