Basic Digital Operation (Option 653/655/656/657)
Waveform Licensing
4. License the waveform:
a. Press Lock Waveform in Slot.
A warning is displayed: *** Waveform Lock Warning!!! ***. If necessary, verify you have
selected the correct waveform you want for licensing by pressing Return.

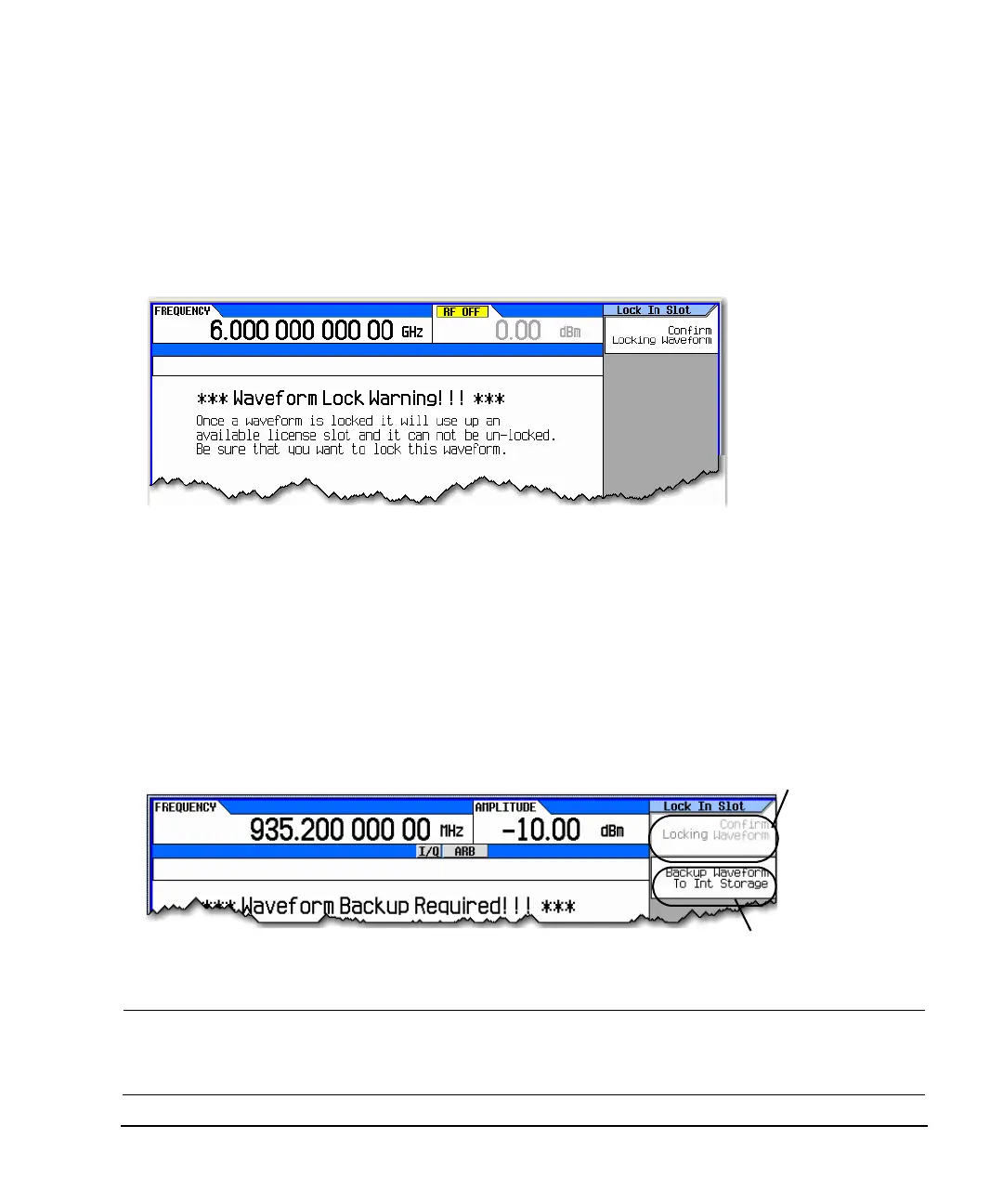

Figure 8-37 Waveform Lock Warning
b. Press Confirm Locking Waveform.
The licensing status of the slot will be changed to Locked MM/DD/YY.
c. If the waveform has not been previously backed up in internal storage, a warning is displayed:
*** Waveform Backup Required!!! ***.
d. Make a backup copy of this waveform on a USB media or a computer before pressing Backup
Waveform to Int Storage. (If the waveform is lost or deleted on the signal generator, it cannot be
recovered).
Figure 8-38 Backup Waveform To Int Storage softkey
CAUTION It is important that you make a backup copy of any waveforms that you are licensing.
Do not store the backup copy on the signal generator. If all copies of the waveforms
are deleted or lost, there is no way to recover the waveform or reassign the license.
Refer to “Working with Files” on page 61.
Press this softkey to store
the waveform into the internal
storage and to activate the Confirm
Locking Waveform softkey.
The Confirm Locking
Waveform softkey remains
inactive until the waveform is
stored in internal storage.
To Next Page
