Alesis Fusion Reference Manual

Chapter 3: Fusion Modes
3
173

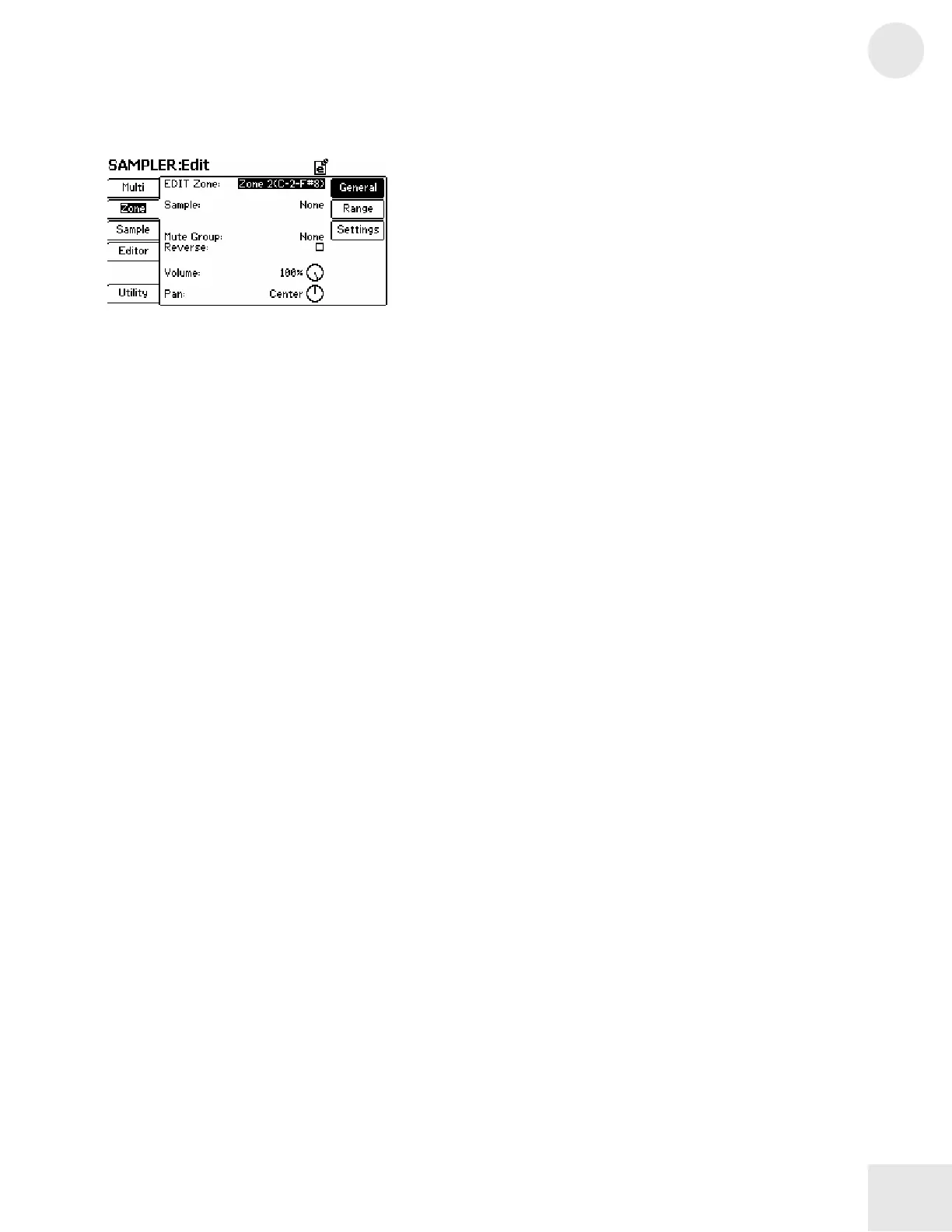

Setting Individual Zone Settings
Menu: Sampler/Zone/General
Parameter: EDIT Zone
Value Range: (varies depending on number of zones created)
Select the zone you’d like to edit using this parameter.
Menu: Sampler/Zone/General
Parameter: Sample
Value Range: (varies)
This parameter lets you select a sample for the current zone. The top
row you select the bank whereas the bottom row lets you select an
individual sample.
Menu: Sampler/Zone/General
Parameter: Mute Group
Value Range: None, Self, A – P
This allows you to mute one or more zones when another zone is played.
For example, let’s say you’re sampling a hi-hat in a drum kit. When you
play an open hi-hat and then follow it with a closed hi-hat, the closed hi-
hat stops the open hat from ringing. By assigning these zones to the
same mute group (groups range from A through P) you can have one
sample mute a second sample as soon as the first one is triggered.
Menu: Sampler/Zone/General
Parameter: Reverse
Value Range: On, Off
Check this box to make the sample in the selected zone play backwards.
Menu: Sampler/Zone/General
Parameter: Volume
Value Range: 0 – 100%
Sets the volume of the selected zone. Note that the volume for each
zone can be set independently.

Alesis Fusion Specifications

General

Type	Workstation
Polyphony	64 voices
Synthesis Types	Sample Playback, Virtual Analog, FM, Physical Modeling
Display	240 x 128 pixel LCD
MIDI	In, Out, Thru
RAM	64MB (expandable to 192MB)
Weight (61-key)	28 lbs
Keyboard	61 or 88 keys
Keyboard Type	Semi-weighted (61-key), Hammer action (88-key)
Effects	Reverb, Chorus, Delay, Flanger, Phaser, Distortion, EQ
Storage	40GB internal hard drive
Sampling	Yes
Inputs	2 x 1/4" inputs, 1 x XLR
Outputs	4 x 1/4" outputs, 1 x Headphone
