Alesis Fusion Reference Manual

3
Chapter 3: Fusion Modes
62

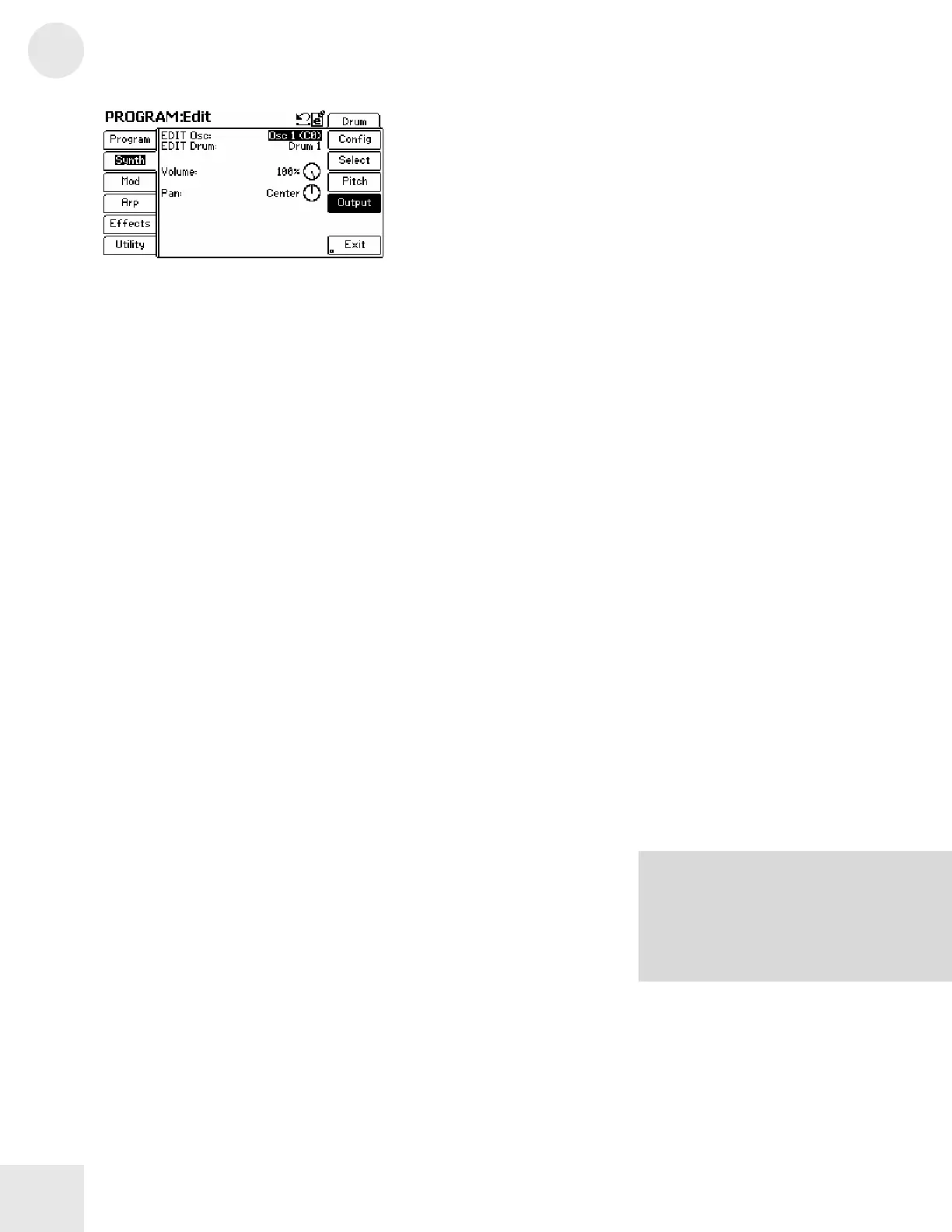

Menu: Program/Synth/Drum/Output
Parameter: EDIT Osc
Value Range: Osc 1 to Osc 64
Choose the oscillator you’d like to edit.
Menu: Program/Synth/Drum/Output
Parameter: EDIT Drum
Value Range: Drum 1 to Drum 4
Each oscillator in the Drum Synthesis type can have up to four drum
parts. Select the individual drum sound you’d like to edit here.
Menu: Program/Synth/Drum/Output
Parameter: Volume
Value Range: 0 to 100%
This parameter sets the volume of each individual drum sound for one
oscillator. This is different from the “Osc Volume” parameter found in
the Synth/Osc/Output menu because it lets you adjust drum sounds
relative to one another. The “Osc Volume” parameter, on the other
hand, adjusts the volume of the entire oscillator (i.e., all the drums in that
oscillator).
Menu: Program/Synth/Drum/Output
Parameter: Pan
Value Range: “Optimized to mono,” or L100% to R100%
Sets the pan position of each individual drum. This is different from the
Pan parameter under the Program/Output section because each drum
can be panned to its own position whereas the Program/Output setting
will pan the entire program.
Optimizing to Mono:
This parameter will be replaced by the
words “(Osc is optimized to mono)” if the
“Optimize osc to mono” parameter for that
drum is checked in the Synth/Osc/Output.

Alesis Fusion Specifications

General

Type	Workstation
Polyphony	64 voices
Synthesis Types	Sample Playback, Virtual Analog, FM, Physical Modeling
Display	240 x 128 pixel LCD
MIDI	In, Out, Thru
RAM	64MB (expandable to 192MB)
Weight (61-key)	28 lbs
Keyboard	61 or 88 keys
Keyboard Type	Semi-weighted (61-key), Hammer action (88-key)
Effects	Reverb, Chorus, Delay, Flanger, Phaser, Distortion, EQ
Storage	40GB internal hard drive
Sampling	Yes
Inputs	2 x 1/4" inputs, 1 x XLR
Outputs	4 x 1/4" outputs, 1 x Headphone
