Alesis Fusion Reference Manual

3
Chapter 3: Fusion Modes
74

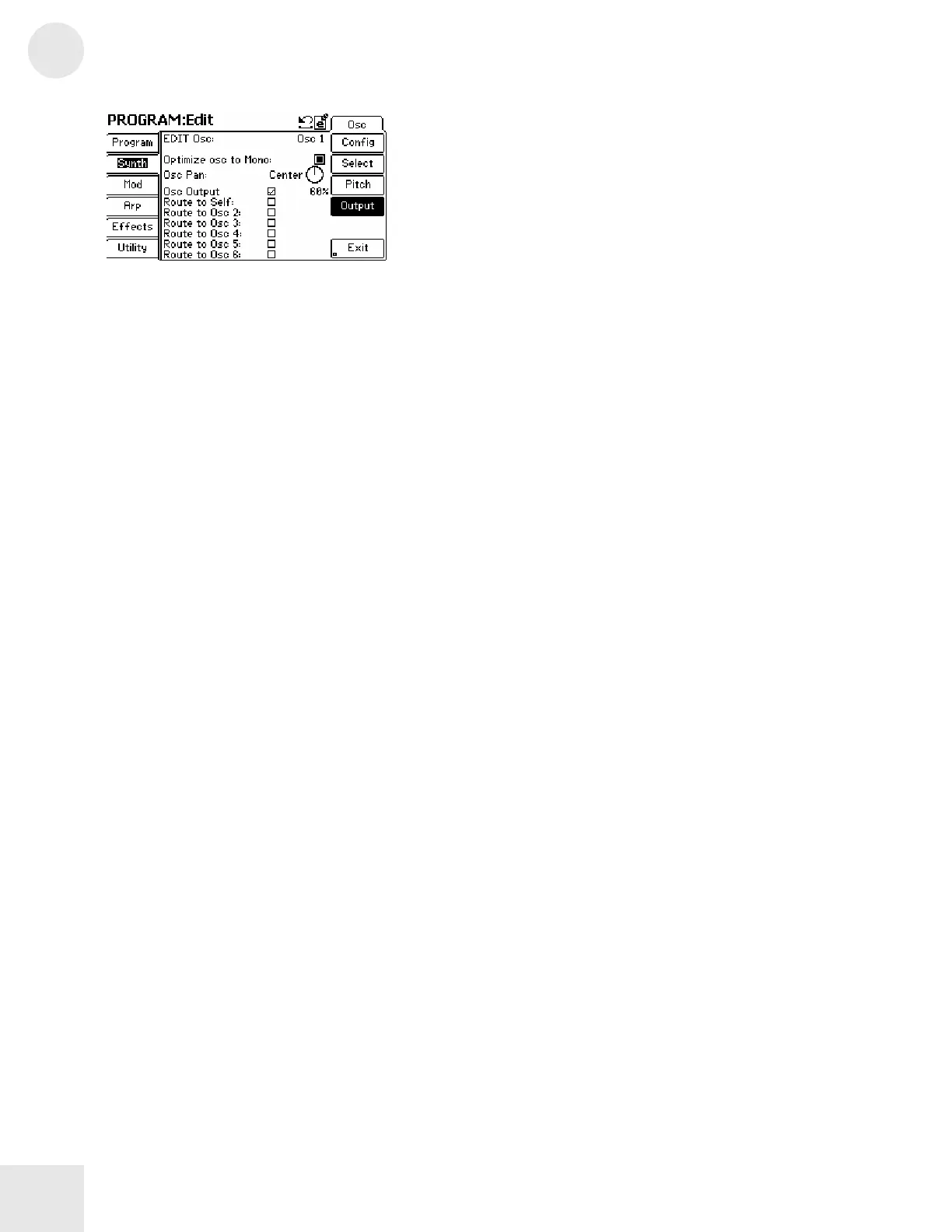

Menu: Program/Synth/Osc/Output
Parameter: EDIT Osc
Value Range: Osc 1 to Osc 6
Choose the oscillator you’d like to edit. Since our synthesis type is set to
FM, you have six oscillators to choose from.
Menu: Program/Synth/Osc/Output
Parameter: Osc Out
Value Range: On, Off
Check this parameter if you want to route your oscillator to the output.
Menu: Program/Synth/Osc/Output
Parameter: Osc Volume (only visible if “Osc Output” box is checked)
Value Range: 0 – 100%
This parameter sets the output volume for the oscillator that is currently
selected. Note that this parameter is only available if the “Osc Out” box
is checked.
Menu: Program/Synth/Osc/Output
Parameter: Route To (All oscillators including self)
Value Range: On, Off
These checkboxes allow you to route the output of your currently
selected oscillator to modulate any other oscillator.
Menu: Program/Synth/Osc/Output
Parameter: Modulation Amount (only visible when the
corresponding “Route To” box is checked)
Value Range: 0 – 100%
This parameter determines how much your source oscillator is going to
modulate the destination oscillator. The higher you set this value, the
more modulation will take place (resulting in richer harmonics).

Alesis Fusion Specifications

General

Type	Workstation
Polyphony	64 voices
Synthesis Types	Sample Playback, Virtual Analog, FM, Physical Modeling
Display	240 x 128 pixel LCD
MIDI	In, Out, Thru
RAM	64MB (expandable to 192MB)
Weight (61-key)	28 lbs
Keyboard	61 or 88 keys
Keyboard Type	Semi-weighted (61-key), Hammer action (88-key)
Effects	Reverb, Chorus, Delay, Flanger, Phaser, Distortion, EQ
Storage	40GB internal hard drive
Sampling	Yes
Inputs	2 x 1/4" inputs, 1 x XLR
Outputs	4 x 1/4" outputs, 1 x Headphone
