Alesis Fusion Reference Manual

Chapter 3: Fusion Modes
3
75
Menu: Program/Synth/Router
Parameter: EDIT Route (Source)
Value Range: Osc 1 to Osc 6
Choose the oscillator you’d like to edit.
Menu: Program/Synth/Router
Parameter: EDIT Route (Destination)
Value Range: Osc 1 to Osc 6, Output
Use this parameter to select where you’d like the oscillator to be routed.
The Fusion allows you to route an oscillator to any other oscillator
(including itself) or to the audio output of the keyboard. Keep in mind it
is possible to connect one source to multiple destinations.

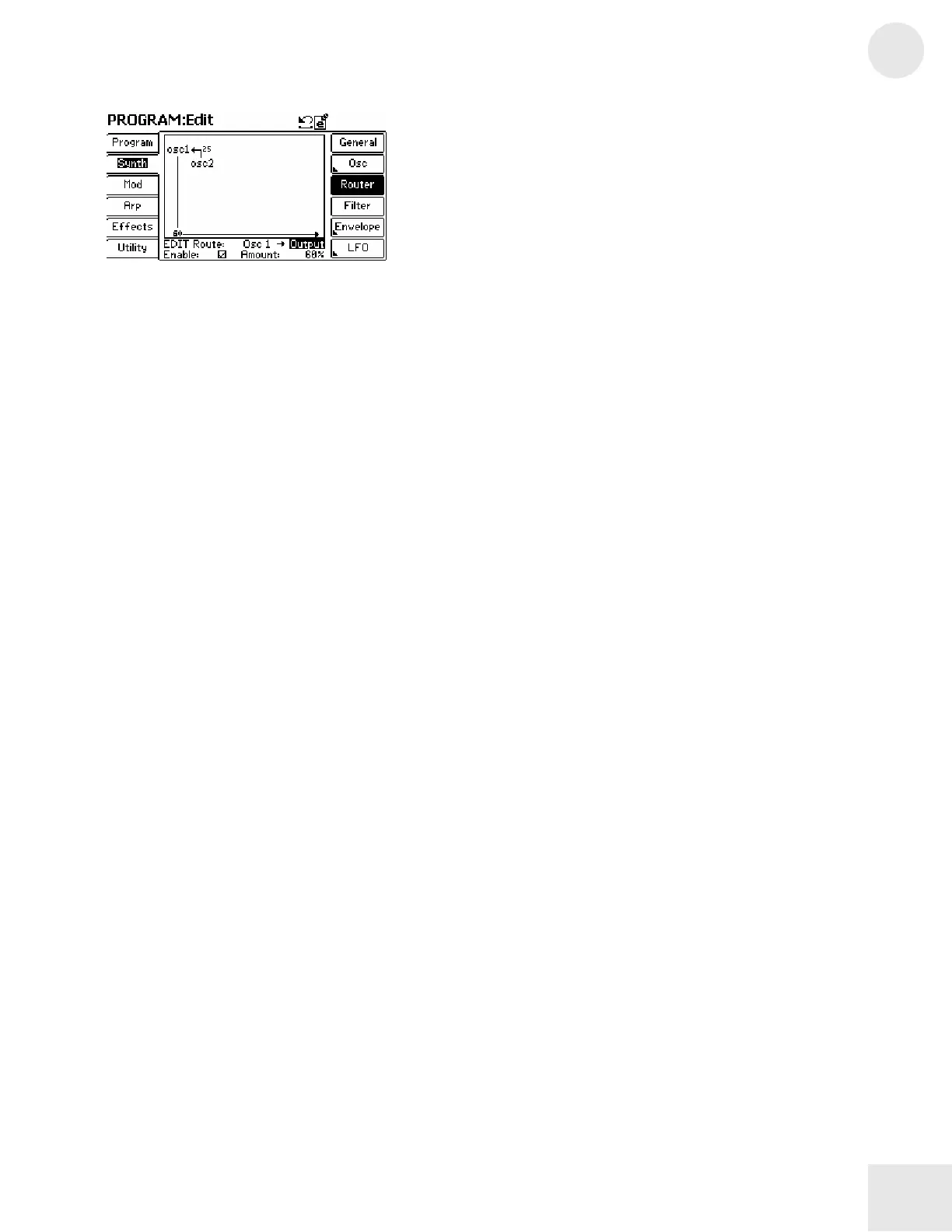

The diagram on the top indicates how each oscillator is routed. Note
that your source is not routed to the destination until the “Enable” box is
checked. Also note in order to modulate an FM route, this box must be
checked. If it is not checked then it will not show up as a possible choice
within the destination choices in the Mod Menu.
Menu: Program/Synth/Router
Parameter: Enable
Value Range: On, Off
This box indicates whether your currently selected source is being routed
to the current destination. To make a connection, select your source and
destinations (see above) and check this box. Conversely, to break a
connection select your source and destinations and uncheck the
“Enable” box.
As stated in the section above, in order to modulate an FM route, the
enable box must be checked. If left unchecked, the FM route will not
show up as a possible choice within the destination choices in the Mod
Menu.

Alesis Fusion Specifications

General

Type	Workstation
Polyphony	64 voices
Synthesis Types	Sample Playback, Virtual Analog, FM, Physical Modeling
Display	240 x 128 pixel LCD
MIDI	In, Out, Thru
RAM	64MB (expandable to 192MB)
Weight (61-key)	28 lbs
Keyboard	61 or 88 keys
Keyboard Type	Semi-weighted (61-key), Hammer action (88-key)
Effects	Reverb, Chorus, Delay, Flanger, Phaser, Distortion, EQ
Storage	40GB internal hard drive
Sampling	Yes
Inputs	2 x 1/4" inputs, 1 x XLR
Outputs	4 x 1/4" outputs, 1 x Headphone
