PLC-5C to PLC-5C Unscheduled Messaging Over Two ControlNet Networks 9-7
3. Click on Who Active.

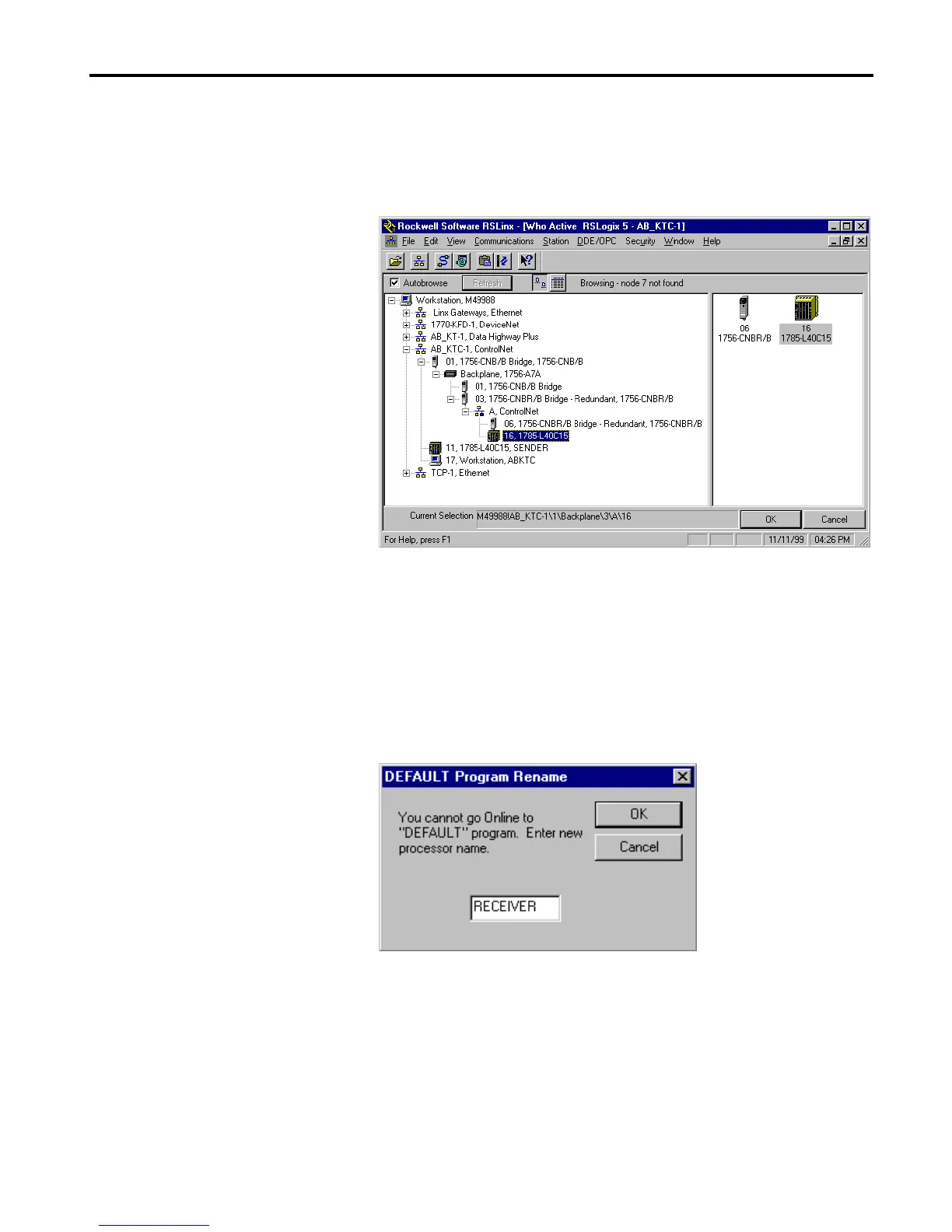

The RSWho window will appear. (Your window may look different
depending upon the drivers and other devices you have installed).
4. Drill down the tree through the ControlNet driver to the PLC-5/40C
processor at ControlNet node 16 (1785-L40C15 in this example).
5. When the System Communications tab reappears, click on the Online
button.
If no program is loaded in the PLC-5C processor, a pop-up window will
appear with the message “You cannot go Online to DEFAULT program.”
6. Enter a new processor name of your choice (e.g., “Receiver”) and click
on OK.
• Disregard any warnings about ControlNet devices.
• It is not necessary to save the program.
• You do not have to put the processor into Run mode.
