9-8 PLC-5C to PLC-5C Unscheduled Messaging Over Two ControlNet Networks
7. Double-click on N7 in the data file list.

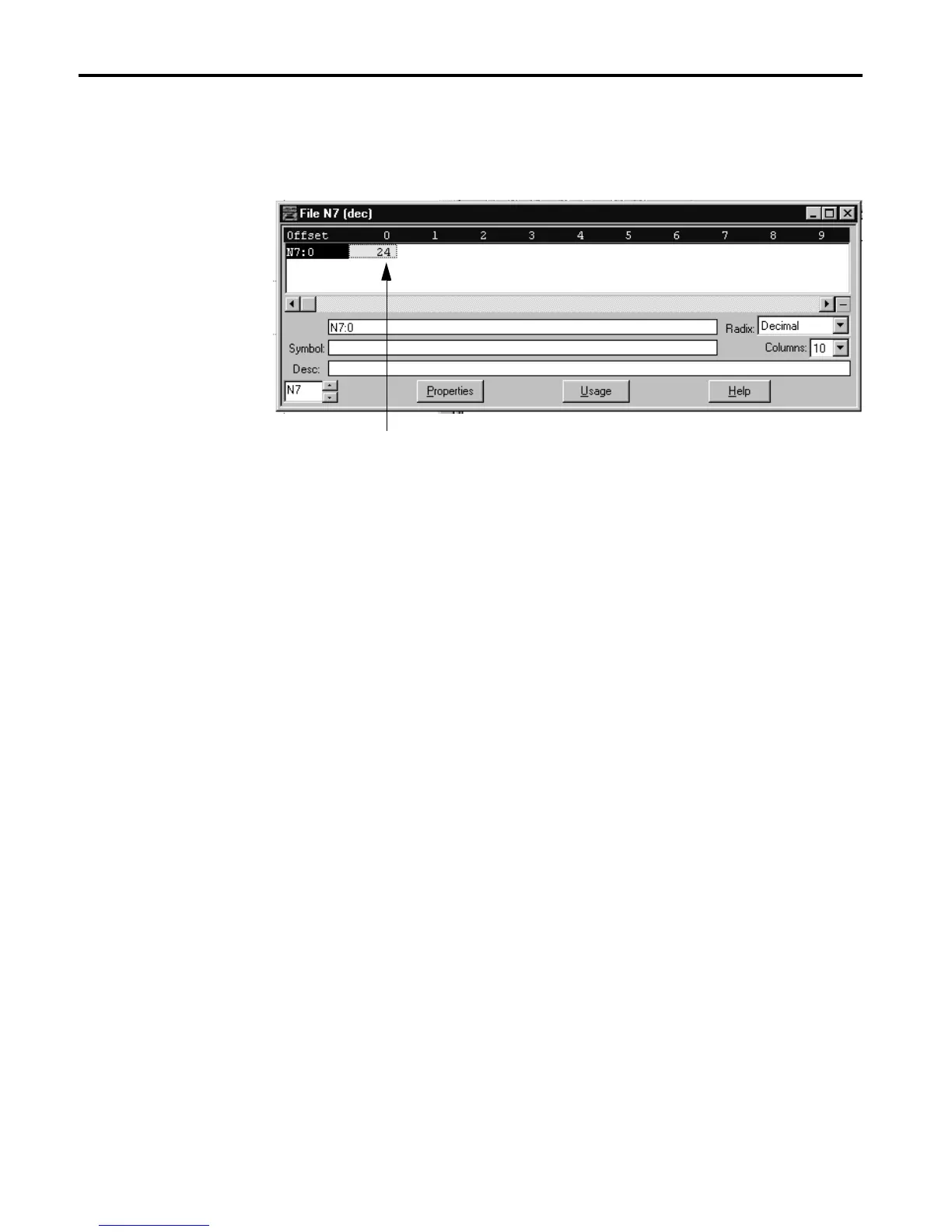

You should see the following screen:
When you see N7:0 being updated at one second intervals the message is
being sent successfully from the PLC-5C processor on ControlNet
network #1, node 11, to the PLC-5C processor on ControlNet network #2,
node 16.
This concludes the PLC-5 to PLC-5 unscheduled messaging over two
ControlNet networks example.
Verify that this value is being updated.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
