Adding an I/O Chassis to an Existing ControlNet Network 11-7

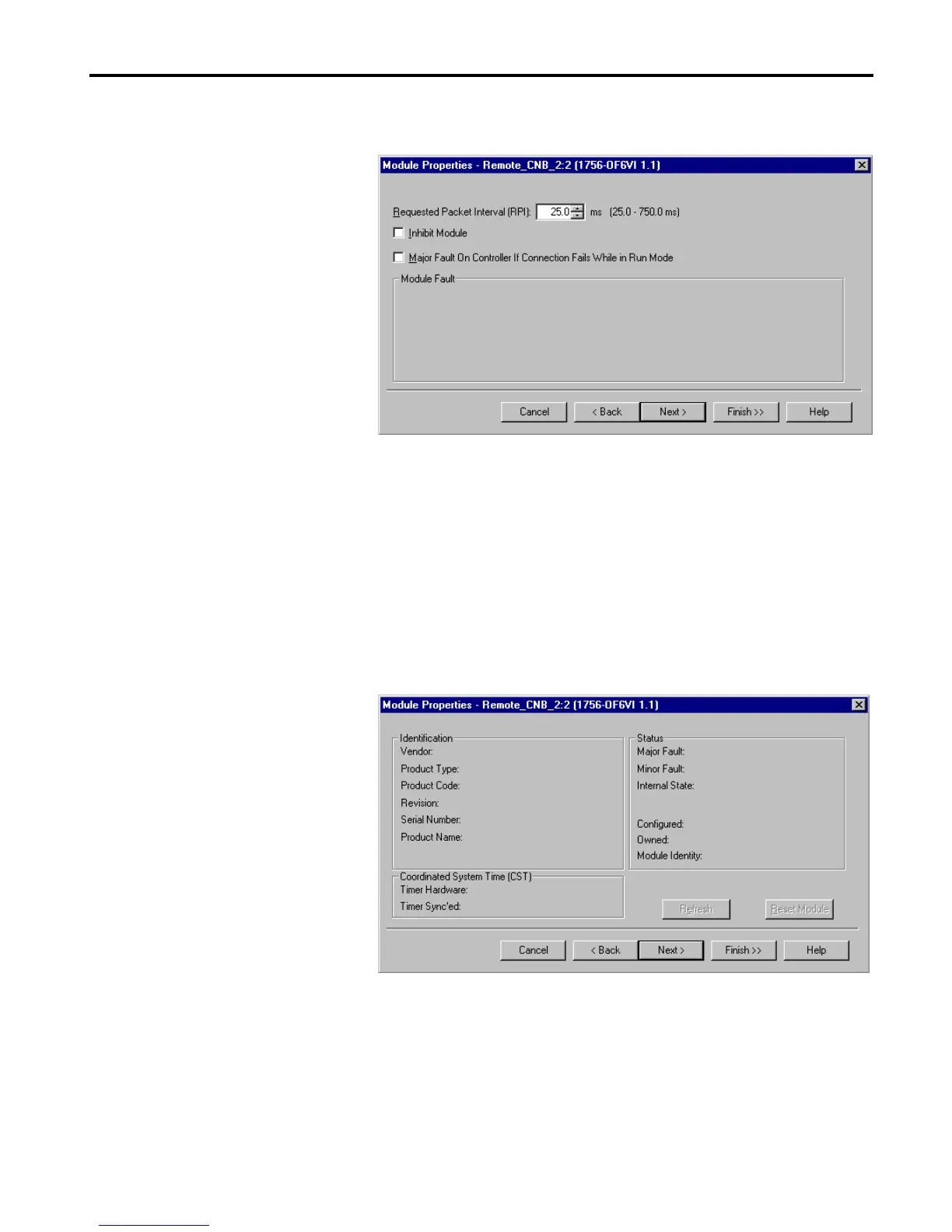

4. Click on the Next button. The following page will appear:
5. Make sure the Requested Packet Interval (RPI) is set to 5ms or greater.
Important:The RPI cannot be set to a rate faster than the network update
time (NUT). The network cannot send data at a rate that is
faster than NUT. Use RSNetWorx for ControlNet to verify or
change the NUT. See page 11-13.
6. Click on Next to move to the next page.
This page is used during online monitoring but not during initial
configuration.
.
7. Click on Next to move to the first Channel Configuration page.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
