Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
11-8 Adding an I/O Chassis to an Existing ControlNet Network

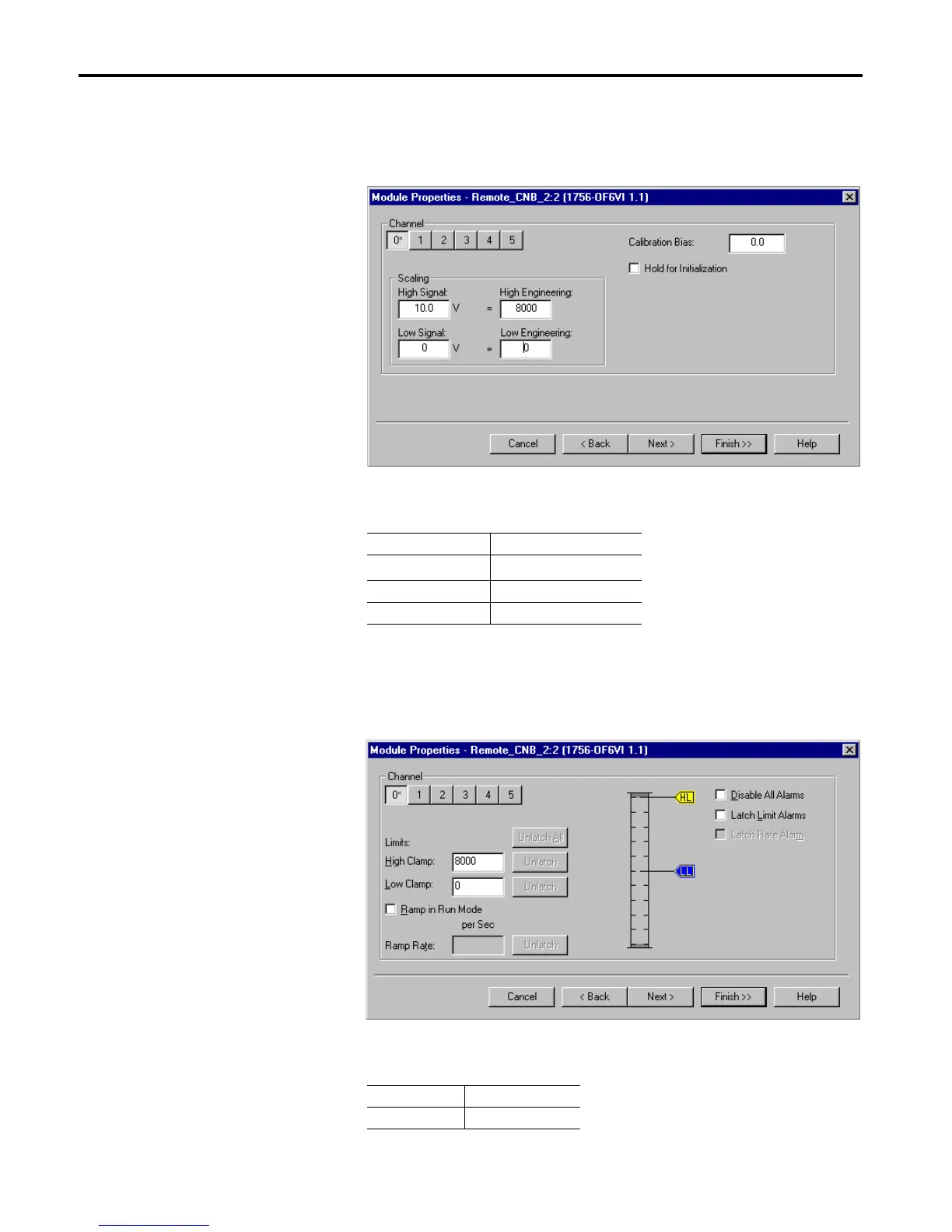

The choices available on the Channel Configuration pages will vary
according to the module being configured. The page below appears for
the 1756-OF6VI module.
8. Click on Channel 0 and enter the following Scaling parameters:
9. Click on Next twice to access the Limits page.
10.Enter the following Limits:
High Signal High Engineering
10.0 V
8000
(1)
(1)
This scaling is selected to use the 13 bit voltage
resolution of the 1756-OF6VI. See specifications in
publication 1756-6.5.9.
Low Signal Low Engineering
0.0 V 0
High Clamp 8000
Low Clamp 0
