1756-6.5.3 - December 1999
Logix5550 to Logix5550 Controller: Scheduled Communication 4-9
Add the Remote CNB Module to the I/O Configuration
Next, you must add the remote 1756-CNB as a “child” of the local
1756-CNB.

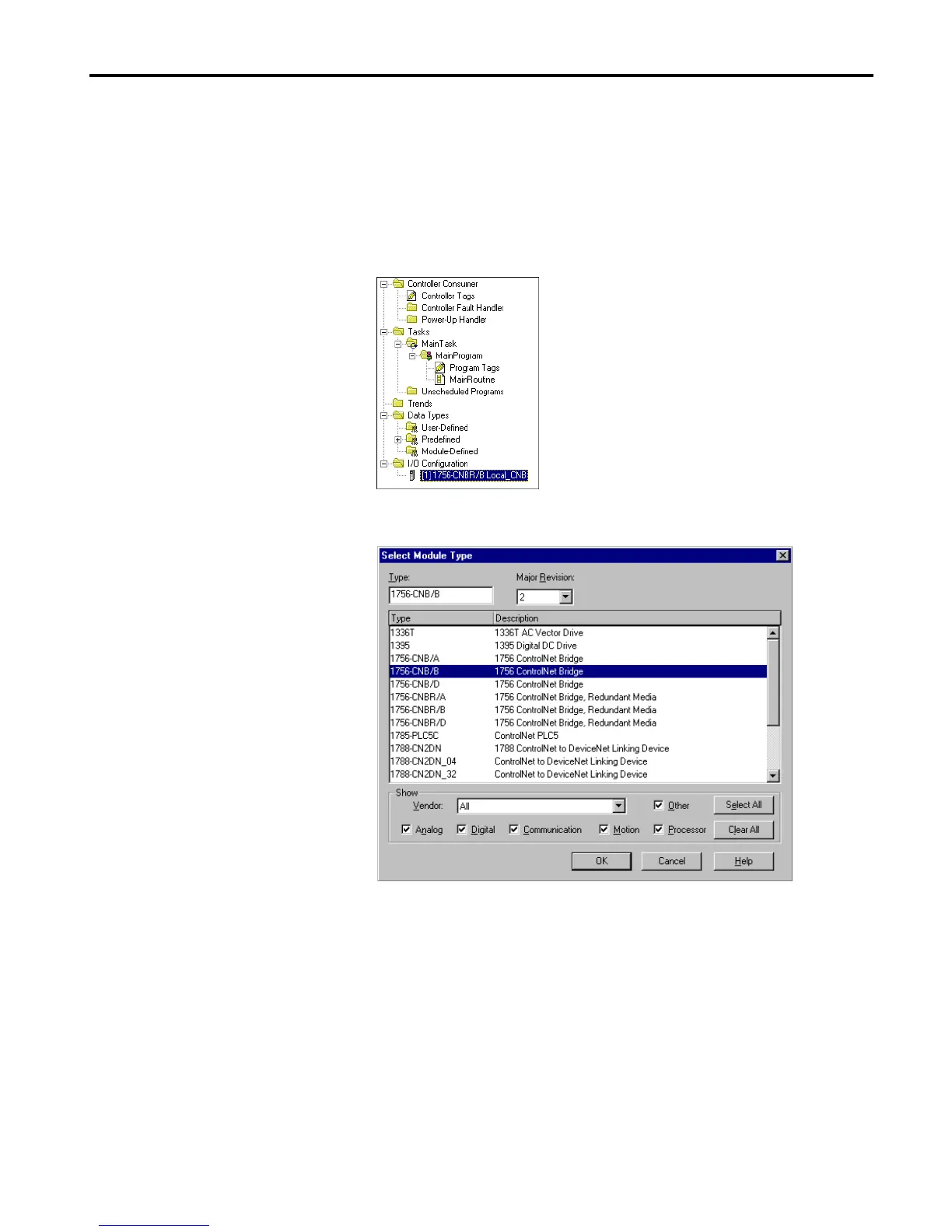

1. In the Project window, right click on the local 1756-CNB and select New
Module.
The Select Module Type window will appear.
2. Select the 1756-CNB/B or 1756-CNBR/B module from the list.
