1756-6.5.3 - December 1999
Logix5550 to Logix5550 Controller: Scheduled Communication 4-11
Add the Remote Controller to the I/O Configuration
You must now add the remote Controller to the I/O Configuration List
under the remote 1756-CNB module.
1. Right click on the remote 1756-CBN or -CNBR under the I/O
Configuration folder and select New Module.

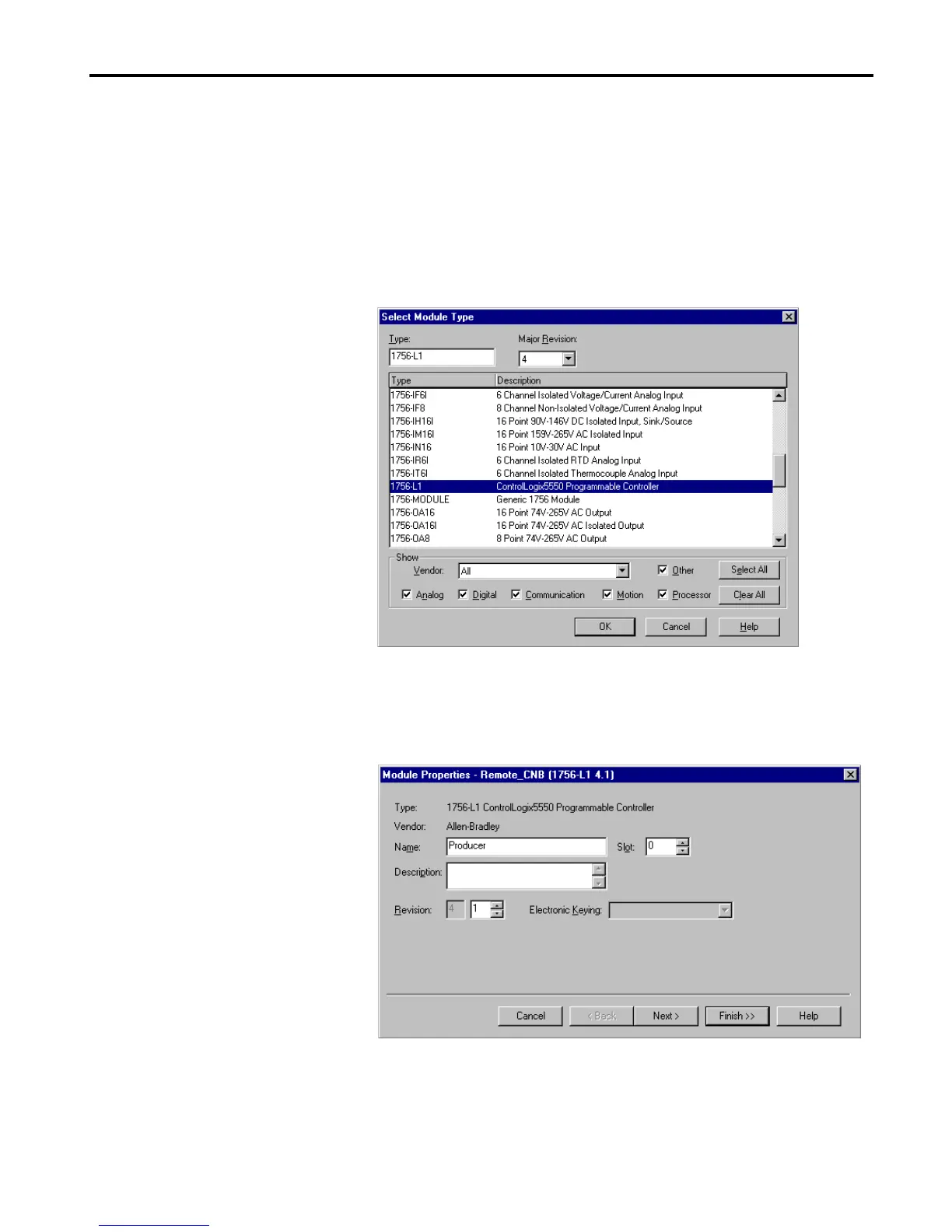

The Select Module Type window will appear.
2. Select the 1756-L1 ControlLogix5550 Programmable Controller
from the list.
The Module Properties window will appear.
