Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
4-14 Logix5550 to Logix5550 Controller: Scheduled Communication

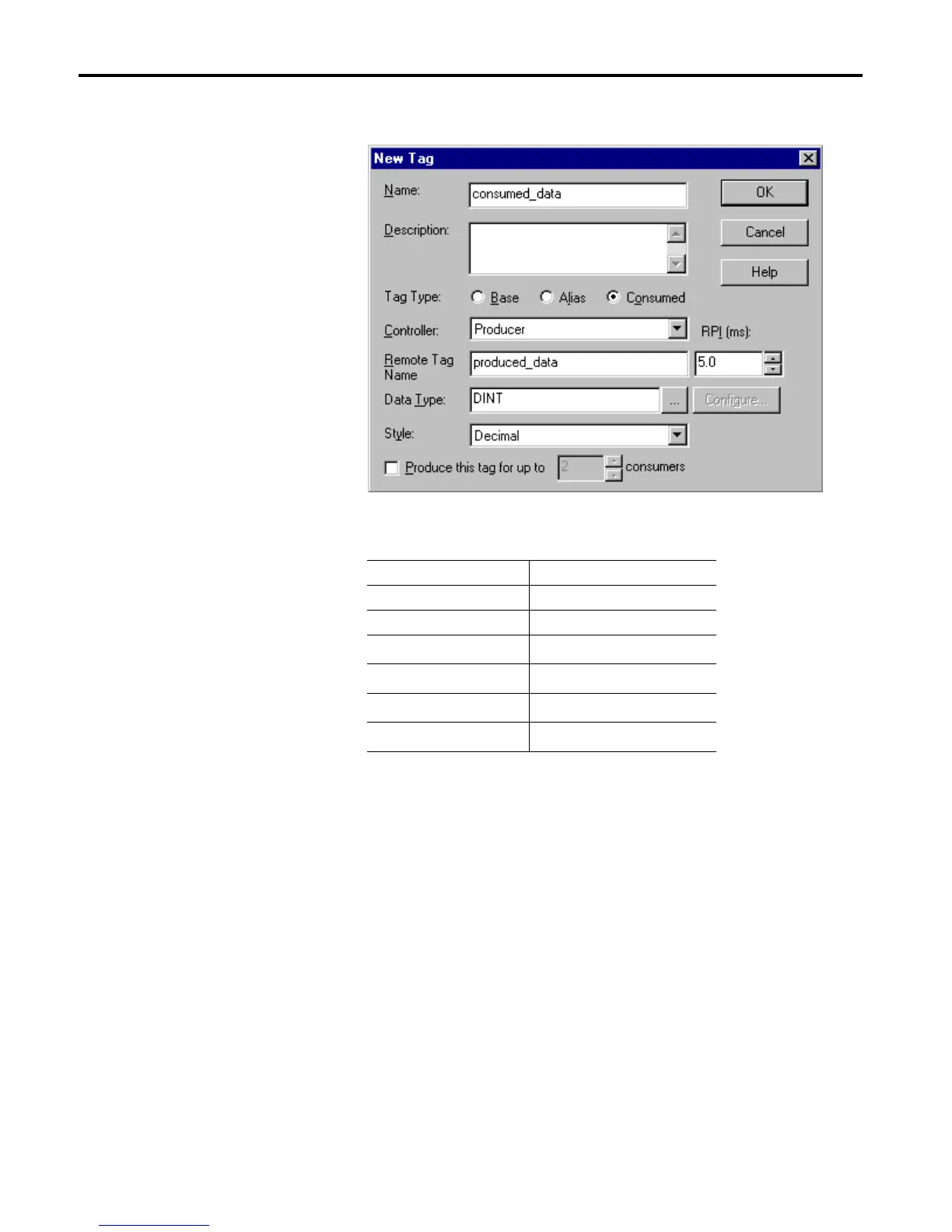

The New Tag window will appear.
5. Enter the following parameters:
6. Click on OK to save the tag configuration.
Name consumed_data
Tag Type Consumed
Controller Producer
Remote Tag
produced_data
(1)
(1)
These parameters must match those in the producer.
Data Type
DINT
(1)
Style
Decimal
(1)
RPI
5ms
(2)
(2)
Remember that the RPI cannot be faster than the NUT. See page 1-7.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
