Chapter 5 Parameter Introductions
106
Description
SS3
SS2
SS1

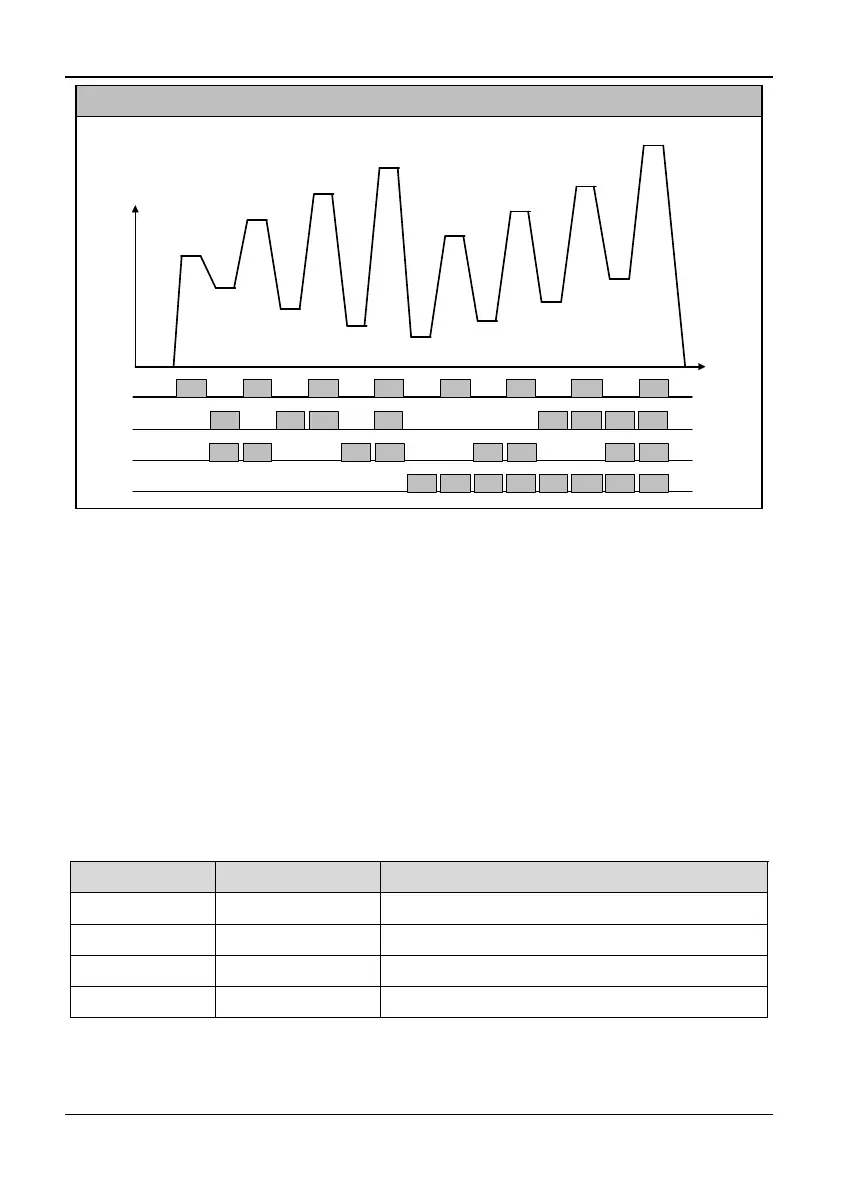

Run Freq.(Hz)
Time(S)
SS4
O N ON O N ONO N ON O N ON
ON O N ON ON ON O N ON ON
ON O N ON ON
ON ONON ONON ONON ON
ON ONON ON
P2.11
P2.12
P2.13
P2.14
P2.15
P2.16
P2.17
P2.18
P2.19
P2.20
P2.21
P2.22
P2.23
P2.24
P2.25
Description
If it has defined S1~S7 and SS1~SS4 function at the same time, S1~S7 is prior.
25: Command channel switch to Terminal control 2
Switch the run command mode to “Terminal control 2”, if this function terminal is
enabled.
30~35: Acc/Dec time
T1~T4: Preset Acc/Dec time separately. If more than one Acc/Dec time function
terminals are enabled, the lower terminal function selection will be prior.
TT1~TT2: Combinations of the two terminals to make Acc/Dec time 1~4, as
shown in Table 5-3-3.
If simultaneity defined T1~T7 and TT1~TT2, T1~T7 is prior.
Table 5-3-3
TT2 TT1 Acc/Dec time selection
OFF OFF Acc/Dec time 1
OFF ON Acc/Dec time 2
ON OFF Acc/Dec time 3
ON ON Acc/Dec time 4
