Chapter 5 Parameter Introductions
158

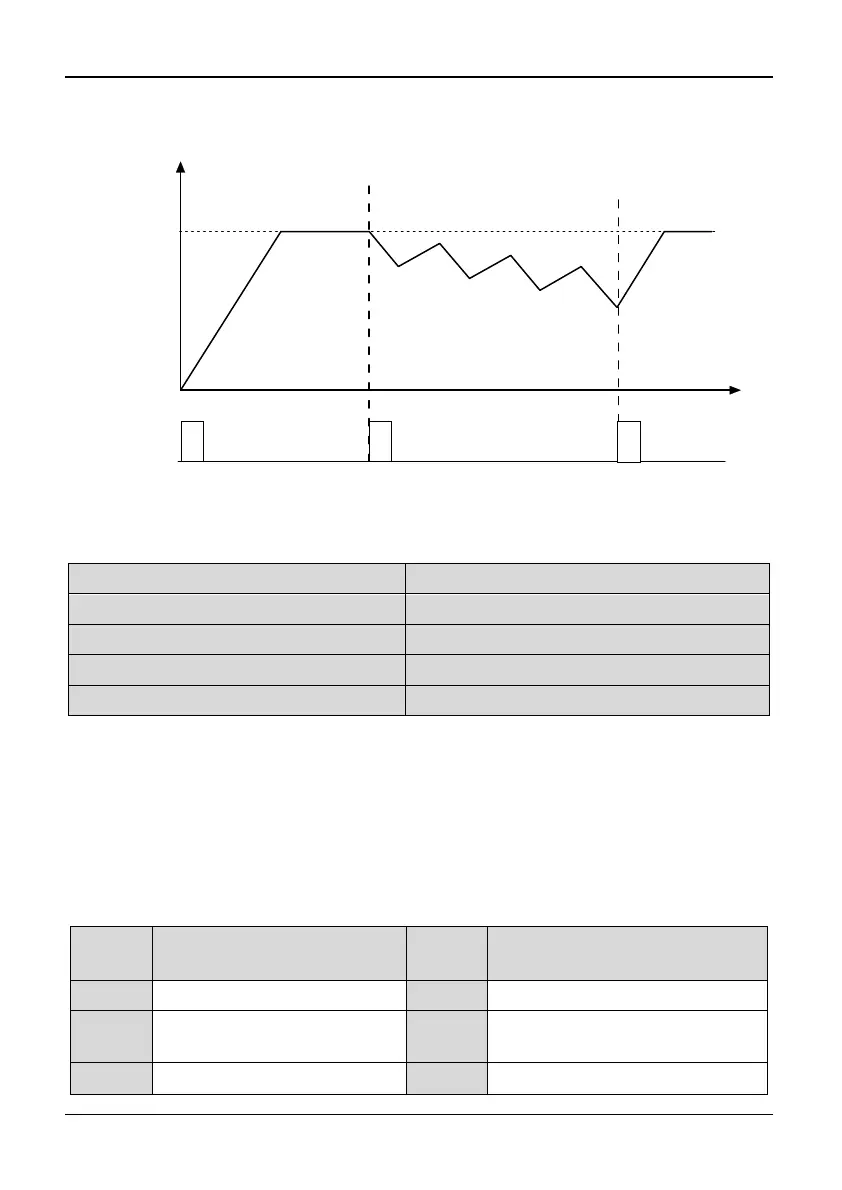

System power off illustration
Output Freq. (Hz)
Reference
Freq.
Power on, Run
Power off
Power on
Time (s)
Fig. 5-13-7 Machine does not shut down after power failure
5.15 Running History Record (Group PE)
PE.00 Type of latest fault
Range: Table 5-14-1【NULL】
PE.01 Output frequency at last fault
Range: 0~Frequency upper limit【0.00Hz】
PE.02 Reference frequency at last fault
Range: 0~Frequency upper limit【0.00Hz】
PE.03 Output current at last fault
Range: 0~2 times of rated current【0.0A】
PE.04 DC bus voltage at last fault
Range: 0~1000V【0V】
Note:
 If faults occur during operating, the inverter stops PWM output immediately, and
accesses to the fault protective state. Moreover, the fault indicator “TRIP” is lit up
and flickered. The operating condition (such as output frequency, reference
frequency, output current, and DC bus voltage etc.) of latest fault and types of the
last 3 faults, could see in PE.01~PE.08. Descriptions of faults are shown in Table
5-14-1:
Table 5-14-1 Fault categories
Fault
code
Fault categories
Fault
code
Fault categories
NULL
No fault Uu1 Bus Under voltage
Uu2 Control circuit Under voltage Uu3
Charging circuit is in poor
condition
OC1 Over current in Acc process OC2 Over current in Dec process
