Appendix 1 Exterior size and mounting size (Unit:mm)
185

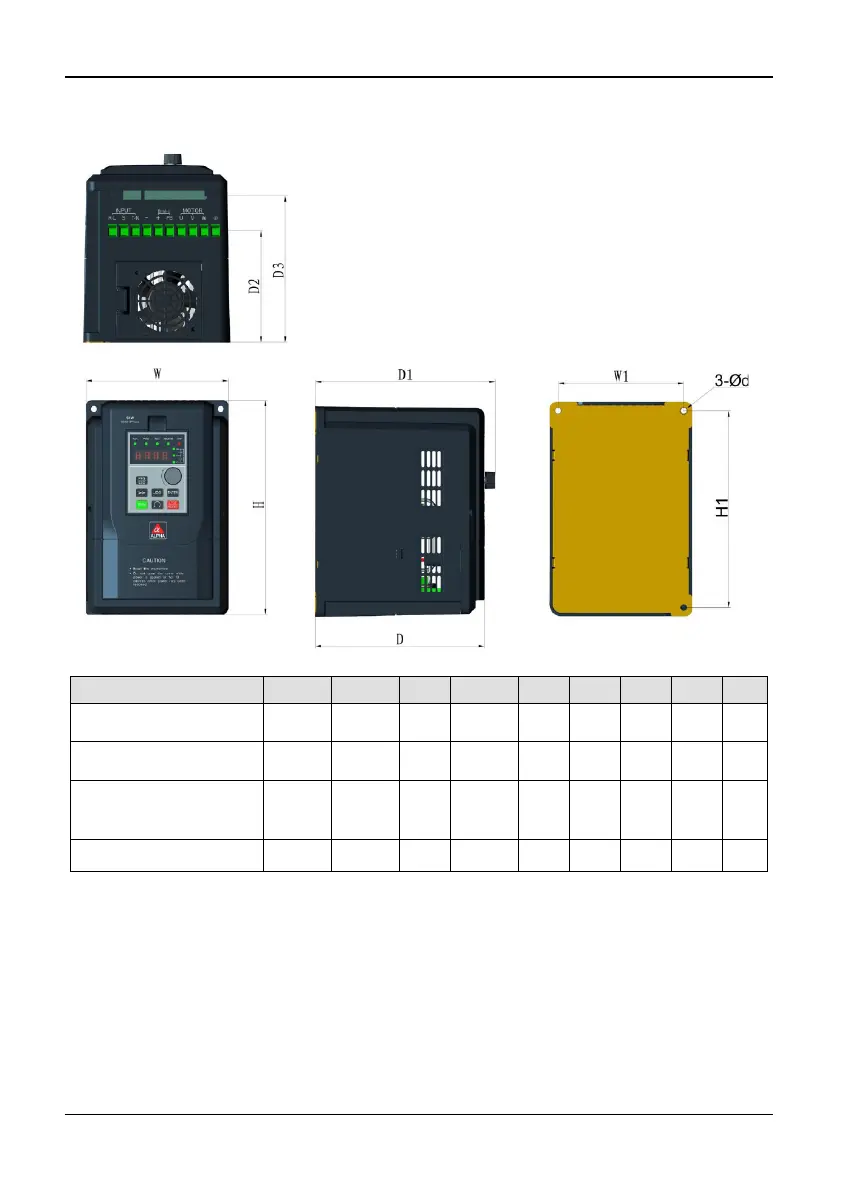

Appendix 1 Exterior Size and Mounting Size (Unit: mm)
S2R4GB~3004GB/35R5PB:
Inverter Model
H H1 W W1 D D1 D2 D3 d
S2R4GB, S2R75GB 141.5 130.5 85 74 113 123 63 88 4.5
S21R5GB, S22R2GB 180 169 115 105 150 158 85 120 4.5
3R75GB/31R5PB,
31R5GB/32R2PB,
32R2GB/3004PB
180 169 115 105 150 158 85 120 4.5
3004GB/35R5PB 195 179.5 130 114.5 157 167 100 130 5.5
